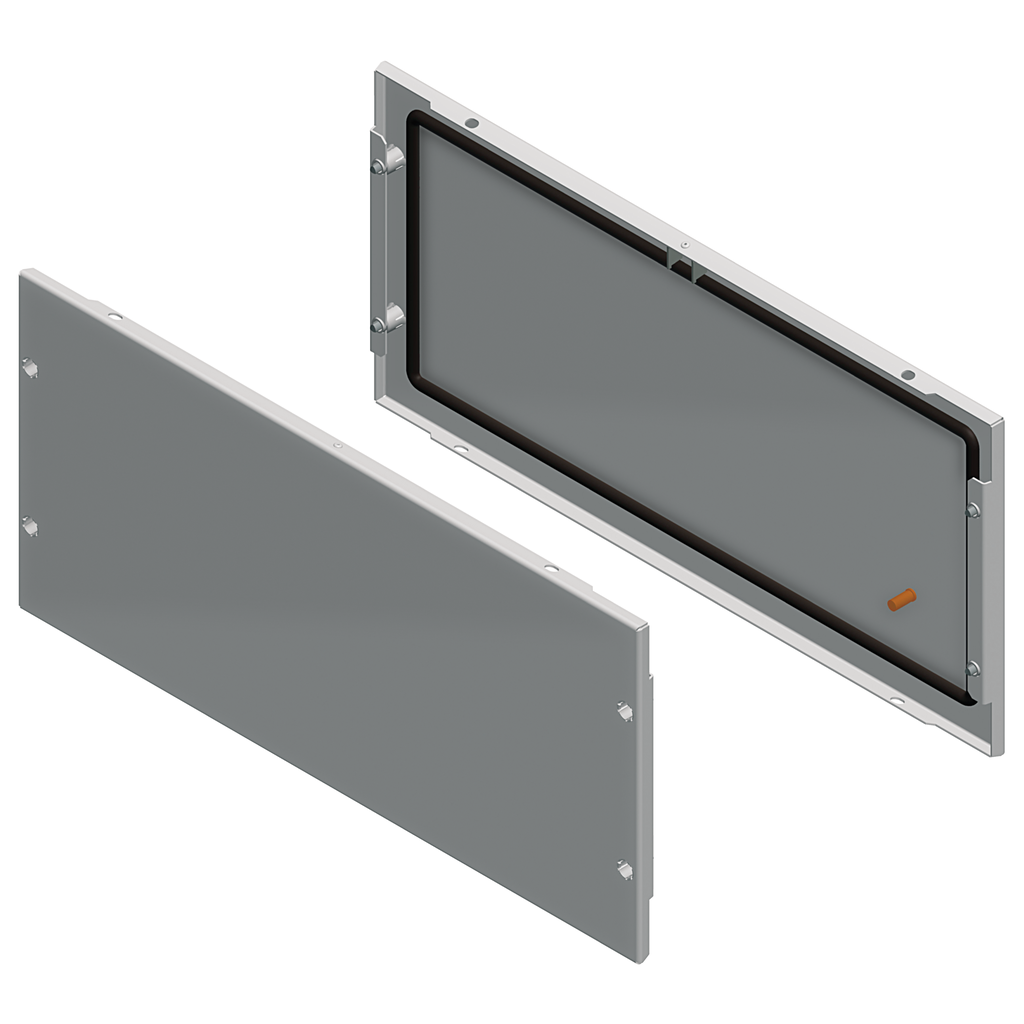

Spacial SF Side panels for busbar chamber - 300x800 mm

• Accessory / Separate Part Category: enclosure accessory
• Quantity Per Set: set of 1
• Product Or Component Type: side panel
• Device Application: multi-purpose
• Range: Spacial
• Mounting Location: sides of top busbar chamber

Contractual warranty

• Warranty: 18 months

Complementary

• Width: nominal 800 mm
• Height: nominal 300 mm
• Range Compatibility: Spacial (Spacial SF)
• Material: steel
• Surface Finish: epoxy-polyester powder
• Color: Gray RAL 7035)
• Device Composition: fixing elements || 2 side panel
• Fixing Mode: by screws captive - from the outside of enclosure

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP110923EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
