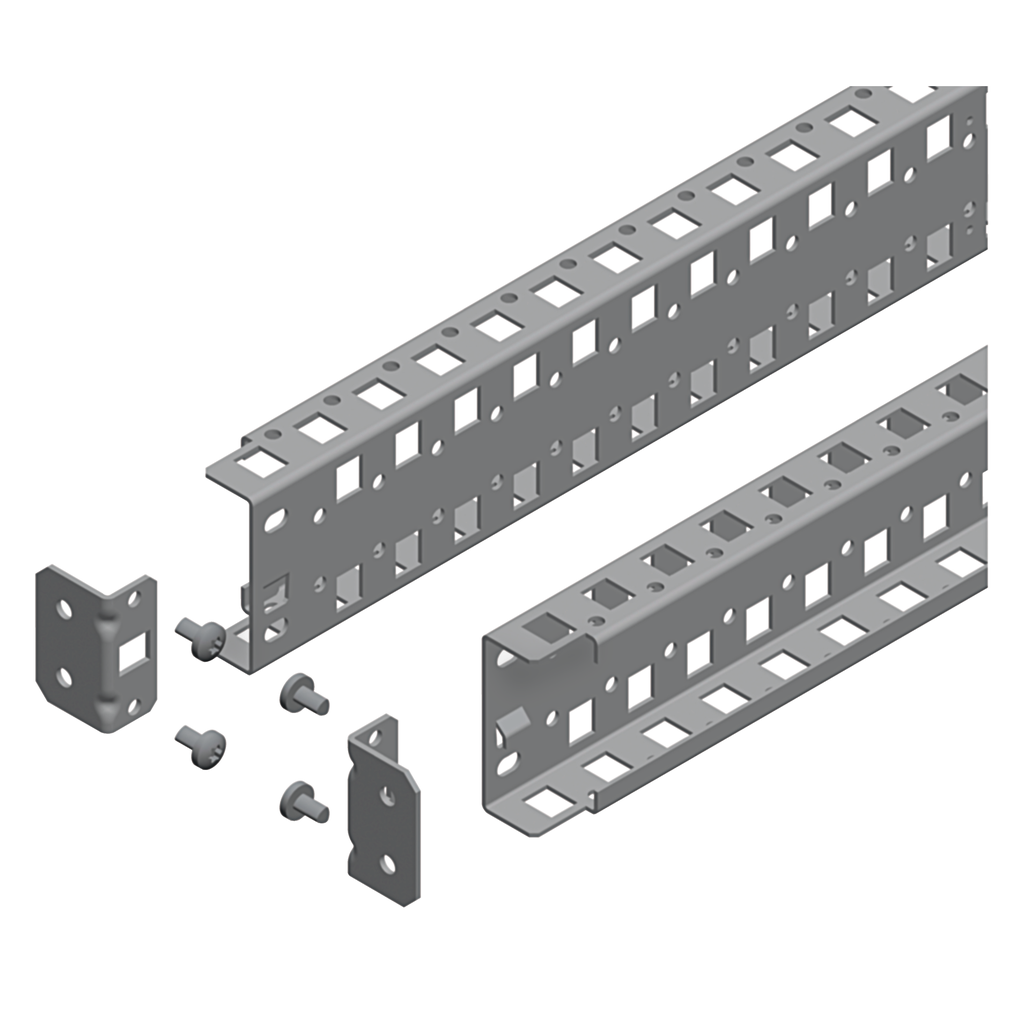

Spacial SF/SM universal cross rails - 65 mm

• Enclosure Nominal Dimensions: H: 2200 mm
• Accessory / Separate Part Category: mounting accessory
• Product Or Component Type: universal cross rail
• Range: Spacial
• Device Application: multi-purpose

Contractual warranty

• Warranty: 18 months

Complementary

• Adjustment: adjustable with a pitch of 25 mm
• Number Of Horizontal Rows: 2
• Range Compatibility: Spacial (Spacial SF)
• Surface Finish: galvanized
• Thickness: 1.5 mm
• Device Composition: fixing elements || 2 cross rails || 4 supports
• Depth: 27 mm
• Fixing Mode: by screws
• Mounting Location: between cross rails || on structure of enclosure
• Installation Direction: vertical
• Width: 65 mm
• Height: nominal 2200 mm || useful 2107 mm
• Mounting Support: adaptation profile, on SM enclosures
• Material: steel
• Quantity Per Set: set of 1

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP110923EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
