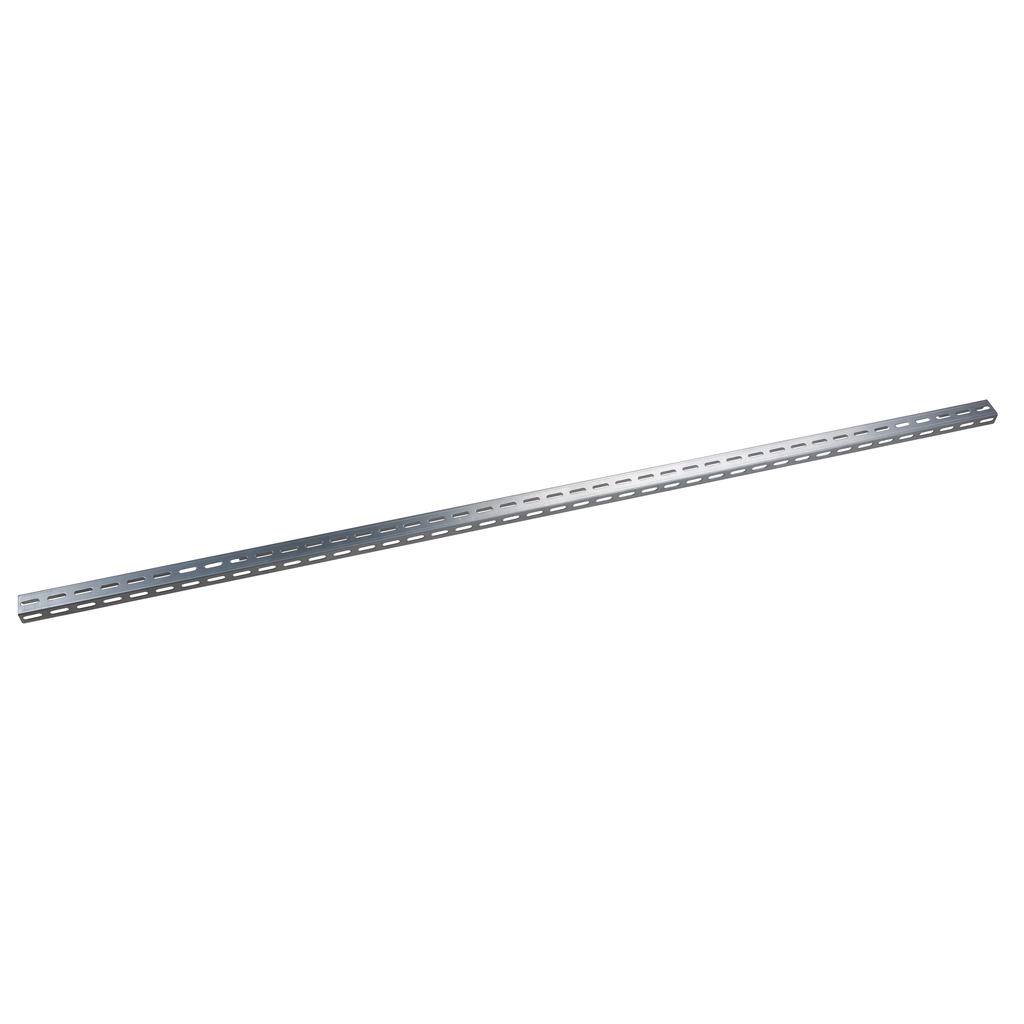

• Set of 2 standard vertical rails for fixing of chassis and cross rails - 2200 mm
1 1

Set of 2 standard vertical rails for fixing of chassis and cross rails - 2200 mm

Set of 2 standard vertical rails for fixing of chassis and cross rails - 2200 mm

Part Number: NSYVR22

UPC:

Your Price:
$138.32 ea
$138.32 ea
Sold out

Available to Order
View full details

Product Description

  • Enclosure Nominal Dimensions: H: 2200 mm
  • Mounting Support: upright fixing bracket || mounting plate fixing bracket
  • Range Compatibility: Spacial (Spacial SF) || Spacial (Spacial SM)
  • Material: galvanised steel
  • Accessory / Separate Part Category: mounting accessory
  • Quantity Per Set: set of 1
  • Product Or Component Type: standard upright
  • Device Composition: 2 upright
  • Device Application: multi-purpose
  • Range: Spacial

Contractual warranty

  • Warranty: 18 months

Complementary

  • Length: 2096 mm
  • Width: 50 mm
  • Height: 2200 mm
  • Thickness: 2 mm
  • Adjustment: adjustable in height every 25 mm || adjustable in height every 50 mm
  • Depth: 30 mm

Offer Sustainability

  • China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
  • Rohs Exemption Information: Yes
  • Mercury Free: Yes
  • Environmental Disclosure: ENVPEP110923EN
  • Sustainable Offer Status: Green Premium product
  • Toxic Heavy Metal Free: Yes
  • Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
  • Reach Regulation: Free of Substances of Very High Concern above the threshold
  • Reach Free Of Svhc: Yes
Spec Sheet

Catalog

Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
Universal Enclosures - Quick Selection Guide (2022 EN) - UEMKCAT0034EN_(web) (pdf)
Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)

CAD

Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_2D-front (dwg)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_2D-back (dxf)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_2D-left (dxf)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_2D-isometric (dxf)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_2D-bottom (dxf)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_2D-right (dxf)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_2D-right (dwg)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_2D-top (dxf)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_3D-simplified (stp)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_2D-front (dxf)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_2D-isometric (dwg)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_2D-back (dwg)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_2D-left (dwg)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_2D-bottom (dwg)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407 (pdf)
Spacial SF - Standard vertical rails for Spacial SF-SM height: 2096 mm - 3D CAD - MCADUE0002407_2D-top (dwg)

Environmental Disclosure

UE_Spacial SF, Steel floor-standing enclosure - ENVPEP110923EN (pdf)
