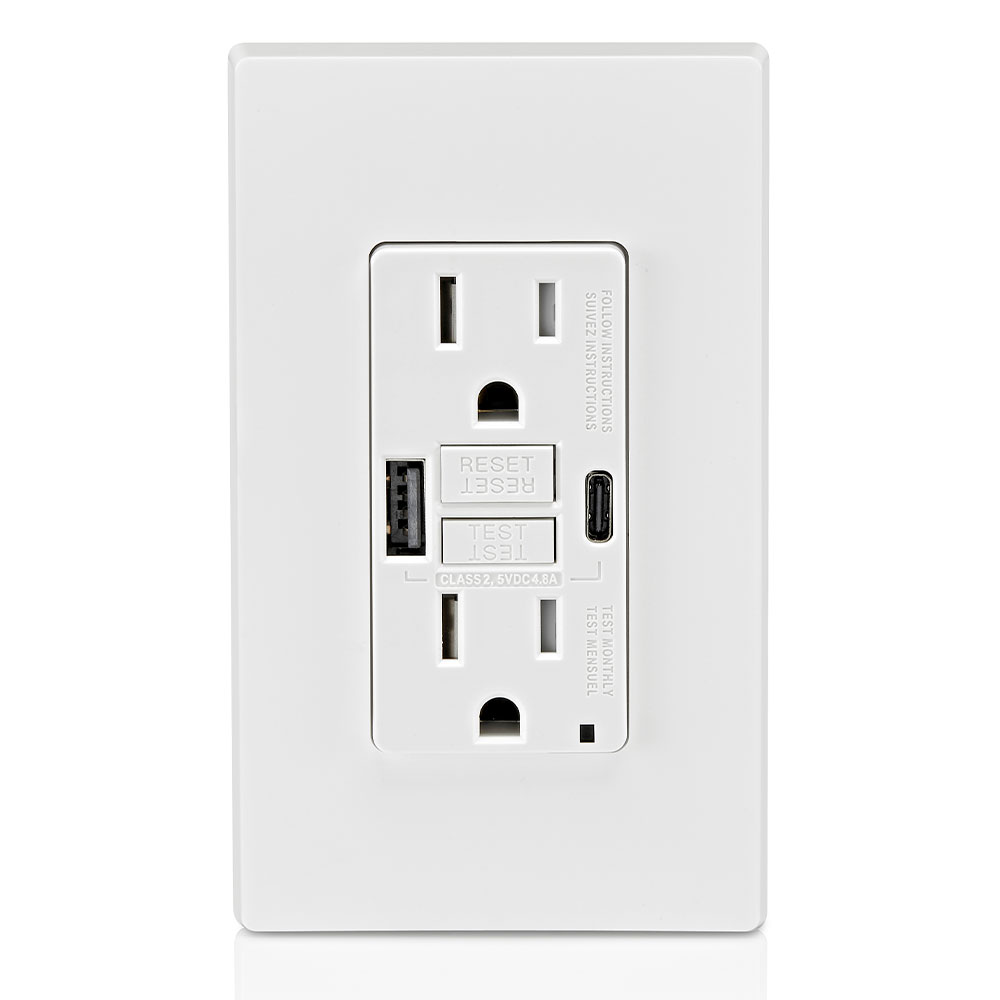

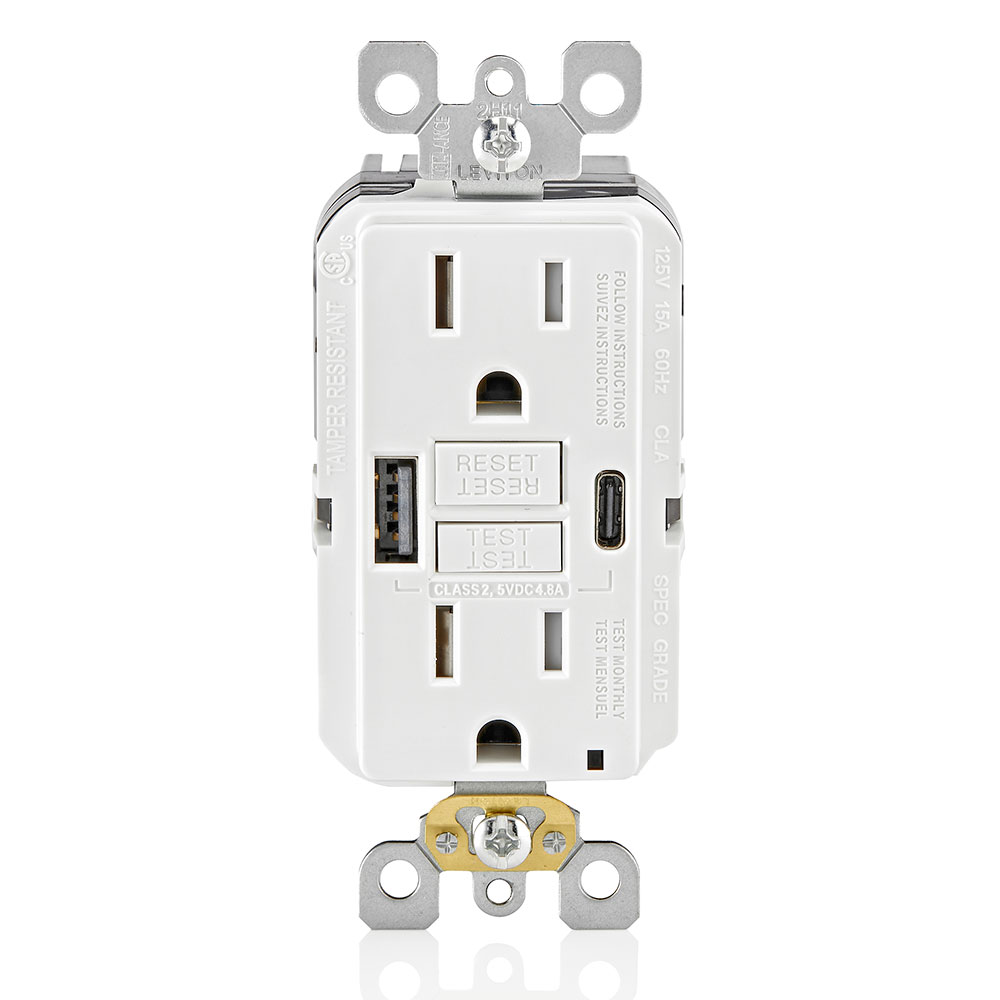

15A SmartlockPro Self-Test GFCI Combination 24W(4.8A) Type A/C USB In-Wall Charger Outlet White

• SAFE – Delivers continuous ground fault protection, automatically self-tests to ensure it can respond to a ground fault
• FAST CHARGING – Smart chip technology provides over 2X the charging power of other GFCI USB outlets for a faster charge
• CODE REQUIRED – Fulfill NEC® requirements anywhere GFCI protection is needed
• SIMPLE – Status indicator light provides simple, intuitive feedback
• INSTALL – Requires extra deep wallbox for installation

Patents

• CA2427366
• CA2515035
• CA2621644
• CA2624409
• CA2677283
• CA2730014
• MX251584
• MX269232
• MX276626
• MX302458
• MX308495
• MX344697
• US10483066
• US7355117
• US7697252
• US7737809
• US7820909
• US7868719
• US8004804
• US8242362
• US8587914
• US9053886
• US9276393

Color Variations

• Black
• Light Almond
• White

• Country of Origin: China

Product Features

• Amperage: 15 A
• Brand: SmartlockPro
• Feature: Self-Test
• NEMA: 5-15R
• Product Type: GFCI/Outlet/USB Combo

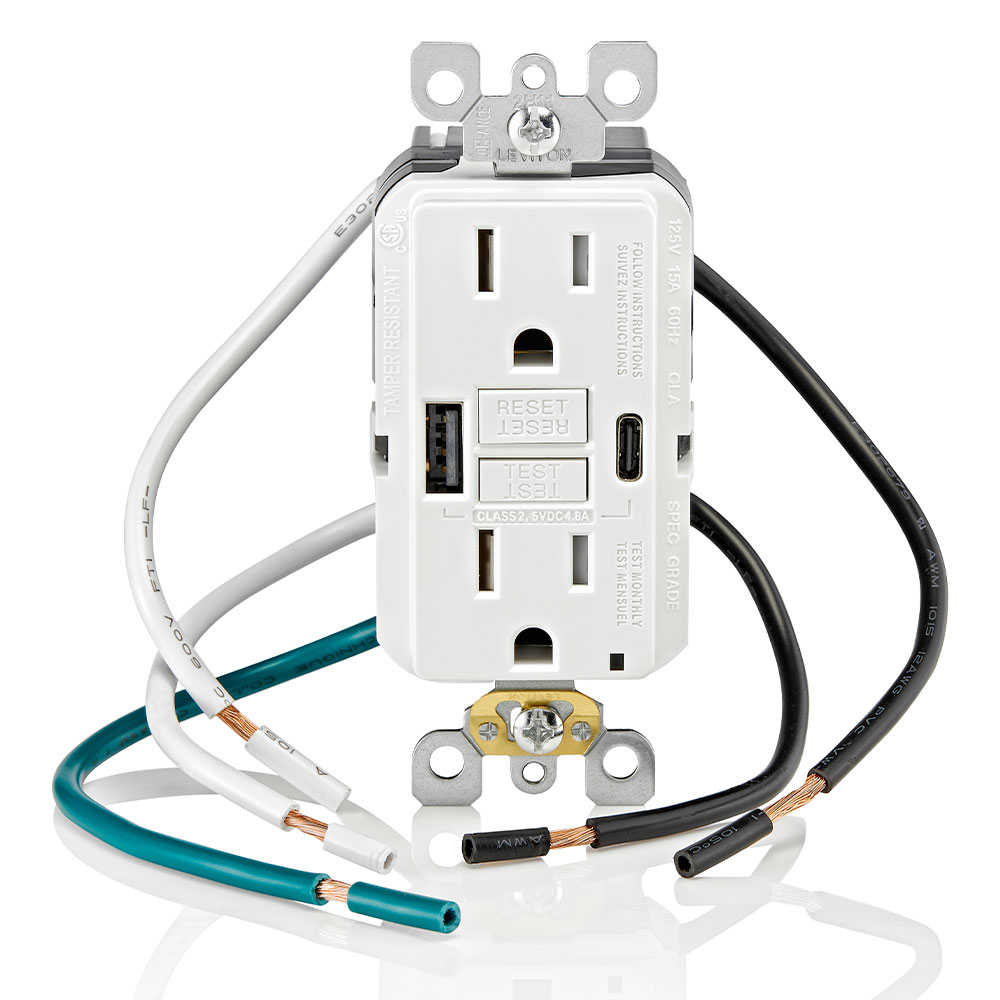

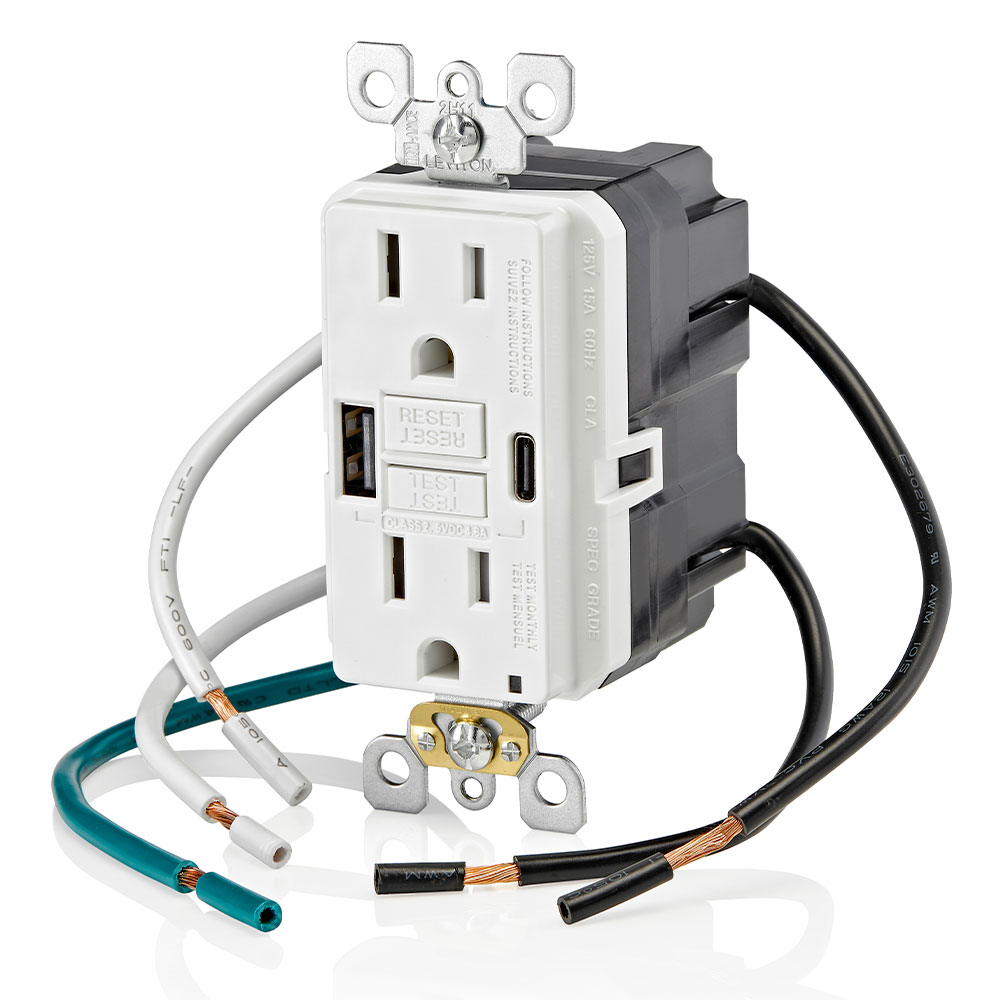

• Termination: Wire leads (12AWG)
• Wallplate: Not included
• Warranty: 2-Year Limited

AC Horsepower Ratings

• At Rated Voltage: 1 HP
• Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06

Material Specifications

• Color: White
• Grade: Residential/Commercial Specification Grade
• Body Material: Thermoplastic
• Cover Material: Thermoplastic
• Face Material: Thermoplastic
• Line Contacts: Brass Double Wipe .031 Thick
• Notes: Wallplate not included
• Product ID: Ratings are permanently marked on device
• Strap Material: Galvanized Steel
• Terminal ID: Green lead - GND. Line and load both have: Black lead - Hot, White lead - Neutral
• Yoke: Zinc-Plated Steel

Environmental Specifications

• Flammability: UL94, 5VA
• Operating Temperature: -10°C to 40°C
• Grounding Wire: Green ground wire

Electrical Specifications

• Grounding: Self-Grounding
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Ratings: 15A - 125V, 4.8A @ 5V

Mechanical Specifications

• Pole: 2
• Tamper Resistant: Yes
• Trip Level: Class A, 5mA plus or minus 1mA
• Type: GFCI/USB A/C Combination
• Voltage: 125 VAC
• Wire: 5

Standards & Certifications

• ANSI: Yes
• CSA C22.2 No. 42: Yes
• CSA-C22.2 No. 144.1-06: Yes
• FCC Part 15: Class B
• Fed Spec WC-596: No
• Listed: cCSAus
• NOM: Yes
• UL 1310: Yes
• UL 498: Yes
