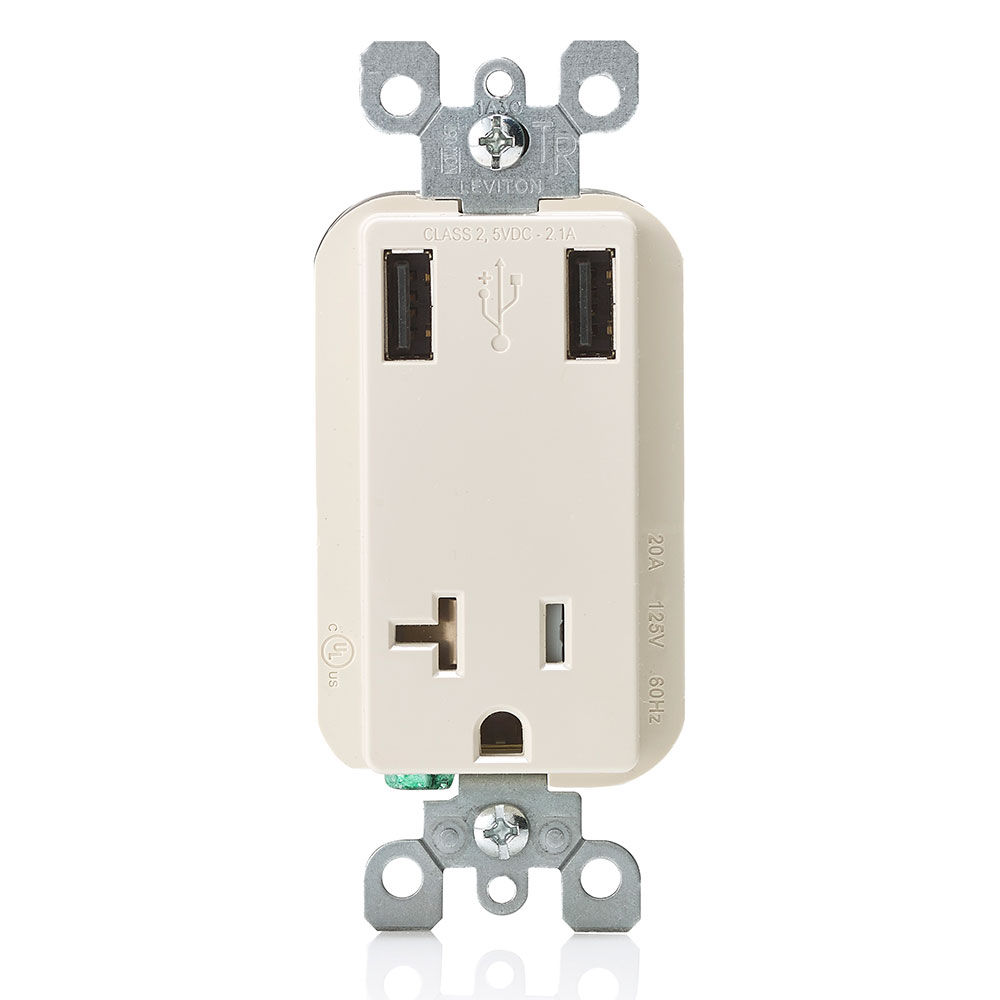

2.1A USB Type-A/Type-A Wall Outlet Charger with 20A Tamper-Resistant Receptacle

• SMART - Built-in smart chip recognizes the individual device’s charging requirement to optimize the charge
• POWERFUL – Two high-powered charging ports with 2.1A of charging power
• CONVENIENT – No more searching for charging adapters! Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlet free for additional power needs
• EASY - Compact design fits in a standard wallbox and works with Decora and Decora Plus screwless wallplates.
• The 20A USB Receptacle is perfect for commercial applications such as hotels, airport cafes, restaurants, office cubicles, college dorm rooms, as well as residential applications kitchens, bedrooms and home offices.
• Smart chip designed for recognizing and optimizing the charging requirements of your device.
• Strategic Placement of ports positioned vertically provides more space for maneuvering and reduces stress on USB cables.
• USB Ports with a combined power of 2.1A.
• More charging capacity means better charging capability.
• High Power Port is ideal for charging Tablets and other high draw devices.
• Compact Design fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other standard Leviton devices.
• Back and Side Wired for easy installation.
• Tamper-Resistant 2011 NEC® Compliant shutter mechanism blocks access to contacts from most foreign objects for improved safety.
• UL Listed.
• Compatible with USB 3.0, 2.0, 1.1 devices

Patents

• US8242362

Color Variations

• Ivory
• Light Almond

• Country of Origin: China

Product Features

• Amperage: 20 A
• Body Material: Thermoplastic
• Brand: Decora
• Color: Light Almond
• Cover Material: Thermoplastic
• FCC Part 15: Class B for Residential Compliance
• Flammability: Rated V-2 per UL 94
• Grounding: Grounding
• Horsepower Rating: 20A-1/2 HP; 20A-1 HP
• NEMA: 5-20R
• NOM: 057
• Operating Temperature: -10°C to 60°C
• Product ID: Stamped on Strap
• Product Type: Outlet/USB Combo
• Ratings: 20A-125V
• Standards and Certifications: cULus
• Strap Material: Steel
• Terminal Accom.: 14-12 AWG
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination: Back & Side
• Torque Range: 12-14 inch pounds
• Type: 2-Port Type-A Combination Receptacle
• Voltage: 125 VAC
• Warranty: 5-Year Limited
