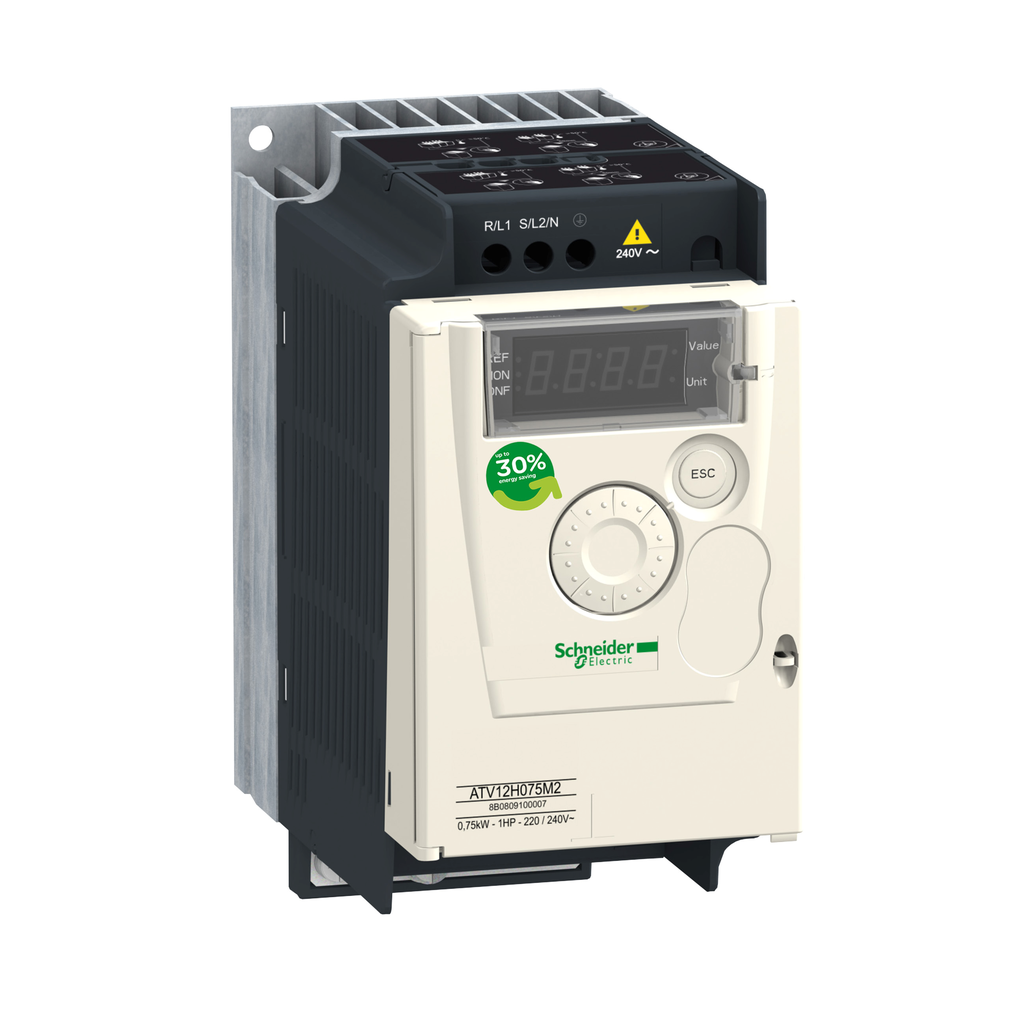

variable speed driveATV12 -0.55kW -0.75hp -200..240V -1ph -w heat sink-lot of 14

• Range Of Product: Altivar 12
• Product Or Component Type: variable speed drive
• Ip Degree Of Protection: IP20
• Motor Power Kw: 0.55 kW
• [Us] Rated Supply Voltage: 200...240 V - 15...10 %
• Communication Port Protocol: Modbus
• Mounting Mode: cabinet mount
• Nominal Output Current: 3.5 A
• Product Specific Application: simple machine
• Emc Filter: integrated
• Maximum Horse Power Rating: 0.75 hp
• Supply Frequency: 50/60 Hz +/- 5 %

Contractual warranty

• Warranty: 18 months

Complementary

• Prospective Line Isc: 1 kA
• Network Frequency: 50-60 Hz
• Maximum Output Frequency: 4 kHz
• With Safety Function Safe Brake Management (Sbc/Sbt): false
• Height: 143 mm
• Power Dissipation In W: natural 34.0 W
• Line Current: 8.0 A 100 V heavy duty) || 6.7 A 120 V heavy duty)
• Acceleration And Deceleration Ramps: U || S || linear from 0 to 999.9 s
• Time Constant: 20 ms +/- 1 ms for reference change
• Maximum Output Voltage: 240 V
• Base Load Current At High Overload: 3.5 A
• Speed Drive Output Frequency: 0.5-400 Hz
• Transmission Frame: RTU
• Asynchronous Motor Control Profile: sensorless flux vector control || quadratic voltage/frequency ratio || voltage/frequency ratio (V/f)
• With Safety Function Safe Speed Monitor (Ssm): false
• 4 Quadrant Operation Possible: false
• Relay Output Number: 1
• Transient Overtorque: 150-170 % of nominal motor torque depending on drive rating and type of motor
• With Safety Function Safe Torque Off (Sto): false
• Data Format: 8 bits, configurable odd, even or no parity
• Relative Symmetric Network Frequency Tolerance: 5 %
• Apparent Power: 1.6 kVA 240 V heavy duty)
• Net Weight: 0.8 kg
• With Safety Function Safe Direction (Sdi): false
• Type Of Polarization: no impedance
• Frequency Resolution: analog input converter A/D, 10 bits || display unit 0.1 Hz
• Switching Frequency: 2...16 kHz adjustable || 4...16 kHz with derating factor
• Maximum Transient Current: 5.3 A 60 s heavy duty) || 5.8 A 2 s heavy duty)
• Communication Service: read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
• Connector Type: 1 RJ45
• Analogue Input Number: 1
• Motor Slip Compensation: adjustable || preset in factory
• Discrete Output Number: 2
• With Safety Function Safe Position (Sp): false
• Analogue Output Number: 1
• Physical Interface: 2-wire RS 485
• Method Of Access: server Modbus serial
• With Safety Function Safely Limited Position (Slp): false
• Insulation: electrical between power and control
• With Safety Function Safe Operating Stop (Sos): false
• Tightening Torque: 0.8 N.m
• Number Of Addresses: 1-247
• Continuous Output Current: 3.5 A 4 kHz
• Speed Range: 1-20
• Discrete Input Number: 4
• Linearity Error: +/- 0.3 % of maximum value analogue input
• With Safety Function Safe Programmable Logic: false
• Brake Chopper Integrated: false
• With Sft Fct Safe Stop 2 (Ss2): false
• Nominal Switching Frequency: 4 kHz
• With Safety Function Safe Stop 1 (Ss1): false
• Quantity Per Set: set of 14
• Width: 72 mm
• Transmission Rate: 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
• Braking To Standstill: by DC injection
• Depth: 131.2 mm
• Protection Type: line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by continuous calculation of I²t
• With Safety Function Safely Limited Speed (Sls): false
• Sampling Duration: 20 ms +/- 1 ms logic input || 10 ms analogue input

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP090201EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI100204EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: NOM || CSA || C-tick || UL || GOST || RCM || KC
• Maximum Deflection Under Vibratory Load (During Operation): 1.5 mm at 2...13 Hz
• Maximum Acceleration Under Shock Impact (During Operation): 150 m/s² at 11 ms
• Standards: UL 508C || UL 618000-5-1 || EN/IEC 61800-5-1 || EN/IEC 61800-3
• Pollution Degree: 2
• Electromagnetic Compatibility: electrical fast transient/burst immunity test level 4 EN/IEC 61000-4-4 || electrostatic discharge immunity test level 3 EN/IEC 61000-4-2 || immunity to conducted disturbances level 3 EN/IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity test level 3 EN/IEC 61000-4-3 || surge immunity test level 3 EN/IEC 61000-4-5 || voltage dips and interruptions immunity test EN/IEC 61000-4-11
• Ambient Air Temperature For Operation: -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
• Vibration Resistance: 1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - EN/IEC 60068-2-6
• Shock Resistance: 15 gn 11 ms EN/IEC 60068-2-27
• Marking: CE
• Maximum Acceleration Under Vibrational Stress (During Operation): 10 m/s² at 13...200 Hz
• Noise Level: 0 dB
• Regulation Loop: adjustable PID regulator
• Ambient Air Temperature For Storage: -25-70 °C
• Relative Humidity: 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
• Assembly Style: with heat sink
• Operating Altitude: > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
• Operating Position: vertical +/- 10 degree
• Overvoltage Category: class III
• Ambient Air Transport Temperature: -25-70 °C
• Environmental Class (During Operation): class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
• Electromagnetic Emission: radiated emissions environment 1 category C2 EN/IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions with integrated EMC filter environment 1 category C2 EN/IEC 61800-3 2...12 kHz shielded motor cable <5 m || conducted emissions with integrated EMC filter environment 1 category C2 EN/IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10 m || conducted emissions with additional EMC filter environment 1 category C1 EN/IEC 61800-3 4...12 kHz shielded motor cable <20 m || conducted emissions with additional EMC filter environment 1 category C2 EN/IEC 61800-3 4...12 kHz shielded motor cable <50 m || conducted emissions with additional EMC filter environment 2 category C3 EN/IEC 61800-3 4...12 kHz shielded motor cable <50 m
