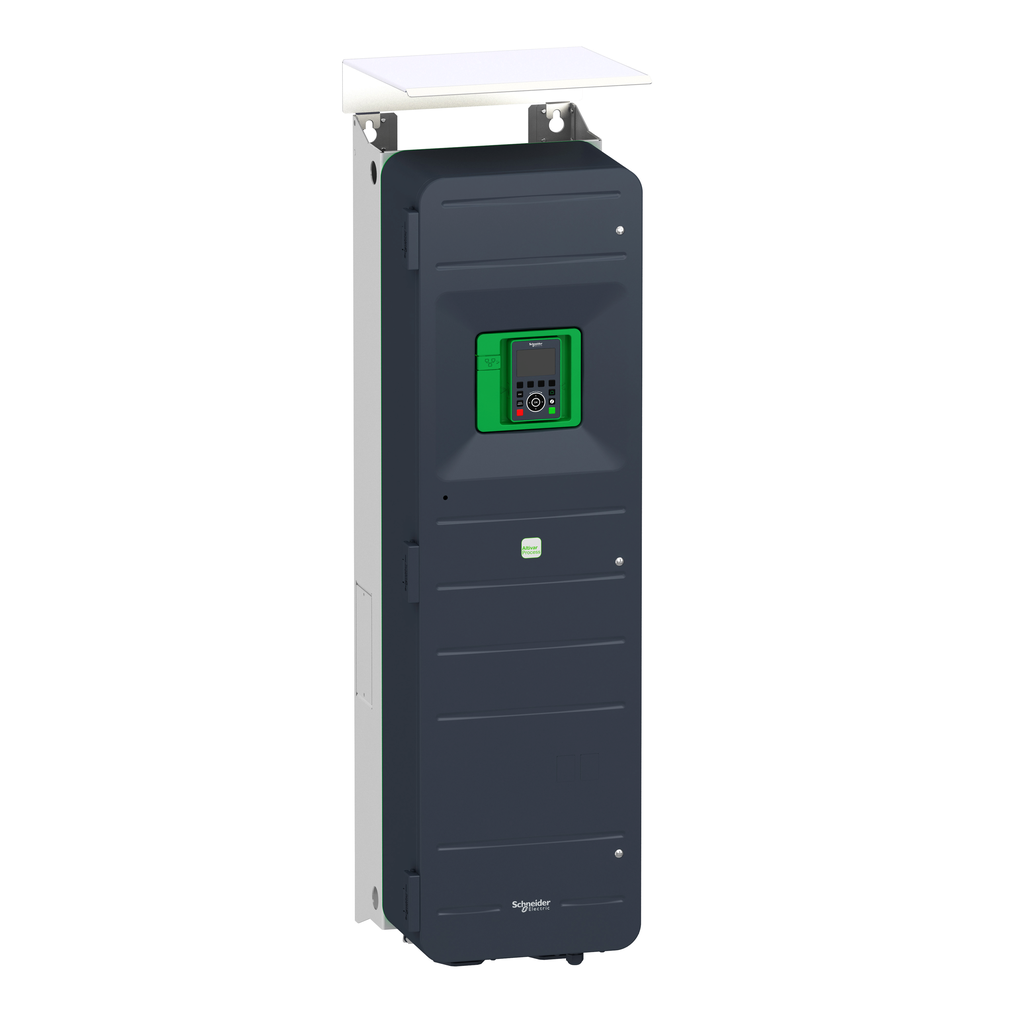

Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55

• Prospective Line Isc: 50 kA
• Product Destination: asynchronous motors || synchronous motors
• Line Current: 135.8 A 480 V normal duty) || 134.3 A 380 V heavy duty) || 118.1 A 480 V heavy duty) || 156.2 A 380 V normal duty)
• Emc Filter: integrated 150 m EN/IEC 61800-3 category C3
• Asynchronous Motor Control Profile: variable torque standard || optimized torque mode
• Variant: standard version
• Product Or Component Type: variable speed drive
• Apparent Power: 98.2 kVA 480 V heavy duty) || 112.9 kVA 480 V normal duty)
• Switching Frequency: 2...8 kHz adjustable || 2.5...8 kHz with derating factor
• Communication Port Protocol: Modbus TCP || Ethernet
• Product Specific Application: process and utilities
• Safety Function: STO (safe torque off) SIL 3
• Maximum Horse Power Rating: 100 hp heavy duty || 125 hp normal duty
• Supply Frequency: 50...60 Hz - 5...5 %
• Option Card: slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A communication module, CANopen SUB-D 9 || slot A communication module, CANopen screw terminals || slot A/slot B digital and analog I/O extension module || slot A/slot B output relay extension module || slot A communication module, Ethernet IP/Modbus TCP/MD-Link || communication module, BACnet MS/TP || communication module, Ethernet Powerlink || slot A communication module, Profibus DP V1
• Degree Of Protection: UL type 12 UL 508C
• Range Of Product: Altivar Process ATV600
• Speed Drive Output Frequency: 0.1-500 Hz
• Ip Degree Of Protection: IP55IEC 60529 || IP55IEC 61800-5-1
• Motor Power Kw: 75 kW heavy duty) || 90 kW normal duty)
• [Us] Rated Supply Voltage: 380...480 V
• [Us] Rated Supply Voltage: 380...480 V - 15...10 %
• Discrete Input Logic: 16 preset speeds
• Type Of Cooling: forced convection
• Continuous Output Current: 145 A 2.5 kHz heavy duty || 173 A 2.5 kHz normal duty
• Nominal Switching Frequency: 2.5 kHz
• Device Short Name: ATV650
• Synchronous Motor Control Profile: synchronous reluctance motor || permanent magnet motor

Complementary

• Discrete Input Logic: positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V
• Analogue Output Type: software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA
• Discrete Output Type: relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V DC 5000 mA
• Maximum Switching Current: relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC
• Exchange Mode: half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
• Phase: 3 phase
• Net Weight: 87 kg
• Type Of Polarization: no impedance
• Relay Output Type: configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles || configurable relay logic R1 fault relay NO/NC 100000 cycles
• Frequency Resolution: analog input 0.012/50 Hz || display unit 0.1 Hz
• Maximum Transient Current: 217.5 A 60 s heavy duty) || 190.3 A 60 s normal duty)
• Analogue Input Number: 3
• Motor Slip Compensation: can be suppressed || automatic whatever the load || adjustable
• Discrete Output Number: 0
• Method Of Access: slave Modbus TCP
• Discrete Input Number: 8
• Local Signalling: for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red) || for local diagnostic 3 LEDs
• Linearity Error: AO1, AO2 +/- 0.2 % analog output || AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
• Number Of Addresses: 1-247 Modbus serial
• Width: 345 mm
• Transmission Rate: 10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
• Depth: 375 mm
• Analogue Input Type: AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
• Sampling Duration: 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output || 2 ms +/- 0.5 ms DI1...DI4) - discrete input
• Electrical Connection: line side screw terminal 95 mm² || motor screw terminal 120 mm² || control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16
• Maximum Output Frequency: 500 kHz
• Height: 1250 mm
• Acceleration And Deceleration Ramps: linear adjustable separately from 0.01...9999 s
• Transmission Frame: RTU
• Relay Output Number: 3
• Data Format: 8 bits, configurable odd, even or no parity
• Accuracy: +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output || +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
• Connector Type: RJ45 on the remote graphic terminal)Modbus serial || RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
• Input Compatibility: DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2 || DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2
• Permissible Temporary Current Boost: 1.5 x In 60 s heavy duty) || 1.1 x In 60 s normal duty)
• Mounting Mode: wall mount
• Analogue Output Number: 2
• Physical Interface: Ethernet || 2-wire RS 485
• Minimum Switching Current: relay output R1, R2, R3 5 mA 24 V DC
• Refresh Time: relay output R1, R2, R3)5 ms +/- 0.5 ms)
• Enclosure Mounting: wall mounted
• Isolation: between power and control terminals
• Output Voltage: <= power supply voltage
• Quantity Per Set: 1
• Braking To Standstill: by DC injection
• Discrete Input Type: DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
• Protection Type: safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || motor phase break drive || overvoltages on the DC bus drive || line supply overvoltage drive || line supply undervoltage drive || line supply phase loss drive || overspeed drive || break on the control circuit drive || thermal protection motor
• Supply: internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection || external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection

Offer Sustainability

• Mercury Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Upgradeability: Upgraded components available
• Rohs Exemption Information: Yes
• Environmental Disclosure: ENVPEP1506002EN
• Sustainable Offer Status: Green Premium product
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile: ENVEOLI1506002EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: CSA || ATEX zone 2/22 || ATEX INERIS || DNV-GL || TÜV || UL
• Standards: EN/IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 508C
• Insulation Resistance: > 1 MOhm 500 V DC for 1 minute to earth
• Shock Resistance: 15 gn 11 ms IEC 60068-2-27
• Vibration Resistance: 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6
• Noise Level: 69.9 dB 86/188/EEC
• Regulation Loop: adjustable PID regulator
• Operating Altitude: 1000...4800 m with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
• Overvoltage Category: III
• Pollution Degree: 3
• Electromagnetic Compatibility: radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 || electrostatic discharge immunity test level 3 IEC 61000-4-2
• Ambient Air Temperature For Operation: 40-50 °C with derating factor) || -15-40 °C without derating)
• Marking: CE
• Pollution Degree: 2 EN/IEC 61800-5-1
• Noise Level: 69.9 dB
• Ambient Air Temperature For Storage: -40-70 °C
• Relative Humidity: 5-95 % without condensation IEC 60068-2-3
• Operating Position: vertical +/- 10 degree
• Maximum Thdi: <48 % from 80...100 % of load IEC 61000-3-12
