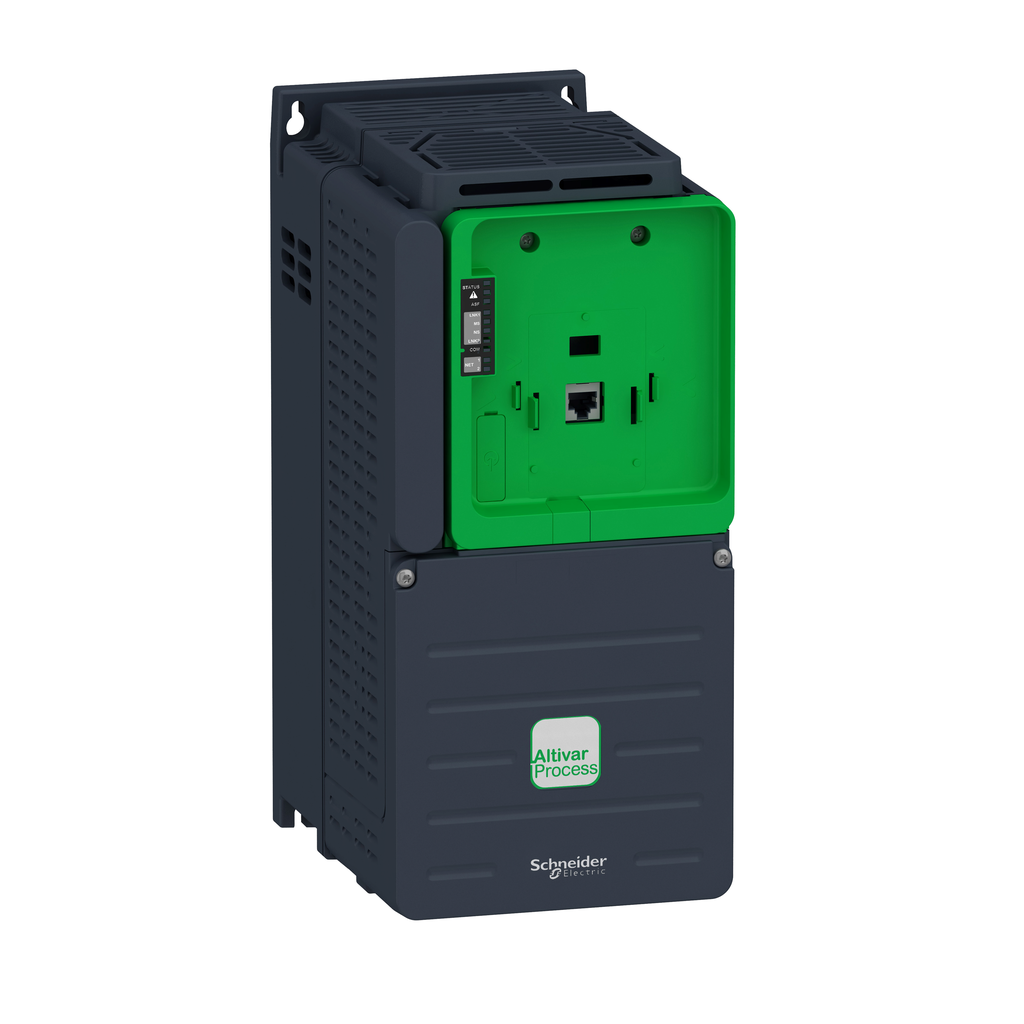

Variable speed drive, Altivar Process ATV900, ATV930, 7,5 kW, 380...480 V, cabinet Integration, IP20, for US

• Prospective Line Isc: 50 kA
• Network Frequency: 50-60 Hz
• Product Destination: asynchronous motors || synchronous motors
• Line Current: 13.8 A 380 V normal duty) || 10.5 A 380 V heavy duty) || 11.9 A 480 V normal duty) || 9.2 A 480 V heavy duty)
• Phase: 3 phase
• Asynchronous Motor Control Profile: variable torque standard || constant torque standard || optimized torque mode
• Variant: standard version || with braking chopper
• Product Or Component Type: variable speed drive
• Apparent Power: 9.9 kVA 480 V normal duty) || 7.6 kVA 480 V heavy duty)
• Ip Degree Of Protection: IP21
• Switching Frequency: 2...16 kHz adjustable || 4...16 kHz with derating factor
• Maximum Transient Current: 19.8 A 60 s normal duty) || 19.1 A 60 s heavy duty)
• Communication Port Protocol: EtherNet/IP || Modbus TCP || Modbus serial
• Product Specific Application: process for industrial
• Maximum Horse Power Rating: 10.0 hp normal duty || 7.5 hp heavy duty
• Option Card: slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module CANopen SUB-D 9 || slot A communication module CANopen screw terminals || slot A/slot B/slot C digital and analog I/O extension module || slot A/slot B/slot C output relay extension module || slot B 5/12 V digital encoder interface module || slot B analog encoder interface module || slot B resolver encoder interface module || communication module Ethernet Powerlink
• Degree Of Protection: UL type 12
• Maximum Output Frequency: 599 Hz
• Range Of Product: Altivar Process ATV900
• Motor Power Kw: 7.5 kW normal duty || 5.5 kW heavy duty
• [Us] Rated Supply Voltage: 380...480 V - 15...10 %
• Mounting Mode: cabinet mount
• Discrete Input Logic: 16 preset speeds
• Continuous Output Current: 16.5 A 4 kHz normal duty || 12.7 A 4 kHz heavy duty
• Nominal Switching Frequency: 4 kHz
• Emc Filter: integrated || with EMC plate option
• Device Application: Industrial Application
• Synchronous Motor Control Profile: permanent magnet motor || synchronous reluctance motor

Complementary

• Discrete Input Logic: positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V
• Power Dissipation In W: forced convection 172 W 380 V 4 kHz || natural convection 44 W 380 V 4 kHz
• Analogue Output Type: software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
• Discrete Output Type: logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA
• Maximum Switching Current: relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC || relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC || relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
• 4 Quadrant Operation Possible: true
• Exchange Mode: half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
• Local Signalling: local diagnostic 3 LED mono/dual colour) || embedded communication status 5 LED dual colour) || communication module status 2 LED dual colour) || presence of voltage 1 LED red)
• Data Format: 8 bits, configurable odd, even or no parity Modbus serial
• Relative Symmetric Network Frequency Tolerance: 5 %
• Net Weight: 6.9 kg
• With Safety Function Safe Direction (Sdi): false
• Type Of Polarization: no impedance
• Relay Output Type: configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles
• Analogue Input Number: 3
• Motor Slip Compensation: can be suppressed || adjustable || not available in permanent magnet motor law || automatic whatever the load
• Discrete Output Number: 2
• With Safety Function Safe Position (Sp): false
• Transmission Rate: 10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial
• Method Of Access: slave Modbus TCP
• With Safety Function Safely Limited Position (Slp): false
• With Safety Function Safe Operating Stop (Sos): false
• Number Of Addresses: 1-247
• Discrete Input Number: 10
• Linearity Error: AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output
• Number Of Addresses: 1-247 Modbus serial
• With Sft Fct Safe Stop 2 (Ss2): false
• With Safety Function Safe Stop 1 (Ss1): true
• Width: 155 mm
• Transmission Rate: 10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s
• Depth: 225 mm
• Analogue Input Type: AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
• Sampling Duration: 2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output
• Electrical Connection: control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 4...6 mm² AWG 12...AWG 10 || motor screw terminal 6...10 mm² AWG 10...AWG 8 || DC bus screw terminal 4...6 mm² AWG 12...AWG 10
• With Safety Function Safe Brake Management (Sbc/Sbt): true
• Height: 345 mm
• Acceleration And Deceleration Ramps: linear adjustable separately from 0.01...9999 s
• Maximum Output Voltage: 480.0 V
• Base Load Current At High Overload: 12.7 A
• Transmission Frame: RTU
• With Safety Function Safe Speed Monitor (Ssm): false
• Relay Output Number: 3
• With Safety Function Safe Torque Off (Sto): true
• Data Format: 8 bits, configurable odd, even or no parity
• Base Load Current At Low Overload: 16.5 A
• Accuracy: +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
• Input Compatibility: DI1...DI8 discrete input level 1 PLC EN/IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
• Connector Type: 2 RJ45 || 1 RJ45
• Analogue Output Number: 2
• Physical Interface: Ethernet || 2-wire RS 485
• Minimum Switching Current: relay output R1, R2, R3 5 mA 24 V DC
• Refresh Time: relay output R1, R2, R3)5 ms +/- 0.5 ms)
• Isolation: between power and control terminals
• With Safety Function Safe Programmable Logic: false
• Brake Chopper Integrated: true
• Quantity Per Set: 1
• Type Of Polarization: no impedance Modbus serial
• Braking To Standstill: by DC injection
• Discrete Input Type: DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
• Protection Type: thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || motor phase break drive || overvoltages on the DC bus drive || line supply overvoltage drive || line supply undervoltage drive || line supply phase loss drive || overspeed drive || break on the control circuit drive
• Supply: external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
• With Safety Function Safely Limited Speed (Sls): true

Offer Sustainability

• Mercury Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Upgradeability: Upgraded components available
• Rohs Exemption Information: Yes
• Environmental Disclosure: ENVPEP2007010EN
• Sustainable Offer Status: Green Premium product
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile: ENVEOLI2007010EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: CSA || UL || TÜV
• Maximum Deflection Under Vibratory Load (During Operation): 1.5 mm at 2...13 Hz
• Standards: UL 508C || EN/IEC 61800-3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1
• Insulation Resistance: > 1 MOhm 500 V DC for 1 minute to earth
• Shock Resistance: 15 gn 11 ms IEC 60068-2-27
• Environmental Characteristic: chemical pollution resistance class 3C3 EN/IEC 60721-3-3 || dust pollution resistance class 3S3 EN/IEC 60721-3-3
• Vibration Resistance: 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
• Noise Level: 56 dB 86/188/EEC
• Regulation Loop: adjustable PID regulator
• Permitted Relative Humidity (During Operation): class 3K5 according to EN 60721-3
• Operating Altitude: <= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m
• Overvoltage Category: III
• Environmental Class (During Operation): class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
• Maximum Acceleration Under Shock Impact (During Operation): 150 m/s² at 11 ms
• Pollution Degree: 2
• Electromagnetic Compatibility: electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6
• Ambient Air Temperature For Operation: -15-50 °C without derating) || 50-60 °C with derating factor)
• Volume Of Cooling Air: 103 m3/h
• Marking: CE
• Maximum Acceleration Under Vibrational Stress (During Operation): 10 m/s² at 13...200 Hz
• Noise Level: 56 dB
• Ambient Air Temperature For Storage: -40-70 °C
• Relative Humidity: 5-95 % without condensation IEC 60068-2-3
• Assembly Style: with heat sink
• Operating Position: vertical +/- 10 degree
• Maximum Thdi: <48 % from 80...100 % of load IEC 61000-3-12
• Ambient Air Transport Temperature: -40-70 °C
