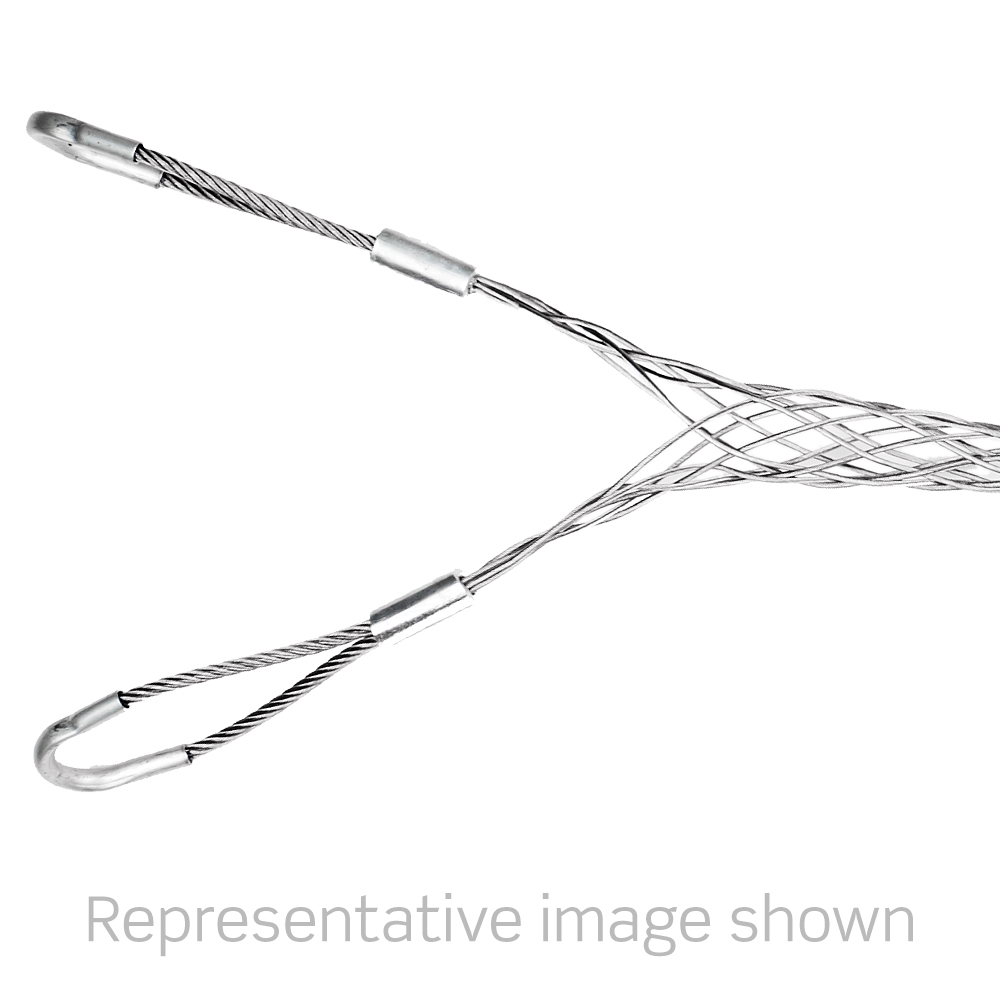

Support Grip, 1.75-2.00"

• Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
• Support grips distribute the weight of the vertical or sloping runs of electrical and fiber optic cable, metal rods, tubing or hose over the entire length of the grip so the cable is not damaged
• Use of support grips avoids stress on cable connections and provides needed support for vertically hung cables

• Country of Origin: India
• RoHS Compliant: Yes

Material Specifications

• Mesh Material: 304 SS

Mechanical Specifications

• Approx. Break Strength: 3230 lbs (1465 kg)
• Bale Length: 6 in (210 mm)
• Cable Range: 1.75 - 2.00 in (44 - 50 mm)
• Duty: Standard
• Eye Type: Double
• Mesh Length: 21 in (509 mm)
• Mesh Style: Closed
• Standards and Certifications: UL
• Weave: Single Weave
• Workload Safety Factor (lbs): 323 lbs (146.5 kg)

Product Features

• Device Type: Support Grip

Warranty

• Warranty: 1-Year Limited
