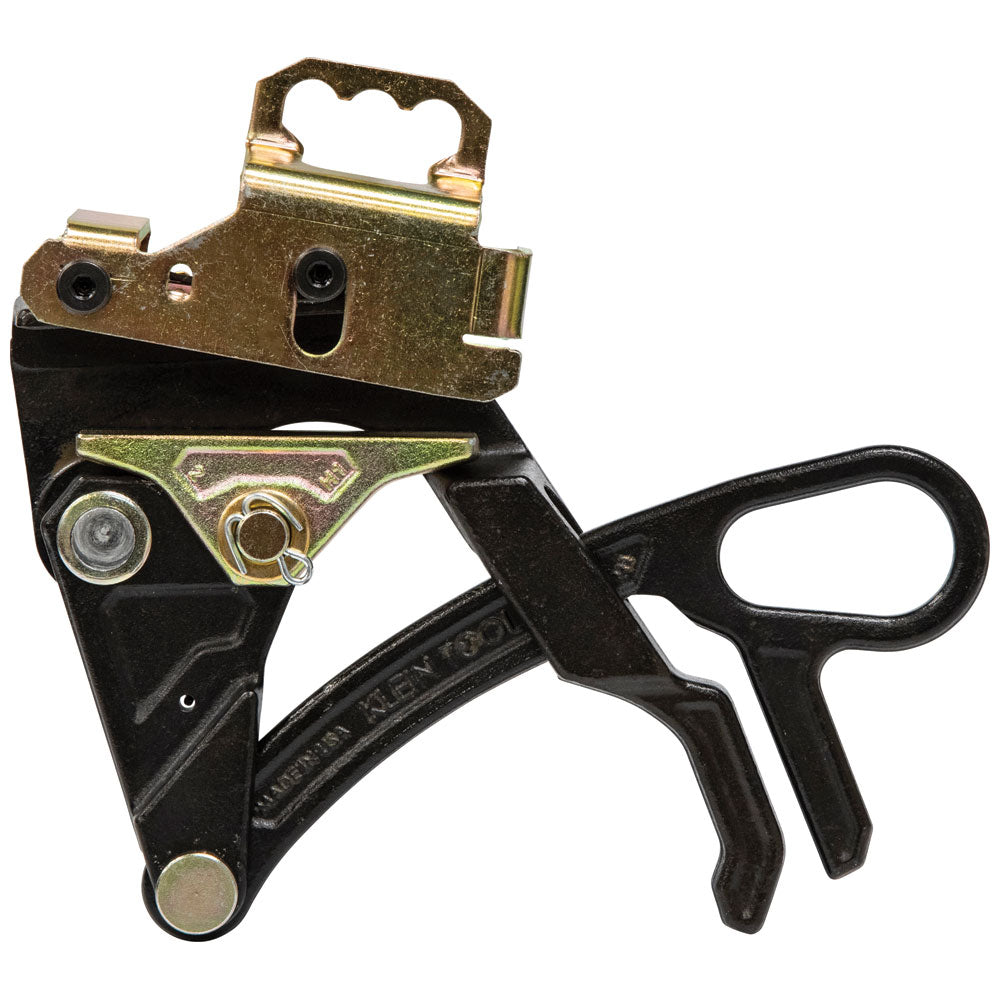

Wide Range Distribution Grip with Hot Latch

Versatile, one-handed grip holds a wide range of cable sizes pulling No. 6 Copper to No. 477 ACSR. 20-Percent lighter than the Klein's Cat. No. KT4500 grip with easy, one-handed actuation. Design includes a latch to help maintain cable position in grip jaws. Made in the USA, this grip has a maximum safe load of 5000-Pound.

• Wide Range Distribution Grip pulls No. 6 Copper to No. 477 ACSR 0.162 to 0.883-Inch (4.11 to 22.42 mm) cable
• 20-Percent lighter than the Cat. No. KT4500 grip
• One-handed design makes for easier actuation
• Made in the USA
• Spring closes grip on cable to hold the initial position
• Includes a latch to help maintain cable position in the grip jaw
• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
• Max Safe Load of 5000-Pound (2268 kg)
• Patent pending design

• Warning: Grips are to be used for temporary installation, not for permanent anchorage.
• Warning: When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Warning: Do not exceed rated capacity.
• Warning: Do not exceed rated capacity.
• Warning: Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Weight: 3.2 lb (1.5 kg)
• Overall Length: 10.25" (26 cm)
• Locking Handle: Y
• Cable Type: Bare Copper, Aluminum, ACSR
• Hot Latch: Y
• Material: Steel
• Spring: Y
• Jaw Type: Round
• Overall Height: 8" (20.3 cm)
• Swing Latch: N
• Application: Wire Pulling
• Overall Width: 1.75" (4.4 cm)
• Jaw Length: 3.31" (8.4 cm)
• Special Features: Hot Latch
• Maximum Safe Load: 5000 lb (2268 kg)
• Cable Diameter: 0.162 to 0.883" (4.11 to 22.42 mm)
• Type: Parallel Jaw Grip
