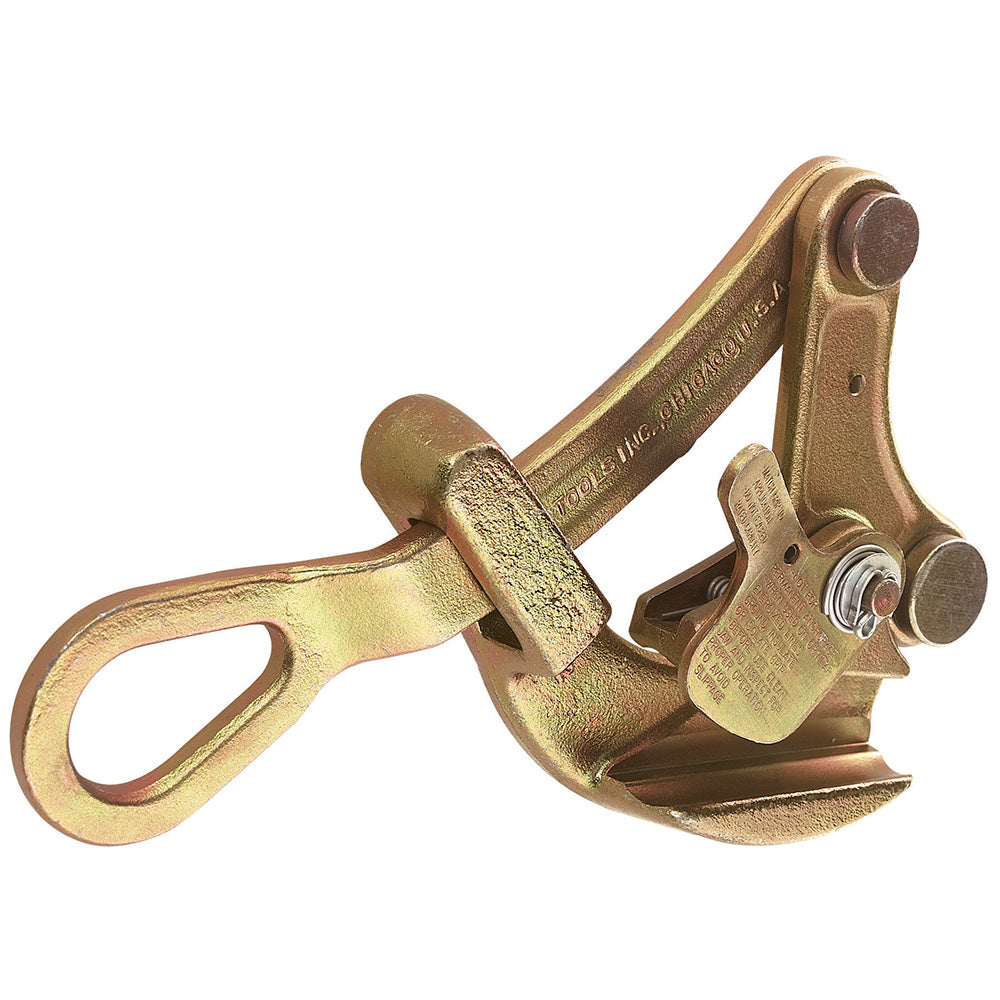

Parallel Jaw Grip 2-1/2-Inch Length

Lightweight, compact grips pull an exceptionally wide range of cable sizes and types. Designed with a round inside-jaw contour for maximum contact to minimize conductor damage. Lower jaw is serrated to firmly grip insulated cables and conductors. Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable.

• Lightweight, compact grips pull an exceptionally wide range of cable sizes and types
• Designed with a round inside-jaw contour for maximum contact to minimize conductor damage and lower serrated jaw to firmly grip insulated cables and conductors
• Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable
• Large-diameter eye accommodates large hooks on hoists, winches and tackle blocks
• Made in USA

• Warning: Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Warning: When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Warning: Do not exceed rated capacity.
• Warning: Do not exceed rated capacity.
• Warning: Grips are to be used for temporary installation, not for permanent anchorage.
• Application: Cable Pulling
• Jaw Type: Round - Serrated
• Jaw Length: 2.5" (6.4 cm)
• Weight: 2.6 lb (1.2 kg)
• Maximum Safe Load: 4500 lb (2041 kg)
• Cable Type: Messenger, EHS, Coated
• Type: Parallel Jaw Grip
• Cable Diameter: 0.157" to 0.875" (3.98 to 22.22 mm)
• Special Features: Spring
• Hot Latch: N
• Spring: Y
• Locking Handle: N
• Style_Name: Safe Load 4500 lb
• Configuration: Spring
• Size_Name: 0.157" to 0.875" Cable Diameter
• Swing Latch: N
