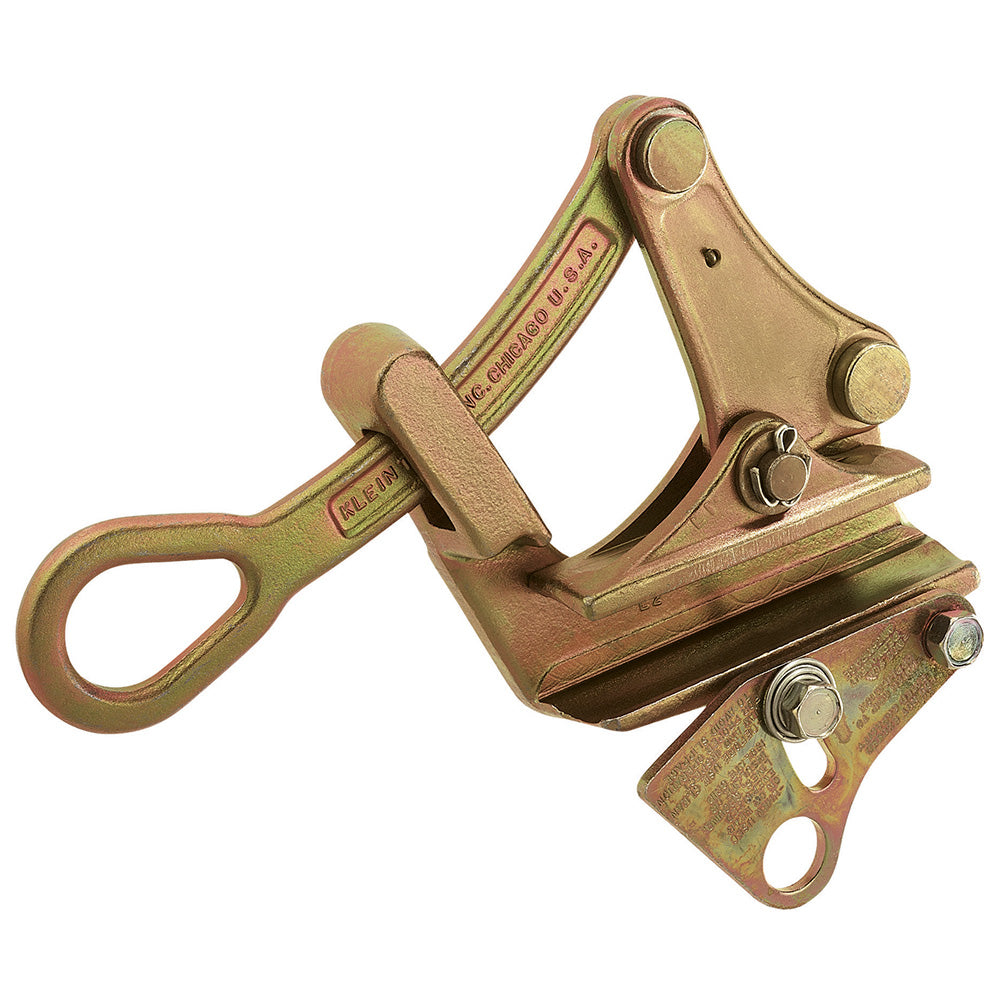

Parallel Jaw Grip 4-1/2-Inch Length

Lightweight, compact grips pull an exceptionally wide range of cable sizes and types. Designed with a round inside-jaw contour for maximum contact to minimize conductor damage. Lower jaw is serrated to firmly grip insulated cables and conductors. Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable.

• Lightweight, compact grips pull an exceptionally wide range of cable sizes and types
• Designed with a round inside-jaw contour for maximum contact to minimize conductor damage and lower serrated jaw to firmly grip insulated cables and conductors
• Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable
• Large-diameter eye accommodates large hooks on hoists, winches and tackle blocks
• Made in USA

• Warning: Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Warning: When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Warning: Do not exceed rated capacity.
• Warning: Do not exceed rated capacity.
• Warning: Grips are to be used for temporary installation, not for permanent anchorage.
• Type: Compact
• Overall Length: 11.7" (29.7 cm)
• Maximum Safe Load: 7500 lb (3400 kg)
• Cable Type: Messenger, EHS, Guy Strand
• Application: Cable Pulling
• Cable Diameter: 0.625" to 1.25" (15.87 to 31.75 mm)
• Special Features: Hot Latch, Spring
• Weight: 4.8 lb (2.2 kg)
• Jaw Type: Round - Serrated
• Jaw Length: 4.5" (11.4 cm)
• Hot Latch: Y
• Spring: Y
• Locking Handle: N
• Style_Name: Safe Load 7500 lb
• Configuration: Hot Latch & Spring
• Size_Name: 0.625" to 1.250" Cable Diameter
• Swing Latch: N
