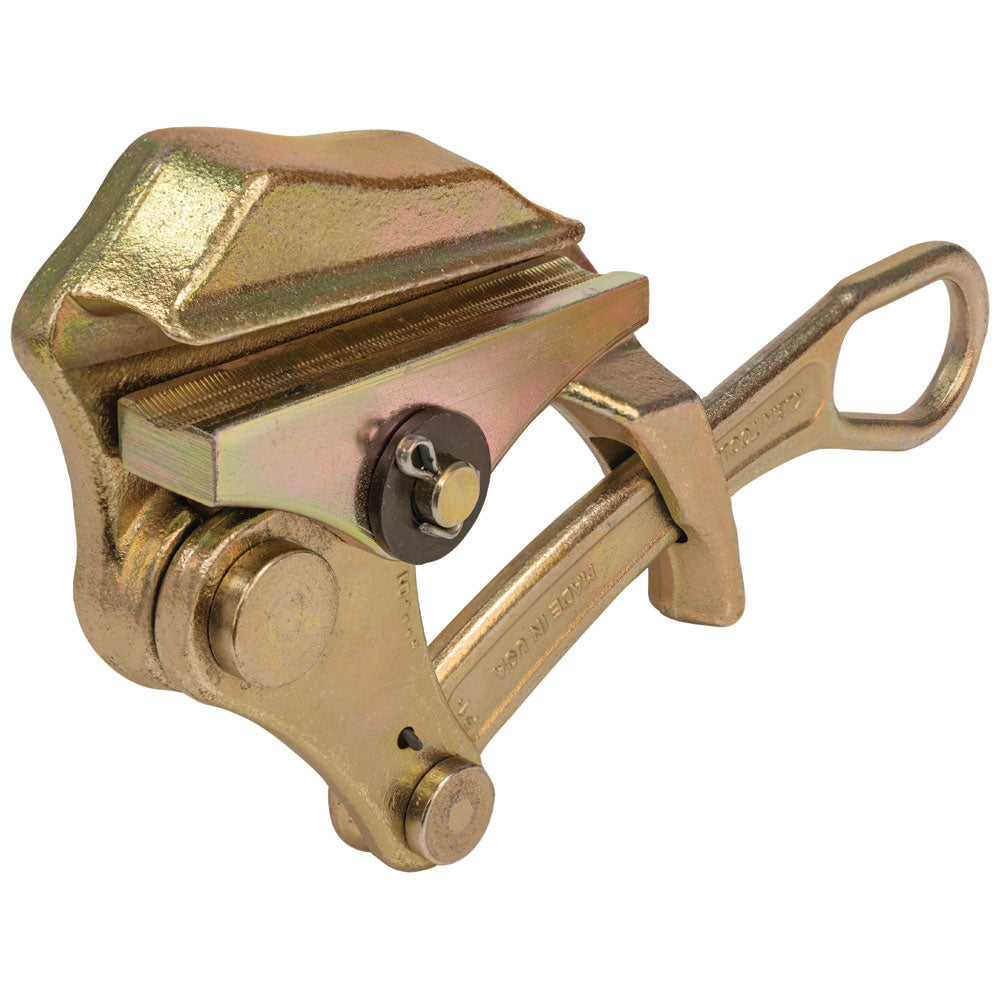

Parallel Jaw Grip 4500 Series for Guy Strand, EHS, Coated Cable

This versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed. Klein Parallel Jaw Grips are lightweight and compact. The round jaw holds 0.18 to 0.60-Inch diameter cable with a maximum safe load of 5000 lbs. Features a spring that closes the grip on the cable to maintain the initial position.

• Versatile grip holds a wider range of Guy Strand, EHS and coated cable sizes reducing the number of grips needed
• Round jaw holds 0.18 to 0.60-Inch (4.57 to 15.24 mm) diameter cable range
• Spring closes grip on cable to hold the initial position
• Sawtooth jaw profile ensures optimal grip strength on guy strand and EHS cables
• Made in USA
• Springloaded for easy onehanded operation
• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
• Max Safe Load of 5000-Pound (2268 kg)
• Alternating sawtooth jaw geometry provides greater grip strength
• Longer jaw increases surface area contact with cable eliminating cable damage

• Warning: Grips are to be used for temporary installation, not for permanent anchorage.
• Warning: When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Warning: Do not exceed rated capacity.
• Warning: Do not exceed rated capacity.
• Warning: Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Application: Cable Pulling
• Weight: 3.8 lb (1.7 kg)
• Jaw Length: 4" (10.2 cm)
• Overall Length: 10.9" (27.7 cm)
• Spring: Y
• Material: Steel
• Hot Latch: N
• Overall Width: 1.9" (4.8 cm)
• Swing Latch: N
• Locking Handle: N
• Special Features: Sawtooth Jaw Profile Ensures Optimal Grip Strength on the Cable/Wire
• Maximum Safe Load: 5000 lb (2268 kg)
• Cable Type: Guy Strand, EHS, Coated
• Overall Height: 4.6" (11.7 cm)
• Jaw Type: Round - Serrated
• Cable Diameter: 0.18" to 0.6'' (4.57 to 15.2 mm)
• Type: Parallel Jaw Grip
