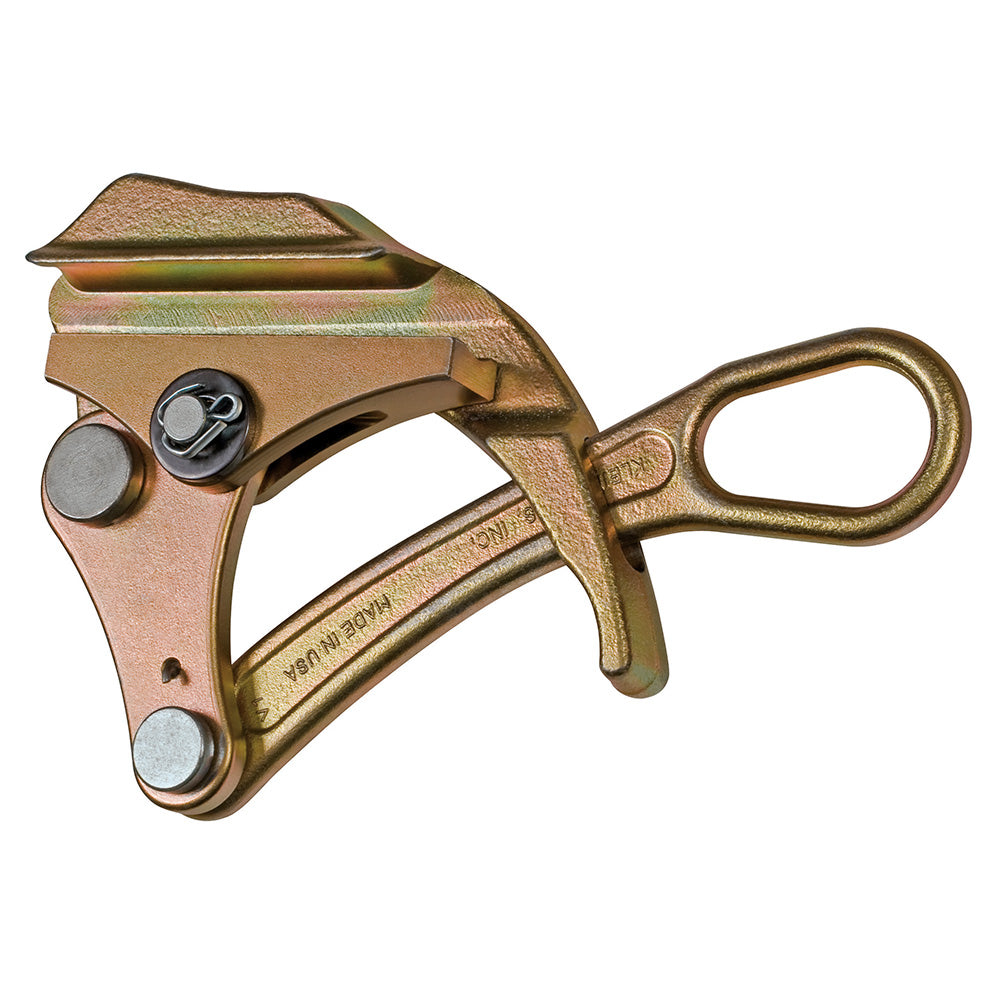

Parallel Jaw Grip 4600 Series

Lightweight, compact grips pull an exceptionally wide range of cable sizes and types. Designed with a round serrated jaw to firmly grip insulated cables and conductors. A hot latch closed automatically to guard against grip accidently disengaging from wire. A large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks.

• Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
• Round jaw holds 0.30 to 0.80-Inch (7.62 to 20.30 mm) diameter cable range
• Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
• Max Safe Load of 10,000-Pound (4536 kg)
• Made in USA

• Warning: Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Warning: When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Warning: Do not exceed rated capacity.
• Warning: Do not exceed rated capacity.
• Warning: Grips are to be used for temporary installation, not for permanent anchorage.
• Jaw Length: 5" (12.7 cm)
• Cable Type: ACSR, AAC, Copper
• Overall Height: 1.5" (3.8 cm)
• Cable Diameter: 0.3" to 0.8" (7.62 to 20.3 mm)
• Maximum Safe Load: 10,000 lb (4536 kg)
• Weight: 7.0 lb (3.2 kg)
• Jaw Type: Round - Serrated
• Overall Length: 13" (33 cm)
• Special Features: Spring
• Type: Parallel Jaw Grip
• Overall Width: 5" (12.7 cm)
• Application: Firmly Grip Insulated Cables and Conductors
• Hot Latch: N
• Spring: Y
• Locking Handle: N
• Style_Name: Spring
• Swing Latch: N
