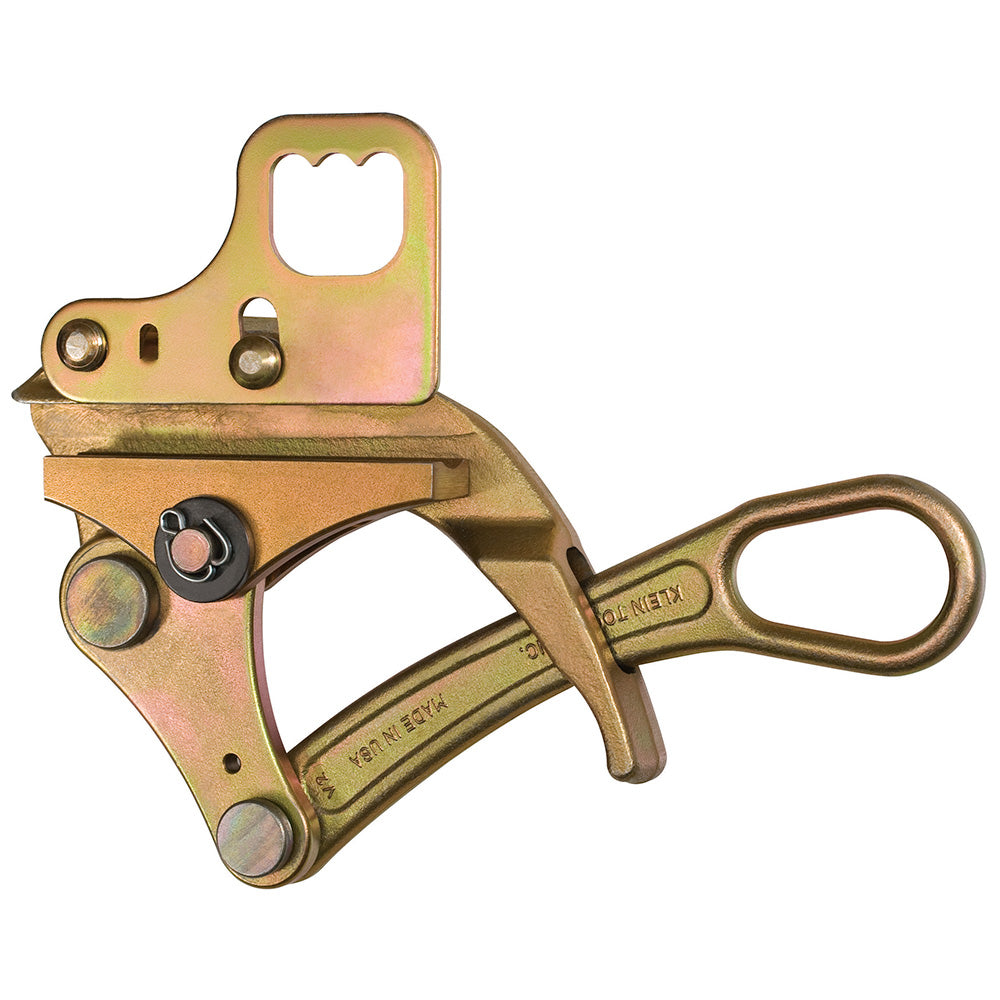

Parallel Jaw Grip 4602 Series with Hot Latch

The Klein KT4602 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4602 has a jaw length of 5-Inches.

• Versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed
• Round jaw holds 0.30 to 0.80-Inch (7.62 to 20.30 mm) diameter cable range
• Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
• Hot latch closes automatically to guard wire
• Made in USA
• Max Safe Load of 10,000-Pound (4536 kg)
• Weight: 7.2 pounds
• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

• Warning: Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Warning: When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Warning: Do not exceed rated capacity.
• Warning: Do not exceed rated capacity.
• Warning: Grips are to be used for temporary installation, not for permanent anchorage.
• Cable Type: ACSR, AAC, Copper
• Application: Wide Variety of Hooks on Hoists, Winches and Tackle Blocks
• Weight: 7.0 lb (3.2 kg)
• Jaw Type: Round - Serrated
• Overall Width: 6.5" (16.5 cm)
• Overall Length: 13" (33 cm)
• Overall Height: 1.375" (3.5 cm)
• Type: Parallel Jaw Grip
• Special Features: Hot Latch
• Maximum Safe Load: 10,000 lb (4536 kg)
• Cable Diameter: 0.16" to 0.9" (4.06 to 22.86 mm)
• Jaw Length: 5" (12.7 cm)
• Hot Latch: Y
• Spring: Y
• Locking Handle: N
• Style_Name: Hot Latch
• Swing Latch: N
