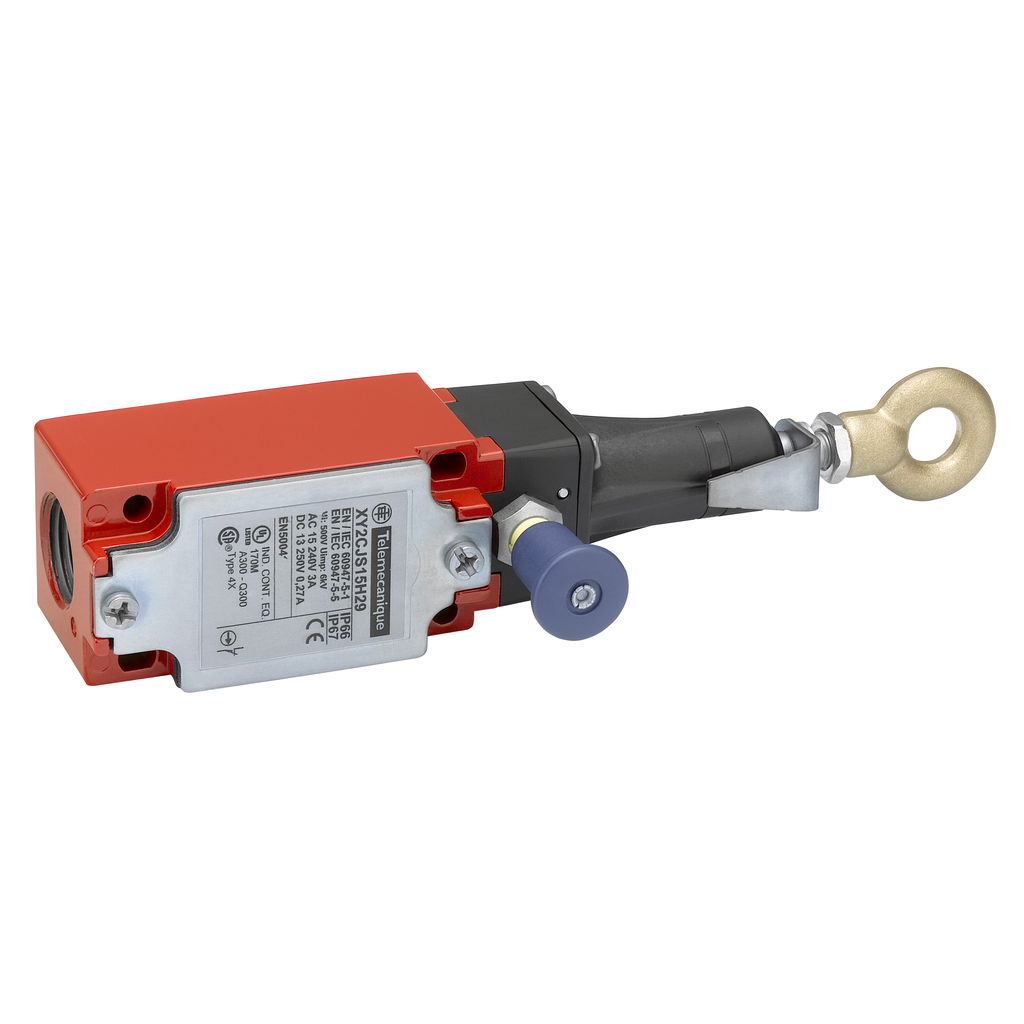

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC Pg13.5

• Range Of Product: Telemecanique Emergency stop rope pull switches XY2C
• Product Or Component Type: latching emergency stop rope pull switch
• Housing Colour: red RAL 3000
• Overvoltage Category: class I EN/IEC 61140
• Device Short Name: XY2C

Complementary

• Reset: by pull button
• Number Of Cables: 1
• Terminals Description Iso N°1: (11-22)NC || (21-22)NC
• Short-Circuit Protection: 10 A cartridge fuse gG EN/IEC 60269
• Positive Opening: with EN/IEC 60947-5-1
• [Ithe] Conventional Enclosed Thermal Current: 10 A
• Marking: CE
• Head Material: PA (polyamide)
• Local Signalling: color indicator
• Net Weight: 0.455 kg
• [Uimp] Rated Impulse Withstand Voltage: 6 kV EN/IEC 60947-1
• Trigger Cable Maximum Length: 20 m
• Connections - Terminals: screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
• Contacts Type And Composition: 2 NC
• [Ui] Rated Insulation Voltage: 500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
• [Ie] Rated Operational Current: 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
• Contact Operation: slow-break
• Distance Between Cable Supports: 5-5 m
• Mechanical Durability: 100000 cycles
• Cable Entry Number: 1 tapped entry Pg 13.5 cable gland
• Compatibility Code: XY2CJ
• Body Material: zamak
• Trigger Cable Anchor Point: RH or LH side
• Safety Reliability Data: B10d = 500000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
• Cover Material: galvanised steel
• Tightening Torque: 0.8-1.2 N.m
• Maximum Resistance Across Terminals: 25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
• Safety Level: can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1407003EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Ambient Air Temperature For Operation: -25-70 °C
• Standards: EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-5 || EN/ISO 13850 || machinery directive 2006/42/EC || EN/IEC 60204-1 || work equipment directive 2009/104/EC
• Product Certifications: UL category NISD emergency stop devices || CSA || CCC || EAC
• Shock Resistance: 50 gn 11 ms EN/IEC 60068-2-27
• Vibration Resistance: 10 gn 10-150 Hz)EN/IEC 60068-2-6
• Ip Degree Of Protection: IP66 IEC 60529 || IP67 IEC 60529
• Ambient Air Temperature For Storage: -40-70 °C
• Protective Treatment: TC
