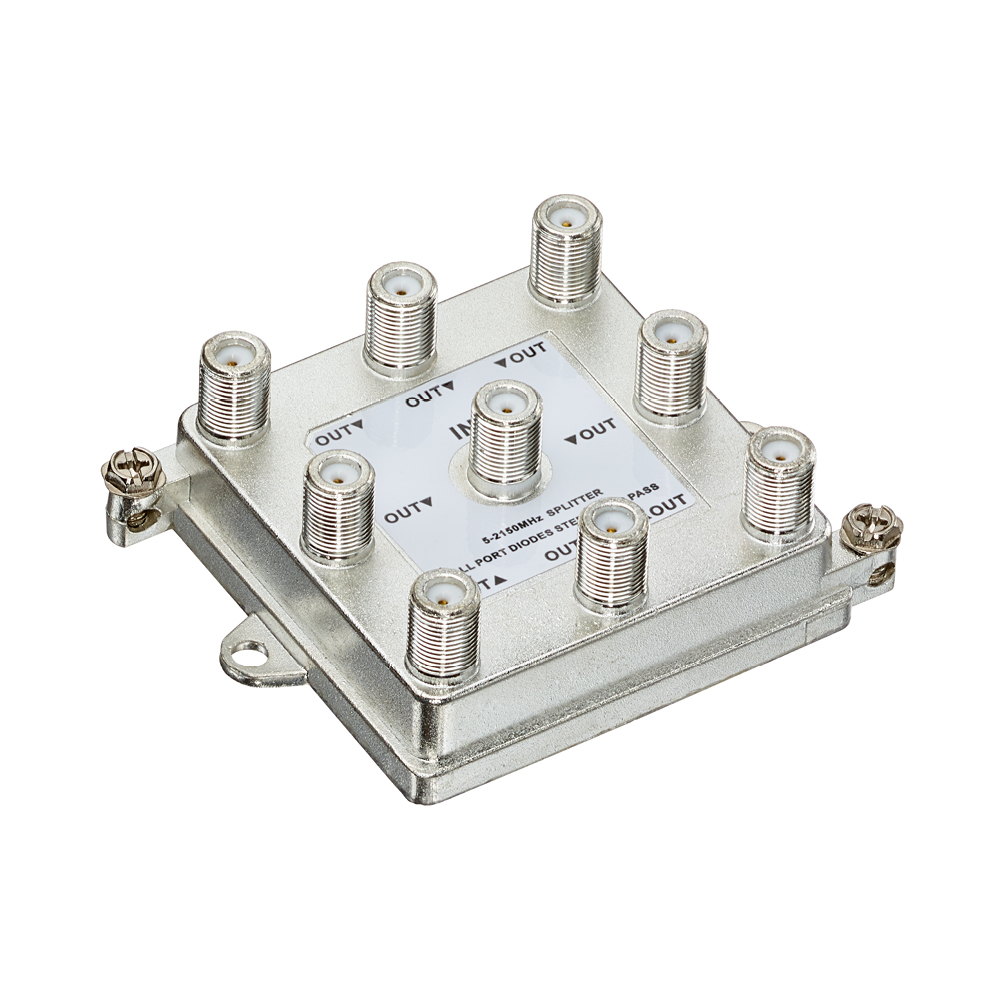

1 x 8 (8-Way) 2GHz Passive Video Splitter

• Split video signals with outputs for six or eight televisions
• Provide digital cable, cable TV, and other video services via coaxial cable to any room in a house or office
• Durable gold-plated 360-degree insert pin resists oxidation, maintaining a distortion-free signal for digital data transmission
• Weather sealed F-ports up to 30 PSI
• 75 Ohm termination caps with splitter modules
• 6kV surge protection
• Built-in capacitors on all ports block DC or low-frequency AC and also prevent current from flowing through splitter's ferrite core windings that cause hum modulation
• High-quality plating passes 1200-hour salt spray test
• Maintains low temperature stability from –40°C to 85° C both in isolation and return loss

• Country of Origin: China

Instruction Sheet
