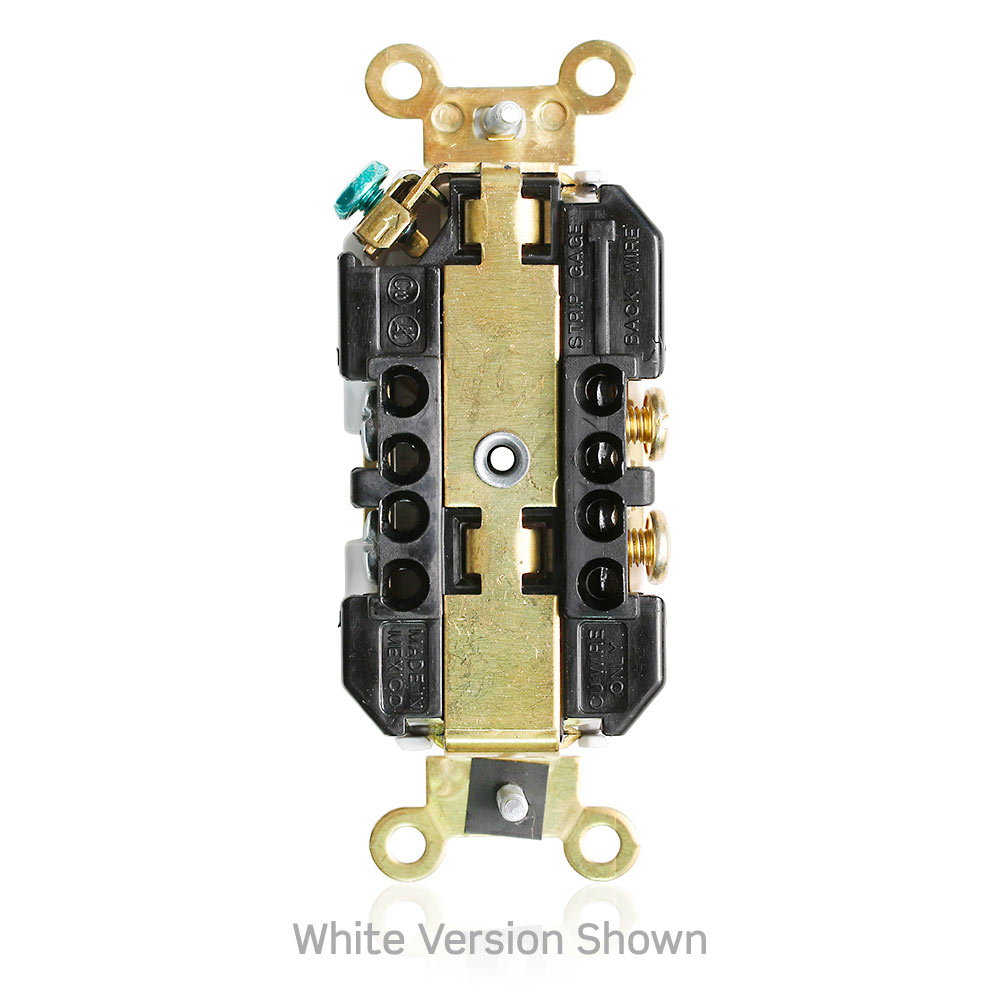

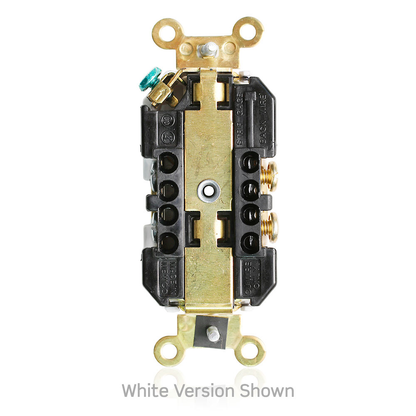

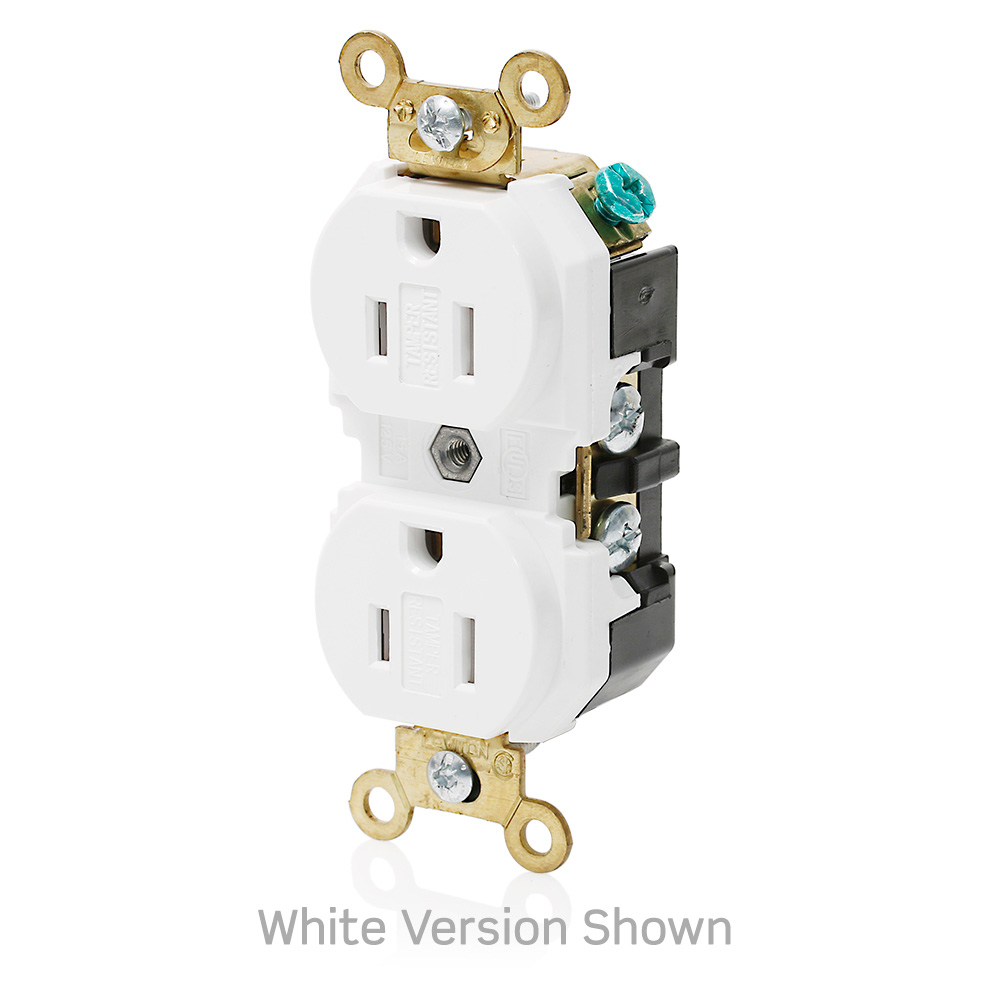

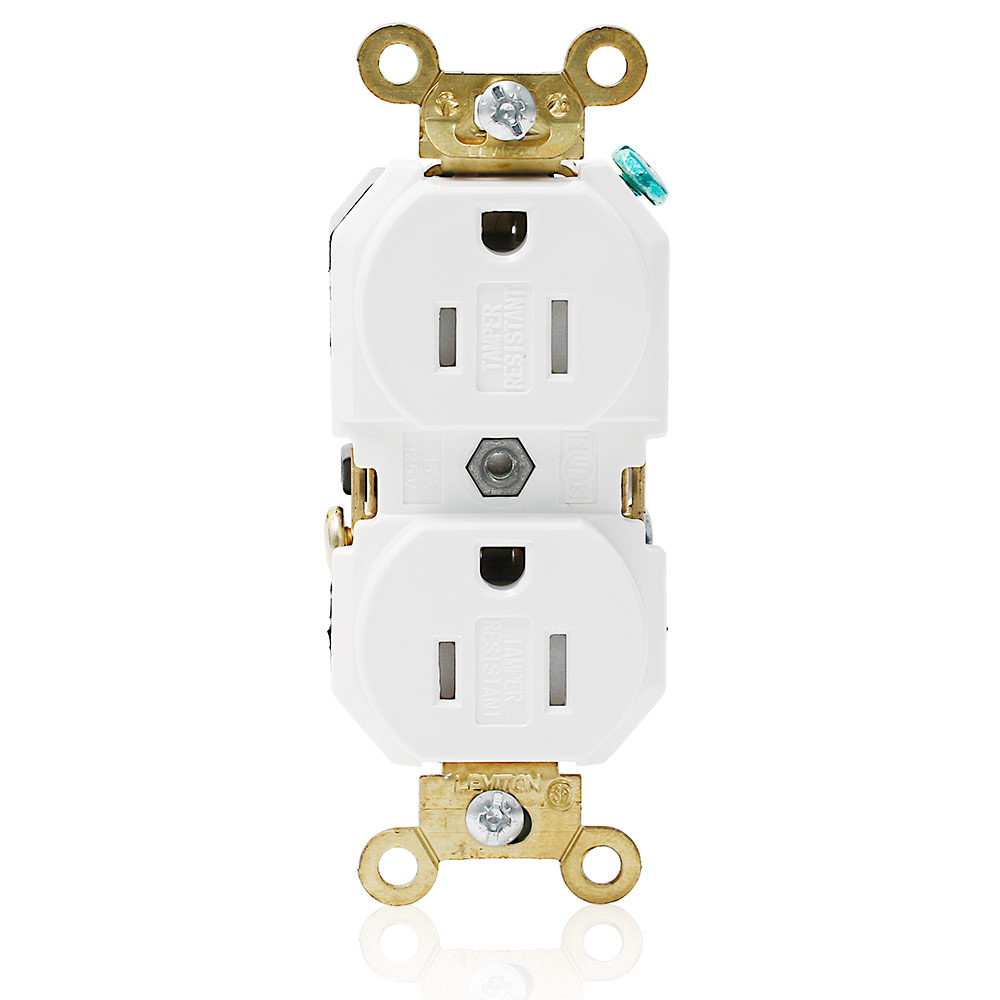

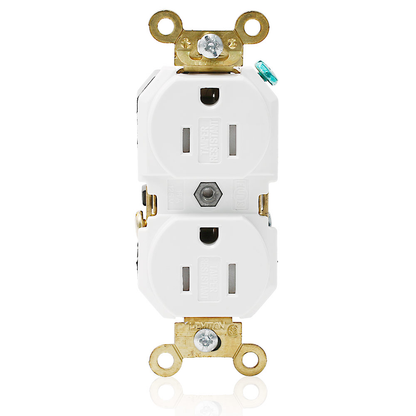

Marked "Controlled" Receptacle

NEMA

• WD-1
• WD-6

Color Variations

• Black
• Blue
• Brown
• Gray
• Ivory
• Red
• White

• Country of Origin: Mexico

AC Horsepower Ratings

• At Rated Voltage: 1/2 HP

Electrical Specifications

• Amperage: 15 A
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 75°C

Material Specifications

• Body Material: Nylon
• Face Material: Nylon
• Ground Clips: Brass
• Grounding Screw: Brass 8-32
• Line Contacts: Triple-Wipe .040" High Performance Brass Alloy
• Strap Material: Brass .050"
• Terminal Clamp: Zinc-Plated Steel
• Terminal Screws: Brass 10-32

Mechanical Specifications

• Product ID: Ratings are permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back or Side Wire
• Wire Type: Solid or Stranded Building Wire

Product Features

• Color: White
• Device Type: Duplex Receptacle Outlet
• Feature: Tamper-Resistant|Smooth Face
• Grade: Extra Heavy-Duty Industrial Specification Grade

Standards and Certifications

• NEMA: WD-1 & WD-6
• ANSI: C-73
• Applicable Standards: UL 498, CSA C22.2 No. 42, FedSpec W-C 596
• Certification/Listing: UL, CSA, NOM-ANCE

Warranty

• Warranty: 10-Year Limited
