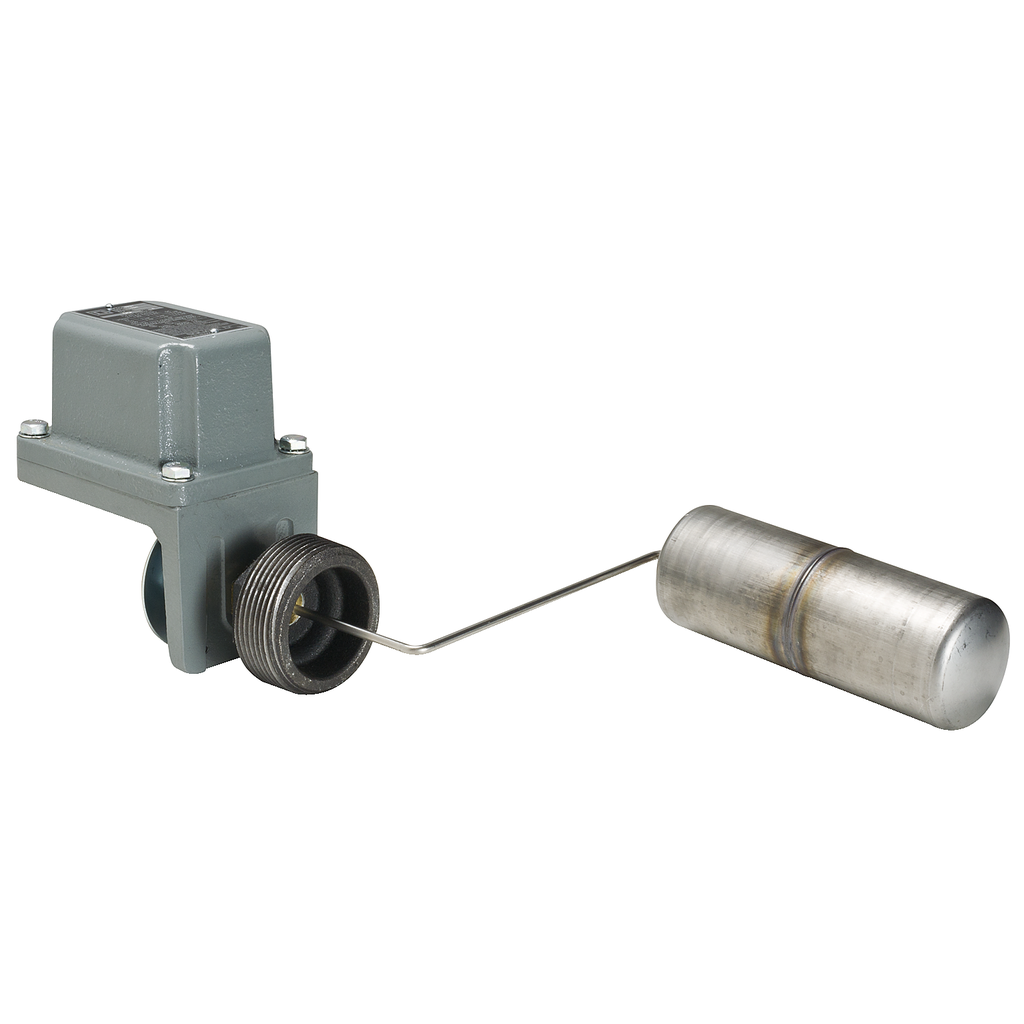

Float switch, Square D Pumptrol, closed tank, NEMA 4, screw in bushing, 2 NC DPST DB contacts

• Range Of Product: Square D Pumptrol
• Product Specific Application: liquid level control
• Quantity Per Set: set of 1
• Electrical Circuit Type: power circuit
• Product Or Component Type: float switch
• Type Of Packing: individual
• Device Application: closed tank
• Device Short Name: 9037H

Contractual warranty

• Warranty: 18 months

Complementary

• Cable Entry Number: 2 conduit entries for 3/4"-14 NPT UL 508
• Electrical Connection: screw-clamp terminals 10 AWG
• Contact Operation: contacts close on liquid rise
• Product Destination: for closed tank
• Terminal Block Type: 4 terminals
• Terminals Description Iso N°1: line-load-load-line
• Short-Circuit Protection: 20 A cartridge fuse gG
• [Ui] Rated Insulation Voltage: 575 V UL 508
• Controlled Fluid: fresh water specific gravity of 0.85 in or higher 0-220 °F || sea water specific gravity of 0.85 in or higher 0-220 °F || hydraulic oil specific gravity of 0.85 in or higher 0-220 °F || corrosive fluid specific gravity of 0.85 in or higher 0-220 °F
• Device Mounting: screw-in bushing
• Mechanical Durability: 300 cycles
• Float Rod Angle: 90° (offset)
• Factory Modification: without
• Float Movement: 2.5...5 in adjustable
• Operating Position: vertical position only
• Maximum Operating Rate: 60 cyc/mn
• Enclosure Material: Cast Aluminium
• Contacts Type And Composition: 2 NC, snap action, DPST-DB, Form YY
• Local Signalling: with external pointer
• Motor Power Kw: 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
• Materials In Contact With Fluid: stainless steel 316 || nitrile (Buna-N) or equivalent rubber || cast iron || yellow brass || stainlesss steel 304
• Float Position: right
• Kit Composition: float switch || float || rod
• Electrical Durability: 100 cycles 60 cyc/mn

Offer Sustainability

• Circularity Profile: ENVEOLI111210EN
• Environmental Disclosure: ENVPEP111211EN
• Eu Rohs Directive: Not applicable, out of EU RoHS legal scope
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Product Certifications: CSA file LR25490 || UL listed file E12158
• Ambient Air Temperature For Operation: -22-220 °F
• Ambient Air Temperature For Storage: -22-220 °F
• Standards: CE || UL 508
• Nema Degree Of Protection: NEMA 4 UL 50
