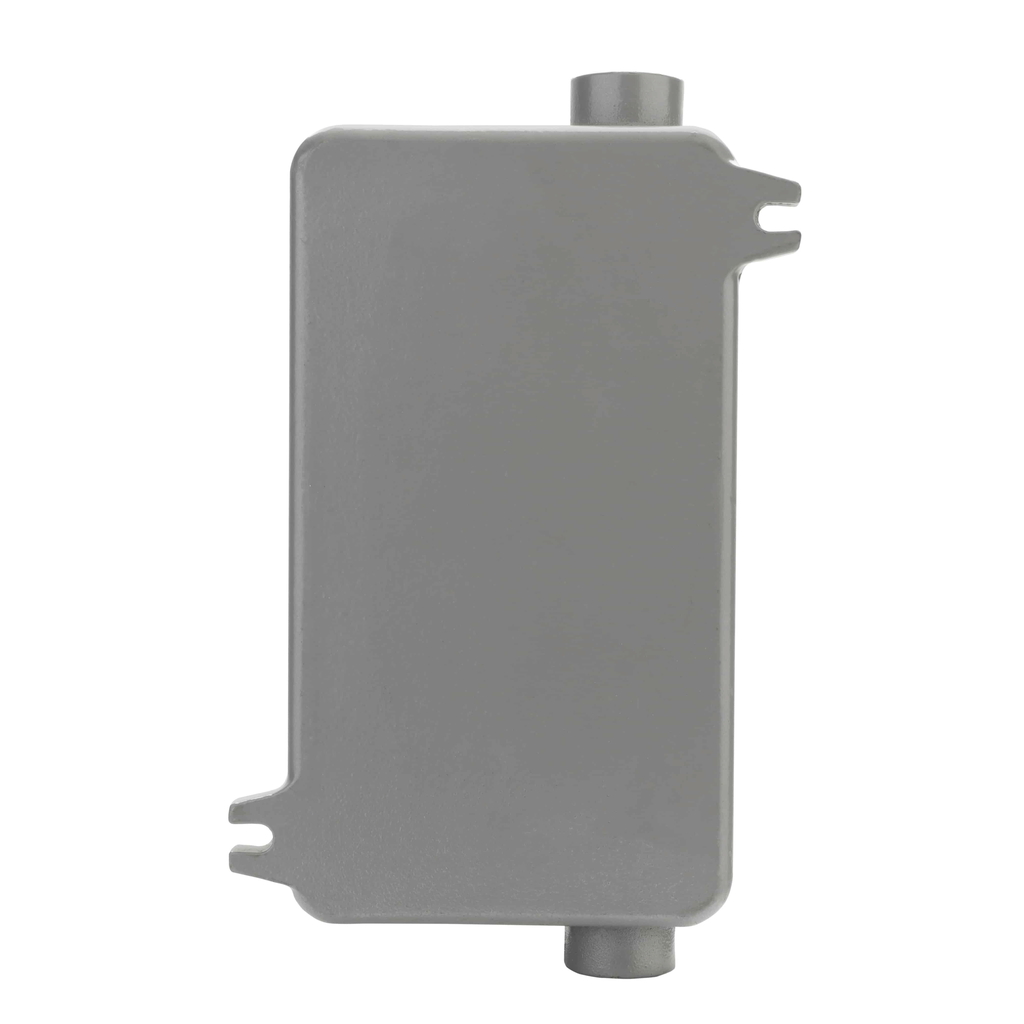

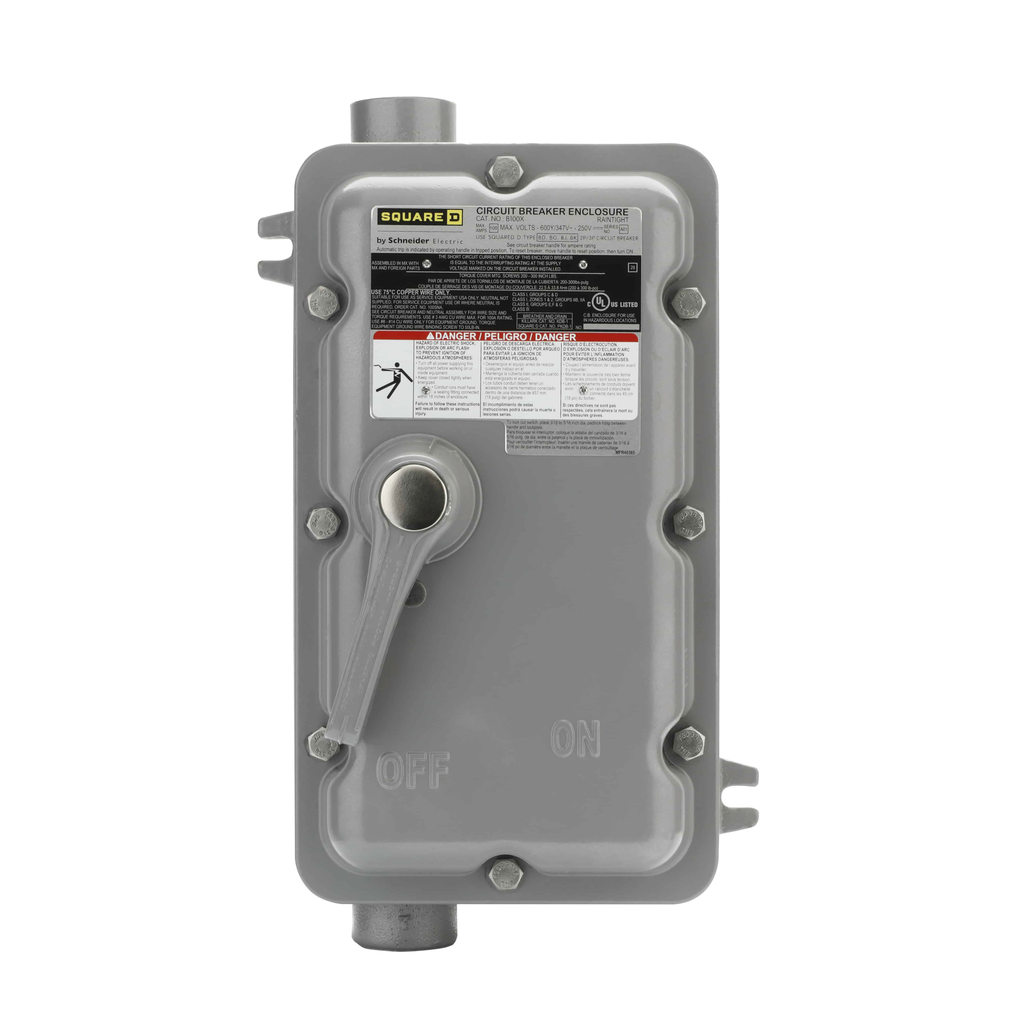

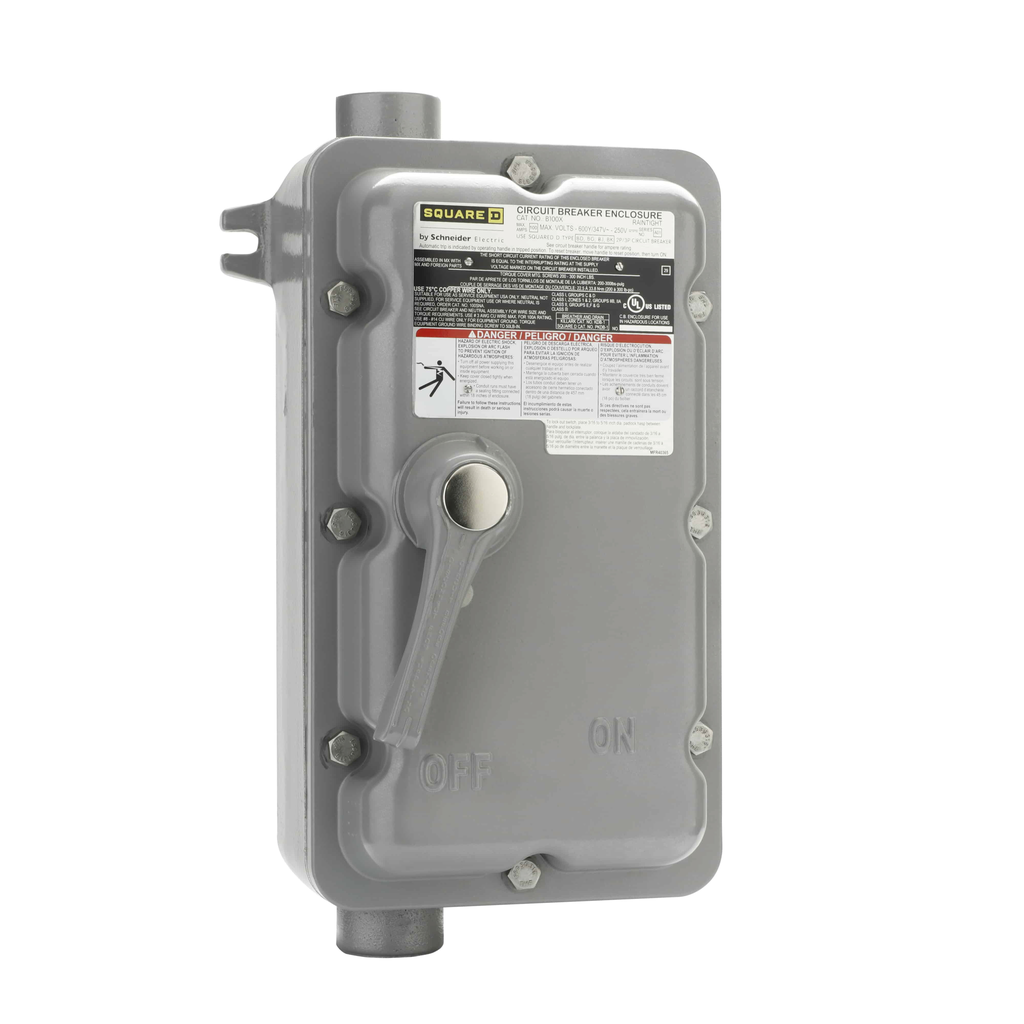

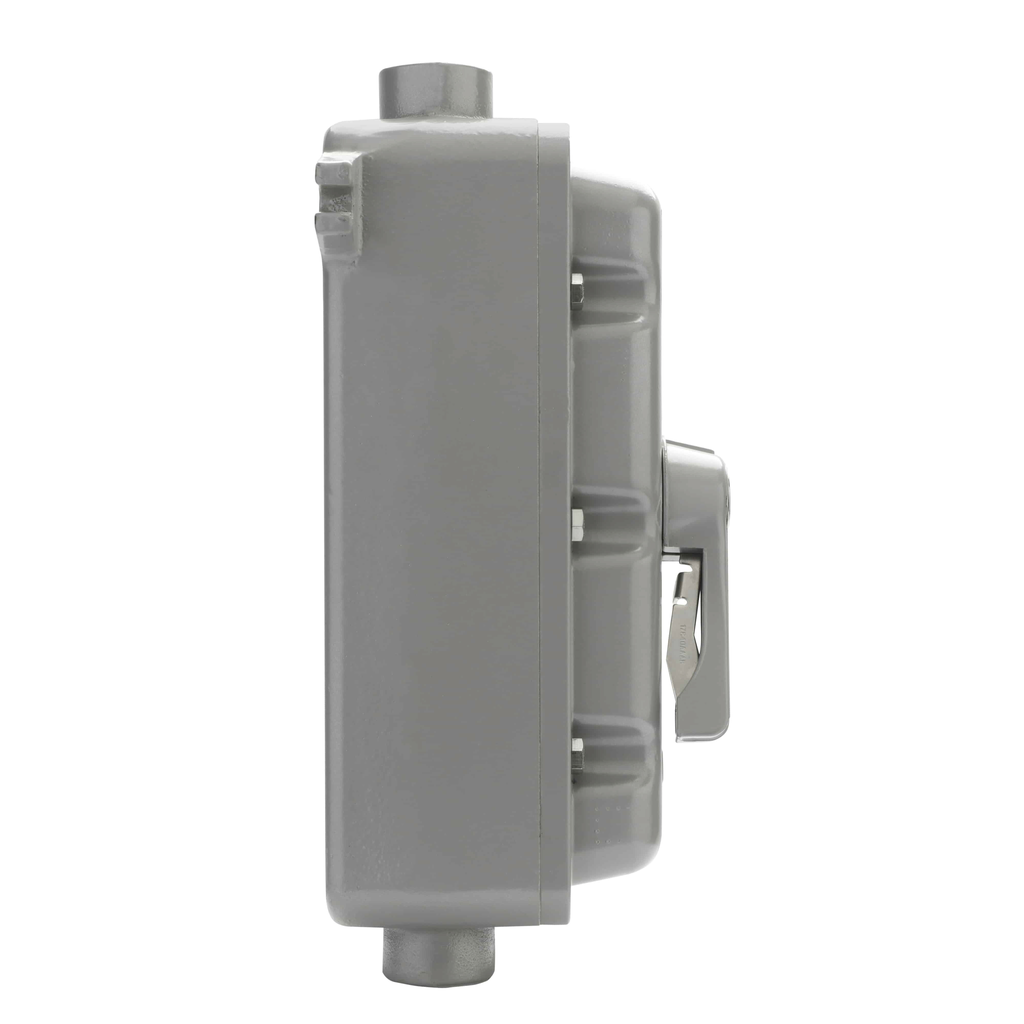

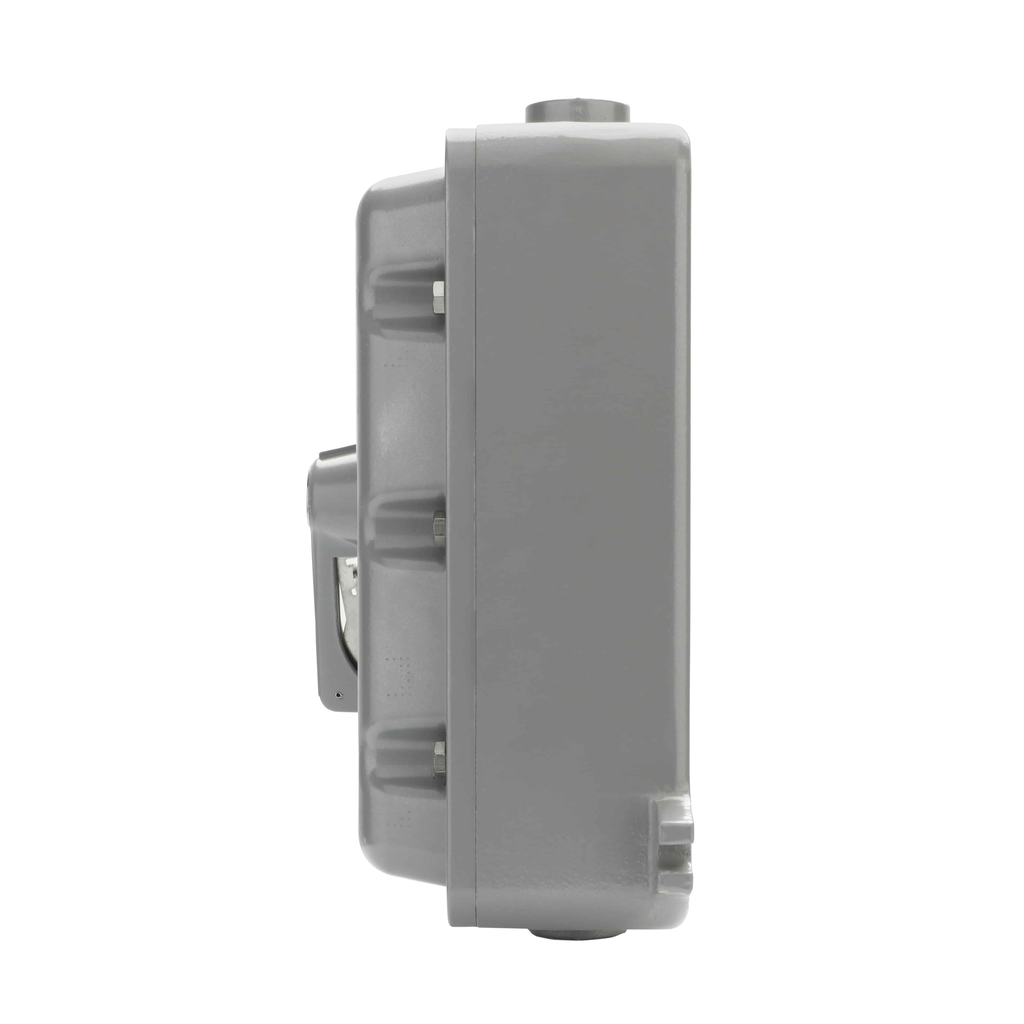

Circuit breaker enclosure, PowerPacT B, 15A to 100A, 2 and 3 pole, NEMA 7/9, cast aluminum, surface mount

Circuit breaker enclosure, PowerPacT B, 15A to 100A, 2 and 3 pole, NEMA 7/9, cast aluminum, surface mount

Part Number: B100X

UPC:

Your Price:
$1,946.82 ea
$1,946.82 ea
Sold out

Available to Order
View full details

Product Description

  • Circuit Breaker Type: B-Frame
  • Product Destination: circuit-breaker B 2P 15-100 A

Complementary

  • Height: 408.0 mm
  • Device Mounting: surface
  • Enclosure Material: Cast Aluminium
  • Width: 245.1 mm
  • Depth: 184.2 mm

Offer Sustainability

  • China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
  • Rohs Exemption Information: Yes
  • Mercury Free: Yes
  • Environmental Disclosure: ENVPEP1408006EN
  • Sustainable Offer Status: Green Premium product
  • Pvc Free: Yes
  • Toxic Heavy Metal Free: Yes
  • Eu Rohs Directive: Compliant
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Halogen Content Performance: Halogen free plastic parts product

Environment

  • Product Certifications: UL Listed
Spec Sheet

Catalog

PowerPacT B-Frame 15 to 125 A Circuit Breakers - Catalog - 0611CT1603 (pdf)

Brochure

EcoStruxure Power Asset Performance eGuide - 998-20406243_US_NEMA (pdf)
PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf)
PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf)

Certificate

SWITCHES, MOLDED CASE - UL_Certificate_E59921_19660613 (pdf)

CAD

PowerPact B Circuit Breaker Enclosure 15 to 100 AMPERE NEMA TYPE 7/9 - PWCCB-ENCCB-0023+B100X+PAD (dxf)
PowerPact B Circuit Breaker Enclosure 15 to 100 AMPERE NEMA TYPE 7/9 - PWCCB-ENCCB-0023+B100X+PAD (dwg)

Instruction sheet

PowerPacT B Enclosures for Hazardous Locations Installation Instructions - MFR52790 (pdf)

Environmental Disclosure

Industrial and Residential Circuit Breaker Enclosures - ENVPEP1408006EN (pdf)

Technical Drawing

PowerPact B Circuit Breaker Enclosure 15 to 100 AMPERE NEMA TYPE 7/9 - PWCCB-ENCCB-0023+B100X+PAD (dxf)
PowerPact B Circuit Breaker Enclosure 15 to 100 AMPERE NEMA TYPE 7/9 - PWCCB-ENCCB-0023+B100X+PAD (dwg)
PowerPact B Circuit Breaker Enclosure 15 to 100 AMPERE NEMA TYPE 7/9 - PWCCB-ENCCB-0023+B100X+PAD (pdf)
