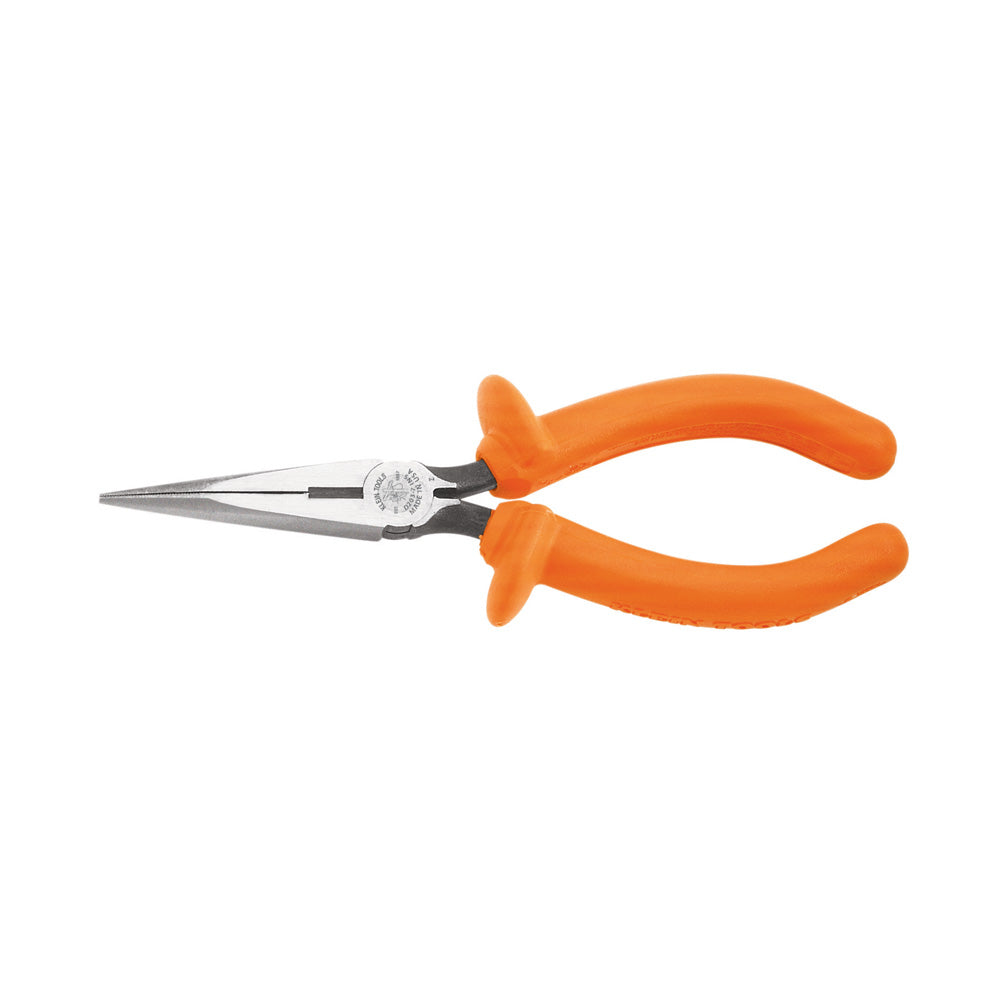

Long Nose Pliers, Insulated, 6-Inch

Klein Tools Insulated Long Nose Side-Cutting pliers are 1000V rated for safety on the job. The long nose is designed for grabbing and looping wire. Dual layer, orange-over-white insulation provides a warning sign that insulation may be compromised. The molded insulation meets or exceeds ASTM F1505-16 and IEC 60900:2012 standards for insulated tools. Cutting knives are induction hardened for long life.

• Pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
• Flame retardant, impact-resistant, bright orange outer coating with two layers of insulation provide protection against electric shock
• Slim head design for working in confined areas
• Curved handles provide greater tool control
• Forged in the USA with custom, US-made tool steel for maximum durability
• Side-cutting knives at the hinge
• Knurled jaws for sure wrapping and looping
• Hot-riveted joint ensures smooth action and no handle wobble
• Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
• Integral guards help prevent hand contact with conductive parts

• Warning: Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Warning: Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Warning: Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Warning: Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Warning: Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Warning: Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Special Features: Flame Retardant and Impact Resistant Handle
• Material: Induction Hardened Steel
• Handle Length: 4.422" (11.2 cm)
• Insulated: Yes
• Weight: 4.8 oz (136 g)
• Point Diameter: 0.094" (0.24 cm)
• Type: Long Nose Side Cutting Pliers
• Application: For Work Near Energized Sources
• Jaw Thickness: 0.375" (1 cm)
• Cut Style: Side-Cutting
• Cutting Knives: Standard
• Standard: IEC 60900 and ASTM F1505
• Knife Length: 0.572" (1.5 cm)
• Jaw Length: 1.969" (5 cm)
• Handle Finish: 2-Layer Insulation
• Jaw Width: 0.688" (1.7 cm)
• Handle Color: Orange
• Joint Type: Hot-Riveted
• Overall Length: 6.9" (17.5 cm)
• Jaw Capacity: 1.72" (4.4 cm)
• Size_Name: 6-Inch
• Style_Name: Standard
• Nominal Length: 6"
• Item: Needle-Nose
