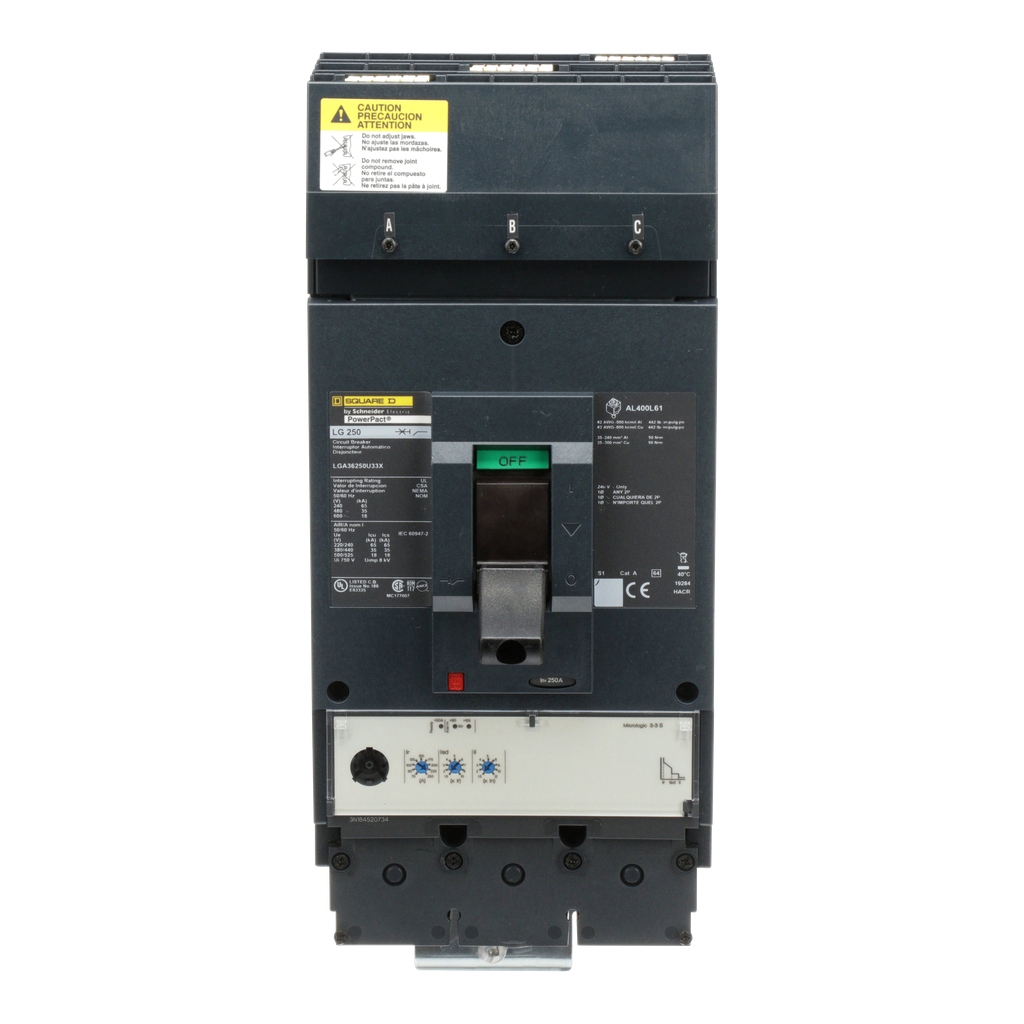

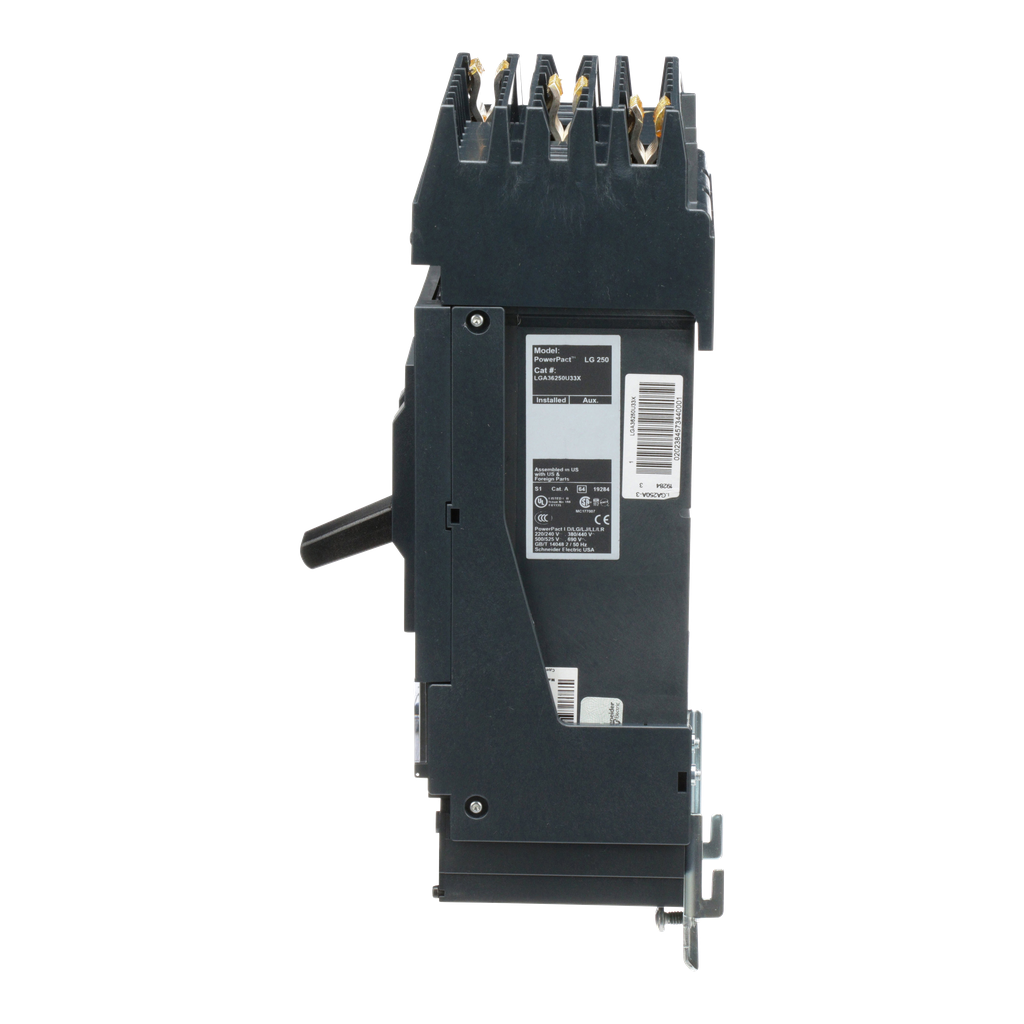

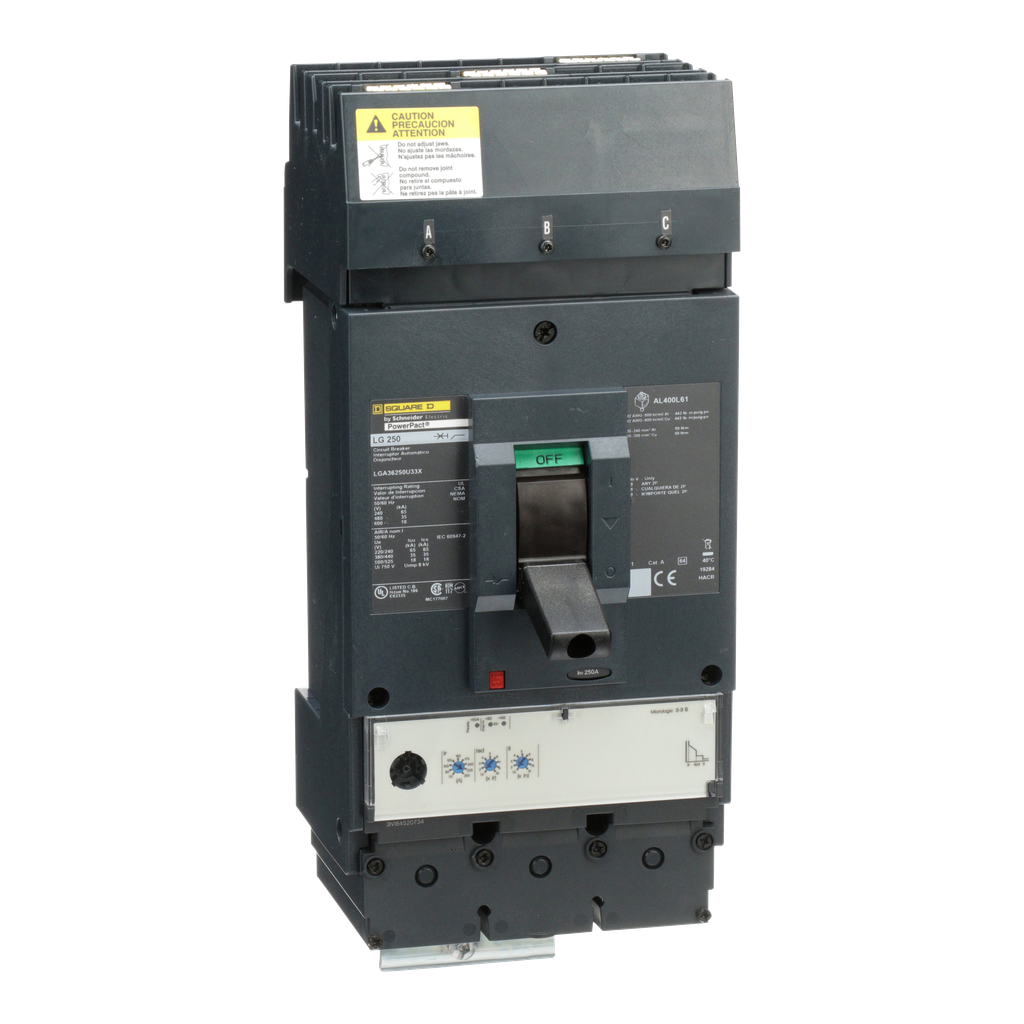

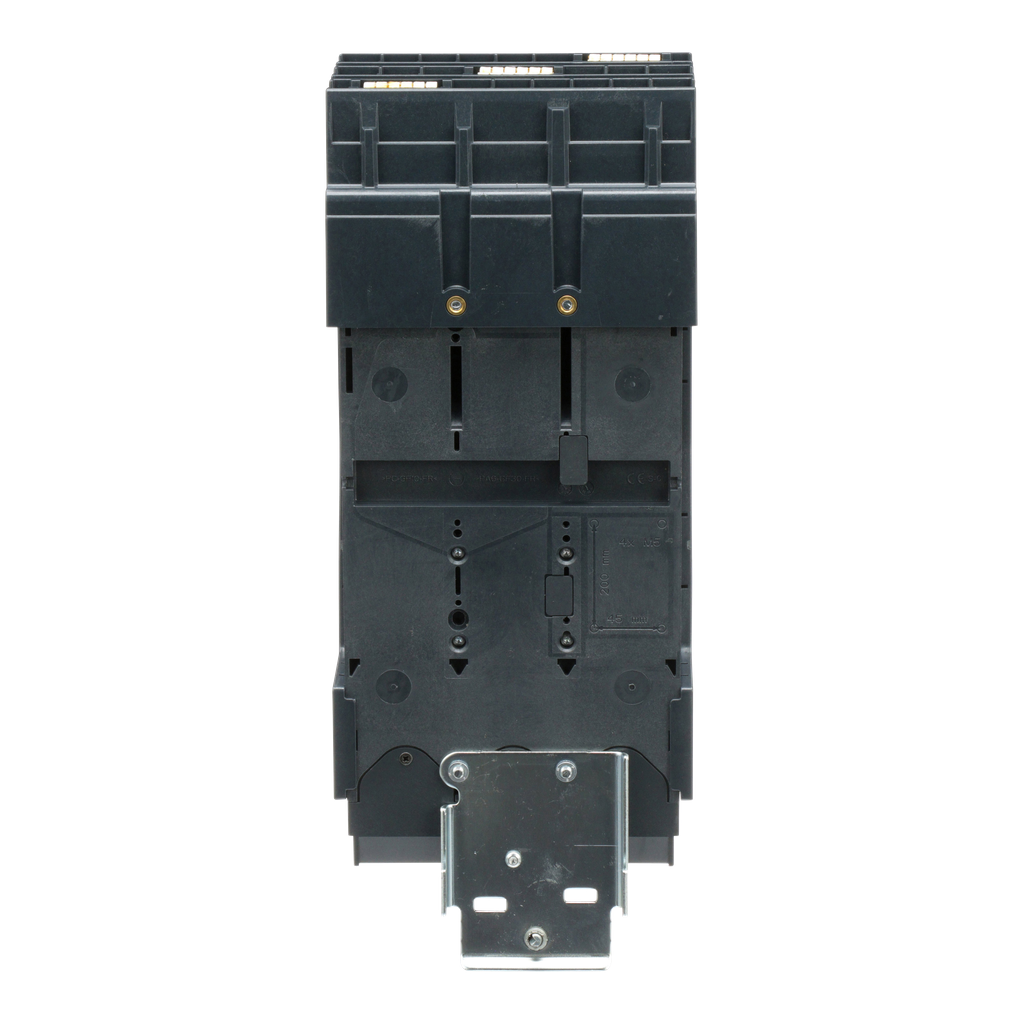

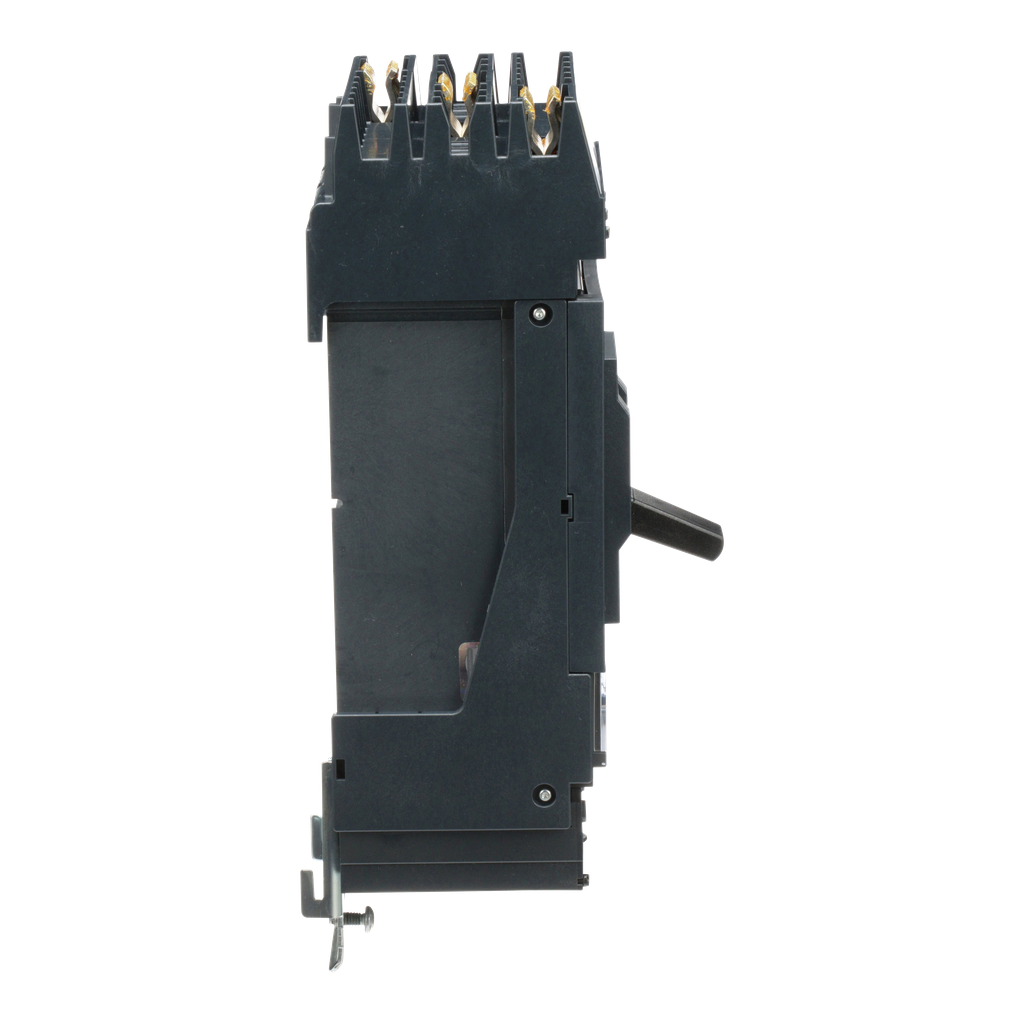

Circuit breaker, PowerPacT L, 250A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.3S, 80%, ABC

• Product Or Component Type: circuit breaker
• Product Name: PowerPact L
• Range: PowerPact
• Device Application: distribution
• Device Short Name: L-Frame

Contractual warranty

• Warranty: 18 months

Complementary

• Mounting Mode: I-Line bracket)
• Network Frequency: 50/60 Hz
• Terminal Identifier: AL400L61K3
• [Ics] Rated Service Breaking Capacity: 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
• Trip Unit Technology: electronic, standard, MicroLogic 3.3 S, LSI
• Trip Unit Name: MicroLogic 3.3 S
• Height: 340 mm
• [Ue] Rated Operational Voltage: 600 V AC 50/60 Hz IEC 60947-3
• Tightening Torque: 50-50 N.m 35-300 mm² (AWG 2...600 kcmil) || 50-50 N.m 35-240 mm² (AWG 2...500 kcmil)
• Mounting Support: bracket
• Breaking Capacity Code: G
• Local Signalling: ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
• Number Of Slots: 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
• Protection Technology: current limiter
• Electrical Connection: I-Line connection line || lugs load
• Mounting Height: 6 in
• Net Weight: 6.2 kg
• [Uimp] Rated Impulse Withstand Voltage: 8 kV IEC 60947-2
• Control Type: toggle
• Circuit Breaker Application: HACR rated
• Wire Stripping Length: 31 mm
• Utilisation Category: category A
• Line Rated Current: 250-250 A
• Long Time Pick-Up Adjustment Range: 0.25...1 x In
• Continuous Current Rating: 80 %
• Breaking Capacity: 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
• [Ui] Rated Insulation Voltage: 750 V IEC 60947-2
• Suitability For Isolation: yes IEC 60947-2
• Communication Interface: Modbus || Ethernet
• Poles Description: 3P
• Awg Gauge: AWG 2...600 kcmil copper || AWG 2...500 kcmil aluminium
• Color: Black
• Width: 140 mm
• Depth: 110 mm
• Phase Connection: ABC

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP2206029EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile: ENVEOLI2206029EN
• Eu Rohs Directive: Compliant

Environment

• Ambient Air Temperature For Operation: -2-70 °C
• Standards: UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
• Product Certifications: UL || CSA || NOM
• Ip Degree Of Protection: front cover IP40
• Pollution Degree: 3 IEC 60947-1
• Ambient Air Temperature For Storage: -50-85 °C
• Operating Altitude: < 6561.68 ft (2000 m) without derating || 5000 m with derating
