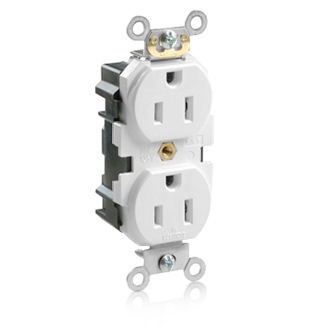

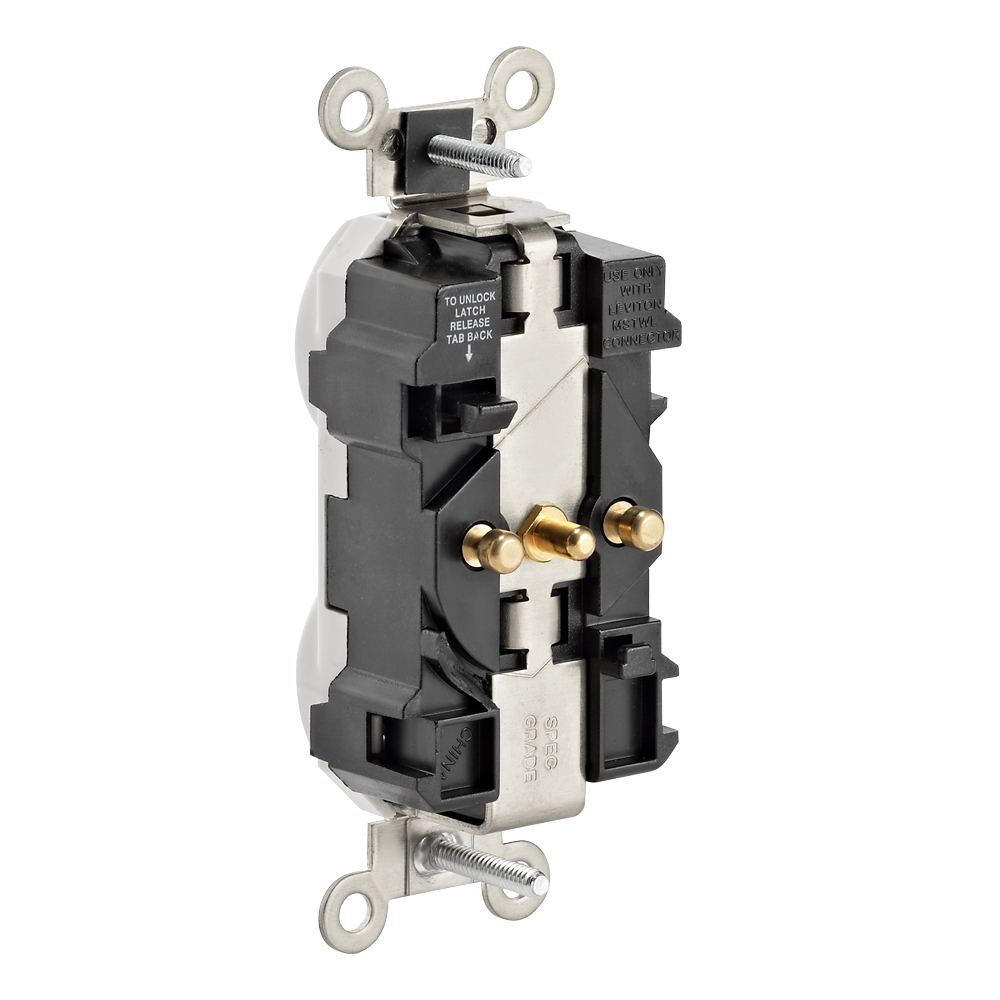

Lev-Lok Duplex Receptacle

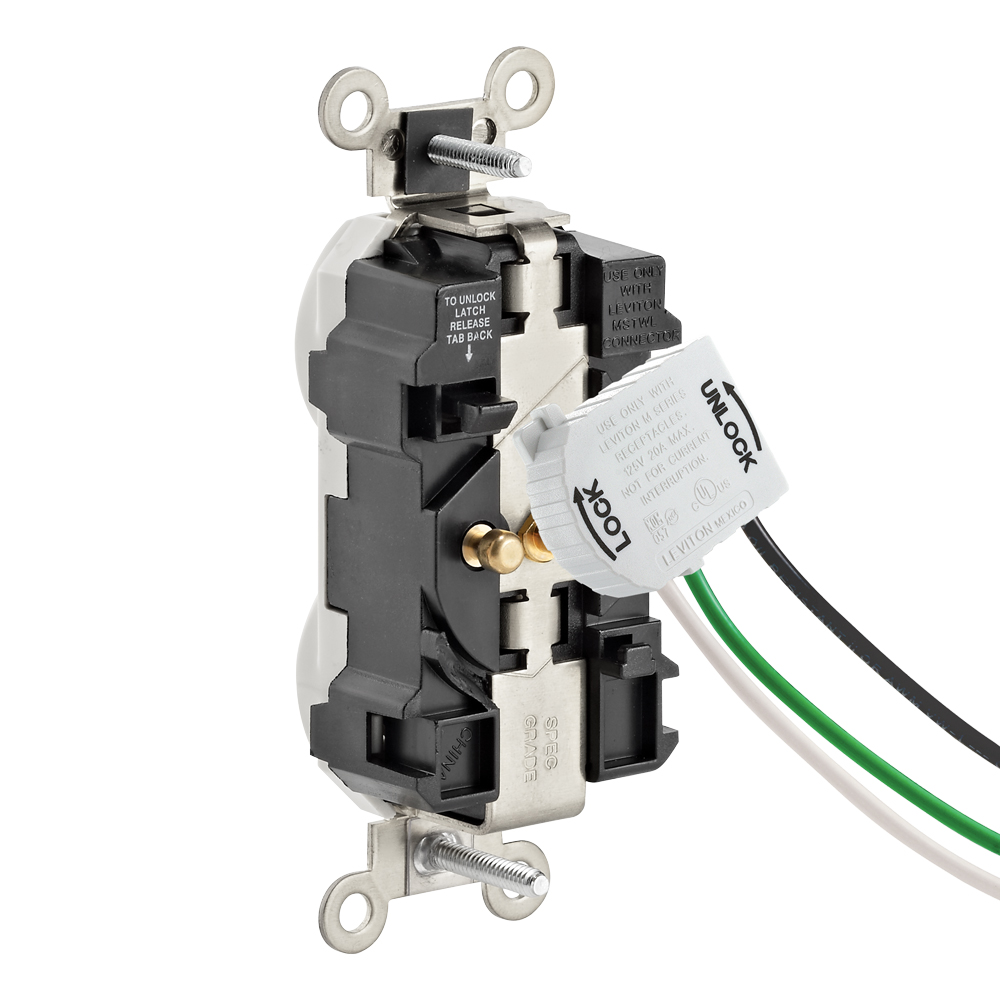

• The Lev-Lok® Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms.

NEMA

• WD-1
• WD-6

Color Variations

• Brown
• Gray
• Ivory
• Light Almond
• Red
• White

• Country of Origin: Mexico
• RoHS Compliant: Yes

AC Horsepower Ratings

• Horsepower Rating: 1/2 HP

Electrical Specifications

• Amperage: 15 A
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Maximum Working Voltage: 125V as rated
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3

Environmental Specifications

• Flammability: Rated V-2 per UL94
• Operating Temperature: -40°C to 60°C

Material Specifications

• Base Material: Nylon
• Bushing: Solid Brass
• Cover Material: Nylon
• Ground Clips: Brass
• Line Contacts: 0.040” Thick Solid Brass
• Locking Pins: Solid Brass
• Mounting Screws: Triple Combination Head, Steel
• Mounting Strap: Galvanized Steel with Riveted Ground Contacts

Mechanical Specifications

• Product ID: Ratings are permanently marked on device
• Termination: Modular

Product Features

• Brand: Lev-Lok
• Color: White
• Device Type: Duplex Receptacle Outlet
• Feature 4: Smooth Face
• Grade: Heavy-Duty Industrial Specification Grade

Standards and Certifications

• NEMA: WD-1 & WD-6
• ANSI: C-73
• NOM Certified: 057
• Warranty: 10-Year Limited
• cULus: Listed
