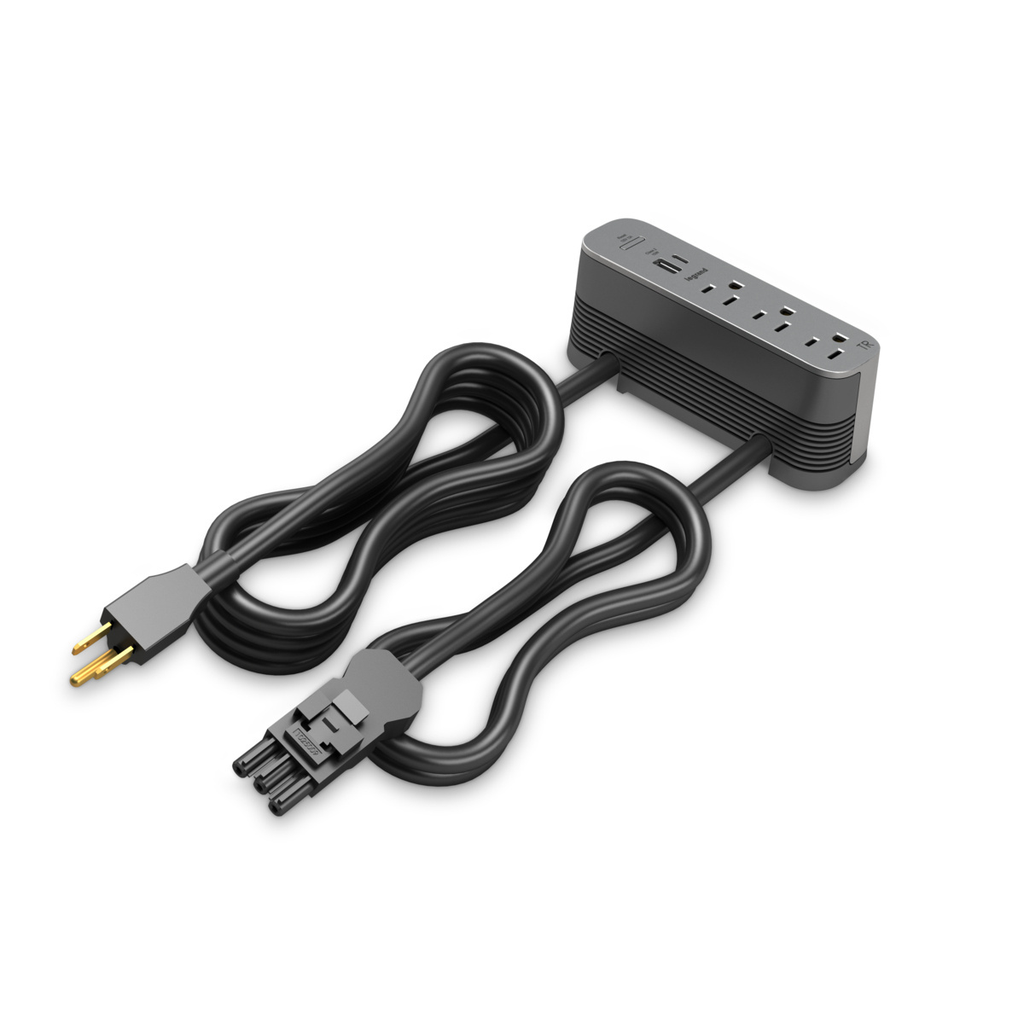

ModPower Primary Unit, On Surface

Certifications

• UL Listed
• RoHS Compliant
• UL Standard
• CSA Listed
• FCC Compliant

• Modular code-compliant power listed for use in US and Canada. Connect up to six of our power units together to create a system of power for training spaces, workstations or flexible spaces."
• Choose in surface or on surface. Pick the option that best fits your space: in surface or on surface. On surface units can be mounted under or above table surfaces. In surface units include a bezel that hides the mounting screws for a cleaner look.
• Easy installation. On surface units can be mounted using clamp (for a damage-free install) or can be installed using wood screws. Installation for in surface units is a snap: Simply cut the opening, insert the unit, tighten the clamps, snap on the bezel and plug it in."
• UL Spill Water Compliant. Passed UL 962A spill water test requirements so it can be used in a horizontal surface, such as a tabletop."
• FCC Compliance. This device complies with part 15 of the FCC Rules.
• Circuit breaker. You will notice that our units (primary, middle and end) all utilize a circuit breaker. UL962A Supplement SD requires that all furniture power distribution units for portable (moveable) workspace tables contain supplementary overcurrent protection."
• Tamper resistant receptacles. Models have three tamper resistant receptacles to keep little fingers away from danger.
• Maximum number of interconnected units in a system vary depending on region. Maximum of 6 units in a system allowed in USA. Maximum of 4 units in a system allowed in Canada.

• Color: Magnesium
• Product Line: Wiremold

• Country of Origin: China
• Standard: UL Listed to UL962A Supplement SD – Furniture Power Distribution Units for Portable (Moveable) Work Space Tables: File E349493 Guide IYNC, CSA certified to CSA Standard C22.2 No. 203-16 Modular Wiring Systems for Office Furniture
• Amperage: 15 A
• Plug Type: 5-15P
• Cord Type: 12/3 SJT
• Number of USBs: 2.0
• Cable Type: 12/3 SJT
• Cord Length: 10.0 in
• Cable Length: 10.0 in
• Indoor/Outdoor: Indoor
• Number of Circuits: 1.0
• Type: Modular Power System
• Is Tamper-Resistant: Yes
• Voltage: 125.0 V, 125.0 V
• Wiring Method: Cord-ended
• Number of Receptacles: 3.0
• Application Sector: Commercial
• Cable Size: 12.0 AWG, 12.0 AWG
• Current Rating: 15.0 A, 15.0 A
• NEMA Configuration Code: 5-15R
• Receptacle Type: Straight Blade
