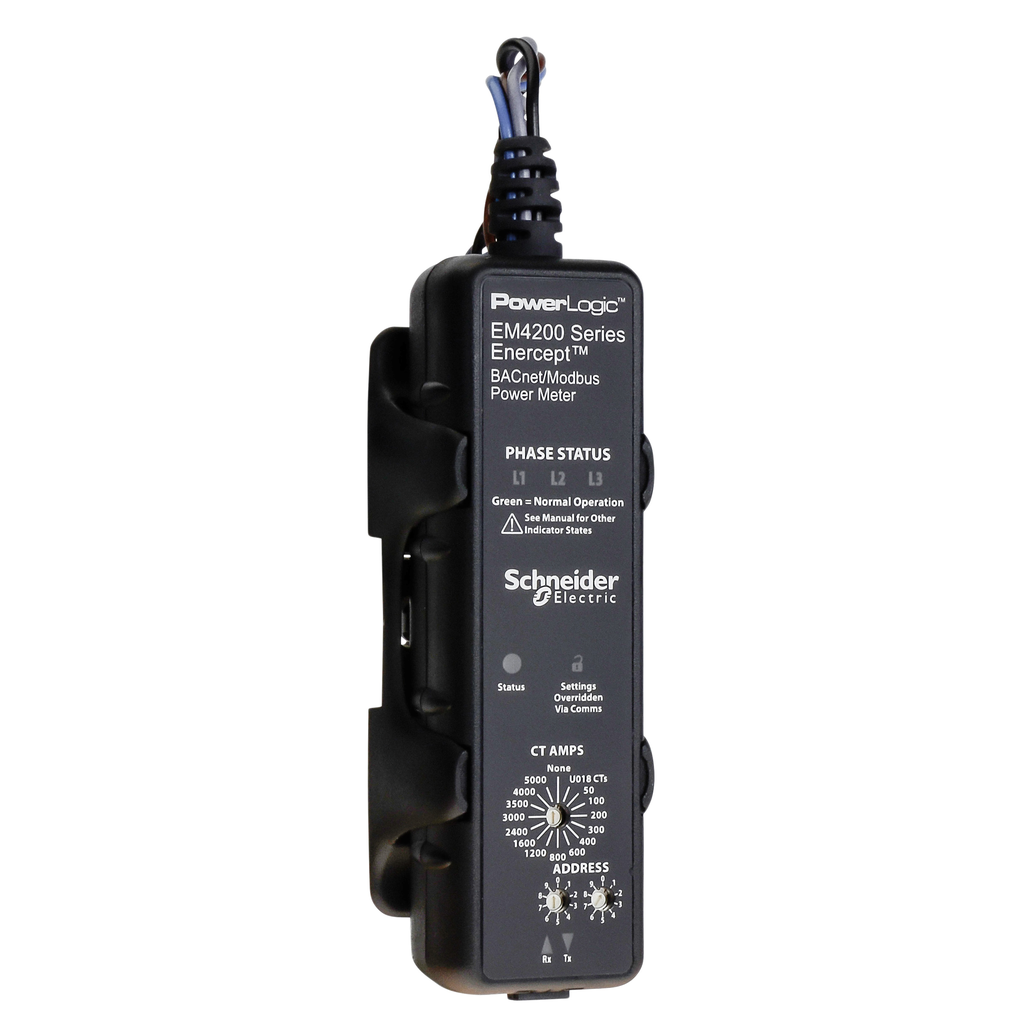

Enercept Meter, class 0.2S, Modbus/BACnet RS-485, user choice, ANSI wire code

• Product Or Component Type: energy meter
• Product Name: PowerLogic EM4200
• Type Of Cable: ANSI cable
• Range: PowerLogic
• Device Application: power monitoring
• Device Short Name: Enercept

Complementary

• Network Frequency: 50 Hz || 60 Hz
• Provided Equipment: bracket for support || hook
• Height: 152.36 mm
• Measurement Voltage: 90-90 V AC 45...65 Hz minimum per phase || 480-480 V AC 45...65 Hz between phases || 300-300 V AC 45...65 Hz between phase and neutral
• Number Of Outputs: 0
• Standards: EN 61010-1 || UL 61010-1 || CAN/CSA C22.2 No. 61010-1-12
• Product Certifications: CE EN 61010-1 || cULus UL 61010-1 || BTL || ANSI
• Communication Port Protocol: Modbus RTU 9600 bauds...115200 bauds (automatic detection) || BACnet MS/TP 9600 bauds...115200 bauds (automatic detection)
• Frequency Measurement Range: 45-65 Hz
• Communication Of Data: remote control orders || total energy || net energy
• Number Of Inputs: 0
• Net Weight: 4 kg
• Depth: 35.81 mm
• Measurement Current: 50-5000 A
• Wire Stripping Length: 6 mm
• Local Signalling: status LED green and red) || line fault 3 LED green, orange and red) || dial pointer indication LED Yellow) || RX/TX 2 LED green, orange and red)
• Connections - Terminals: input/output plug-in connector bottom) 0.2-1.5 mm² || current transformer plug-in connector bottom) 0.2-1.5 mm² || communication plug-in connector bottom) 0.2-1.5 mm²
• Function Available: external synchronisation to communication || fixed or rolling block
• Mounting Mode: by screws || clip-on || by hook
• Control Type: ADDRESS 1-99 rotary || CT AMPS 5-5000 rotary
• Mounting Support: enclosure || DIN rail
• Analogue Input Type: current 0.333 V 33 kOhm) || voltage single phase 2.5 MOhm) || voltage phase to phase 5 MOhm)
• Width: 46.63 mm
• Display Type: Without Display
• Accuracy Class: class 0.2 ANSI C12.20 || class 1S IEC 62053-24
• Metering Type: active, reactive, apparent energy (signed, four quadrant) || apparent power S, S1, S2, S3 || demand power P, Q, S || active power P, P1, P2, P3 || reactive power Q, Q1, Q2, Q3 || power factor || average current Iavg || peak demand power PM, QM, SM || frequency || voltage U21, U32, U13, V1, V2, V3

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive: Compliant

Environment

• Ambient Air Temperature For Operation: -30-70 °C
• Electromagnetic Compatibility: conducted and radiated emissions FCC Part 15 class A || conducted and radiated emissions EN 61000-6-4 || conducted and radiated emissions EN 61326 + A1 || immunity to conducted disturbances EN 61000-6-2 || immunity to conducted disturbances EN 61326-1 || immunity to radiated fields EN 61000-6-2 || immunity to radiated fields EN 61326-1
• Pollution Degree: 2
• Ambient Air Temperature For Storage: -40-85 °C
• Relative Humidity: 0-95 %
• Ip Degree Of Protection: IP20 IEC 60529
• Measurement Category: category III 277-277 V || category III 300-300 V
• Operating Altitude: < 9842.52 ft (3000 m)
