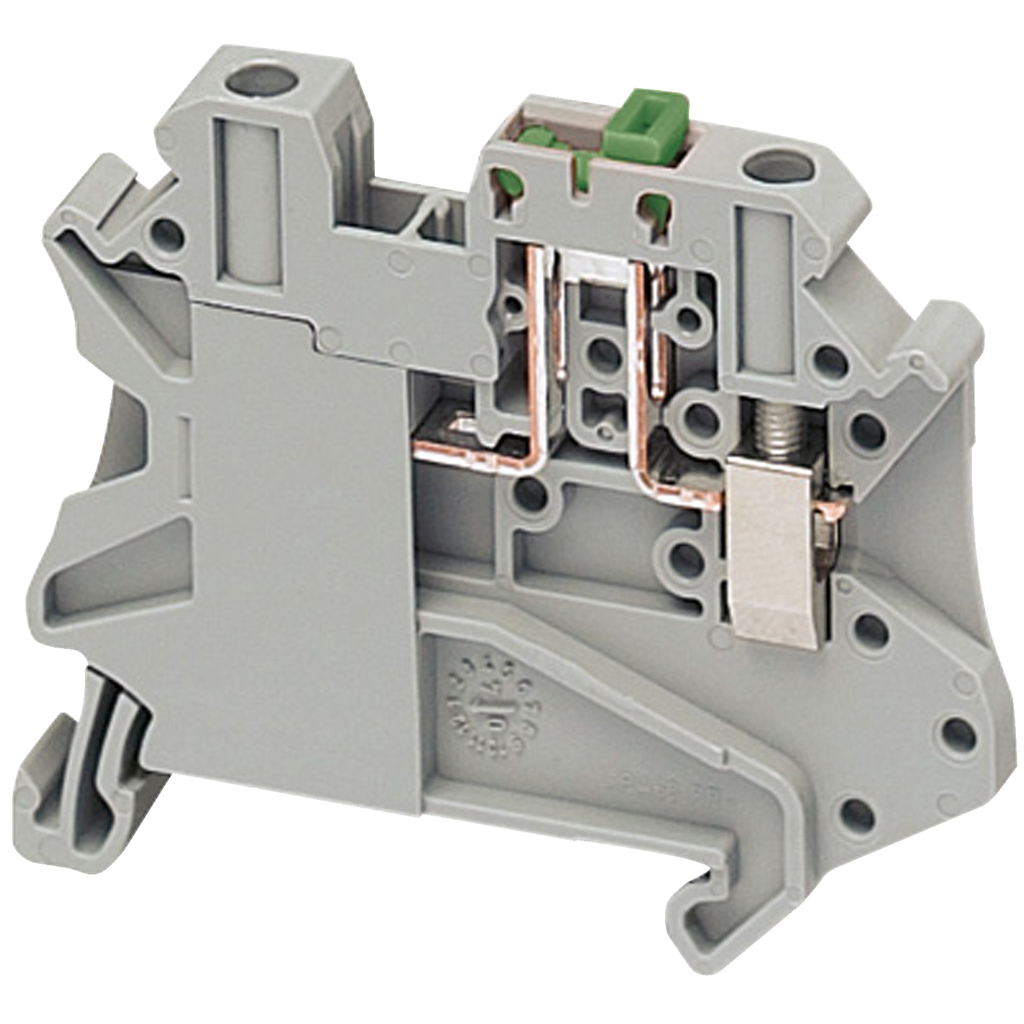

SCREW TERMINAL, KNIFE DISCONNECT, 2 POINTS, 4MM², WITH TEST POINT, OR

• Terminal Block Type: blade disconnect
• Product Or Component Type: terminal block
• Product Name: Linergy TR
• Length: 57.8 mm
• Range: Linergy
• Mounting Mode: clip-on
• Terminal Block Level: 1
• Nominal Cross Section: 4 mm²
• Quantity Per Set: set of 50
• Color: Orange
• Device Short Name: TRV

Contractual warranty

• Warranty: 18 months

Complementary

• Dielectric Loss: 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
• Height: 49.1 mm
• Number Of Terminals: 2
• Cable Cross Section: 0.14-6 mm², flexible without cable end || 0.14-6 mm², solid
• Connections - Terminals: 1 x screw terminal upstream || 1 x screw terminal downstream
• Provided Equipment: test point
• Connection Position: sideways
• Number Of Measurement Input: 2
• Tool Type: connection screwdriver || disconnection screwdriver
• Net Weight: 13.8 g
• Flame Retardance: V0 0.8 mm UL 94
• Wire Stripping Length: 9 mm
• Resistivity: 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
• Dielectric Constant: 3.7 at 1 MHz
• Material: polyamide 6/6 insulating case
• Surface Resistance: 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
• Width: 6.2 mm
• Range Compatibility: Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
• Tightening Torque: 0.6-0.8 N.m
• Product Compatibility: Spacial enclosures
• Line Rated Current: 20-20 A EN/IEC 60947-7-1 || 16-16 A CSA || 16-16 A cURus
• Creep Resistance: 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
• [Ue] Rated Operational Voltage: 500 V EN/IEC 60947-7-1 || 600 V CSA || 600 V cURus

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1304013EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive: Compliant
• Halogen Content Performance: Halogen free plastic parts product

Environment

• Product Certifications: CSA || cURus || EAC
• Ambient Air Temperature For Operation: -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
• Dielectric Strength: 1000 V IEC 60243-1
