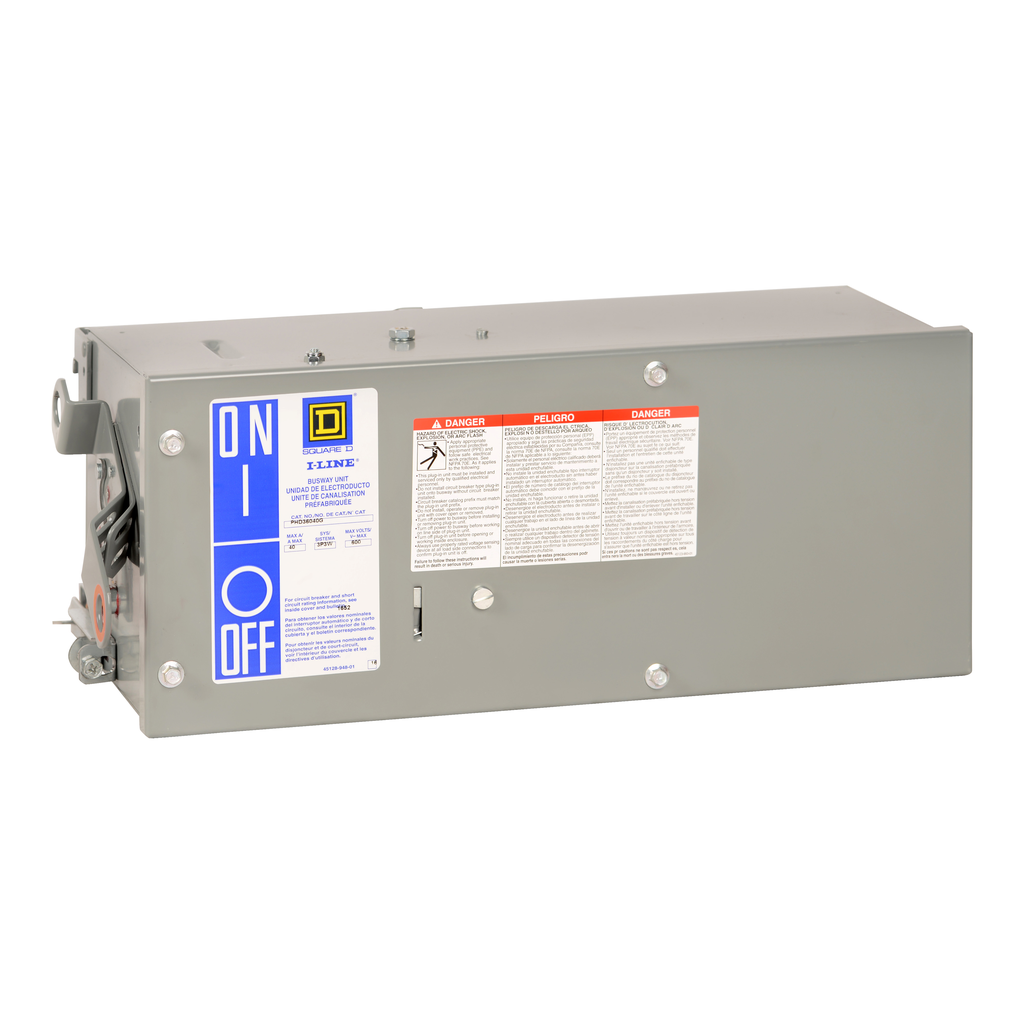

Plug-in unit, I-Line Busway, PowerPacT H, 60A, 3 phase, 3 wire, 600VAC, 18kA, ground

• Product Or Component Type: section

Contractual warranty

• Warranty: 18 months

Complementary

• Disconnector Device Type: associated circuit breaker 60 A 65 kA 240 V || associated circuit breaker 60 A 35 kA 480 V || associated circuit breaker 60 A 18 kA 600 V
• [Ue] Rated Operational Voltage: 600 V AC 50/60 Hz
• Busbar Description: ground
• Level Or Class: class 5600
• Breaking Capacity Code: G
• Fuse Type: H
• Fixing Mode: plug-in
• Wiring Configuration: 3-wire
• Phase: 3 phase

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1410002EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Compliant
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Product Certifications: UL || CSA
