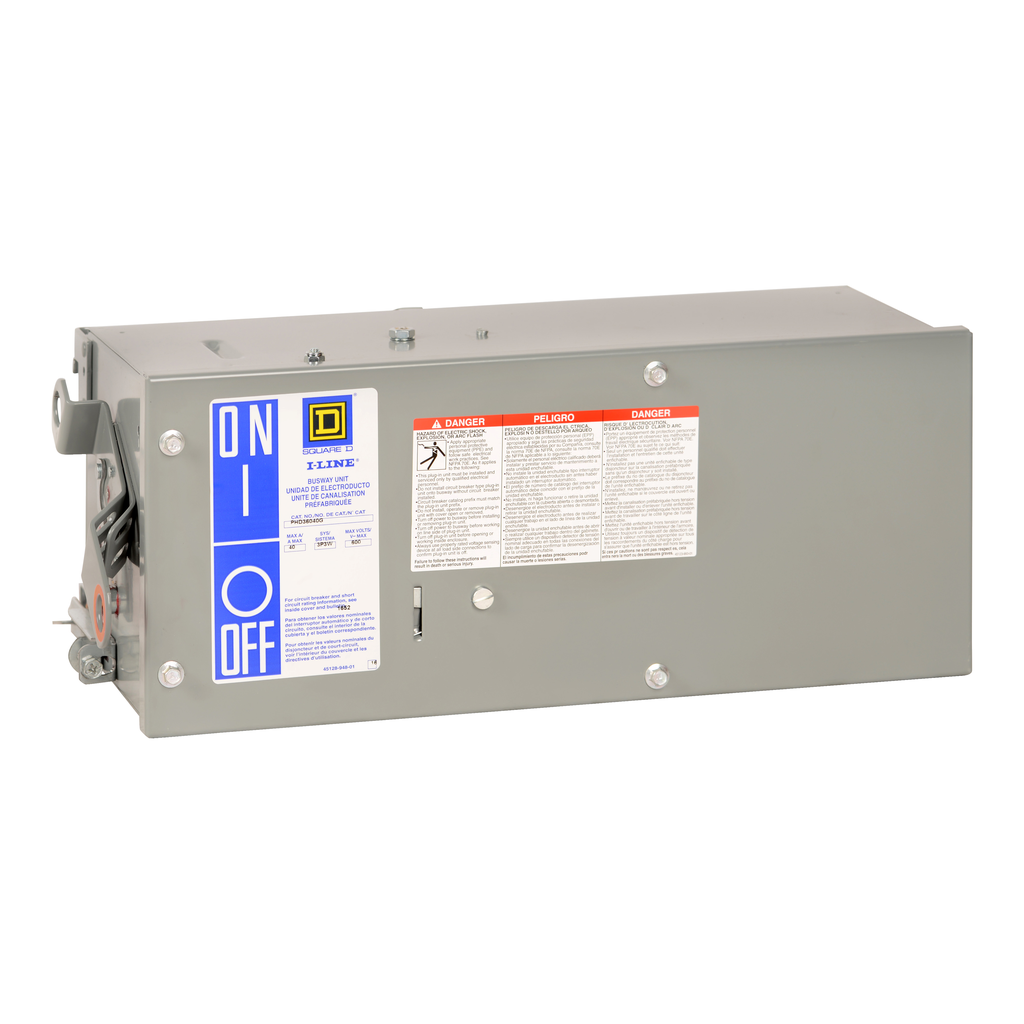

Busway I-Line Breaker Plug-in Unit, 100A, H-Frame, Micrologic 3.2, 25kA-600V, 4W
Busway I-Line Breaker Plug-in Unit, 100A, H-Frame, Micrologic 3.2, 25kA-600V, 4W
PHJ36100GNU31X
Product Description
- Trip Unit Technology: electronic, standard, MicroLogic 3.2, LI
- Range Of Product: I-Line
- Circuit Breaker Type: H-frame
- Product Or Component Type: plug-in unit
Contractual warranty
- Warranty: 18 months
Complementary
- Line Rated Current: 100-100 A
- Height: 216 mm
- Mounting Mode: plug-in
- Poles Description: 3P
- Protection Type: circuit breaker
- Wiring Configuration: 4-wire (integral ground bus)
- Width: 551 mm
- Depth: 232 mm
- Phase: 3 phase
- [Ue] Rated Operational Voltage: 600 V AC
- Awg Gauge: AWG 8...AWG 3/0 1 phase and neutral || AWG 6...AWG 2/0 1 ground
- Breaking Capacity: 100 kA 240 V AC || 65 kA 480 V AC || 25 kA 600 V AC
- [Ics] Rated Service Short-Circuit Breaking Capacity: 80 %
Offer Sustainability
- China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Environmental Disclosure: ENVPEP1410002EN
- Sustainable Offer Status: Green Premium product
- Eu Rohs Directive: Compliant
- Reach Regulation: Reference contains Substances of Very High Concern above the threshold
- California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environment
- Product Certifications: UL listed file E22182 || CSA C22.2 No 27
- Standards: UL 857
Spec Sheet
