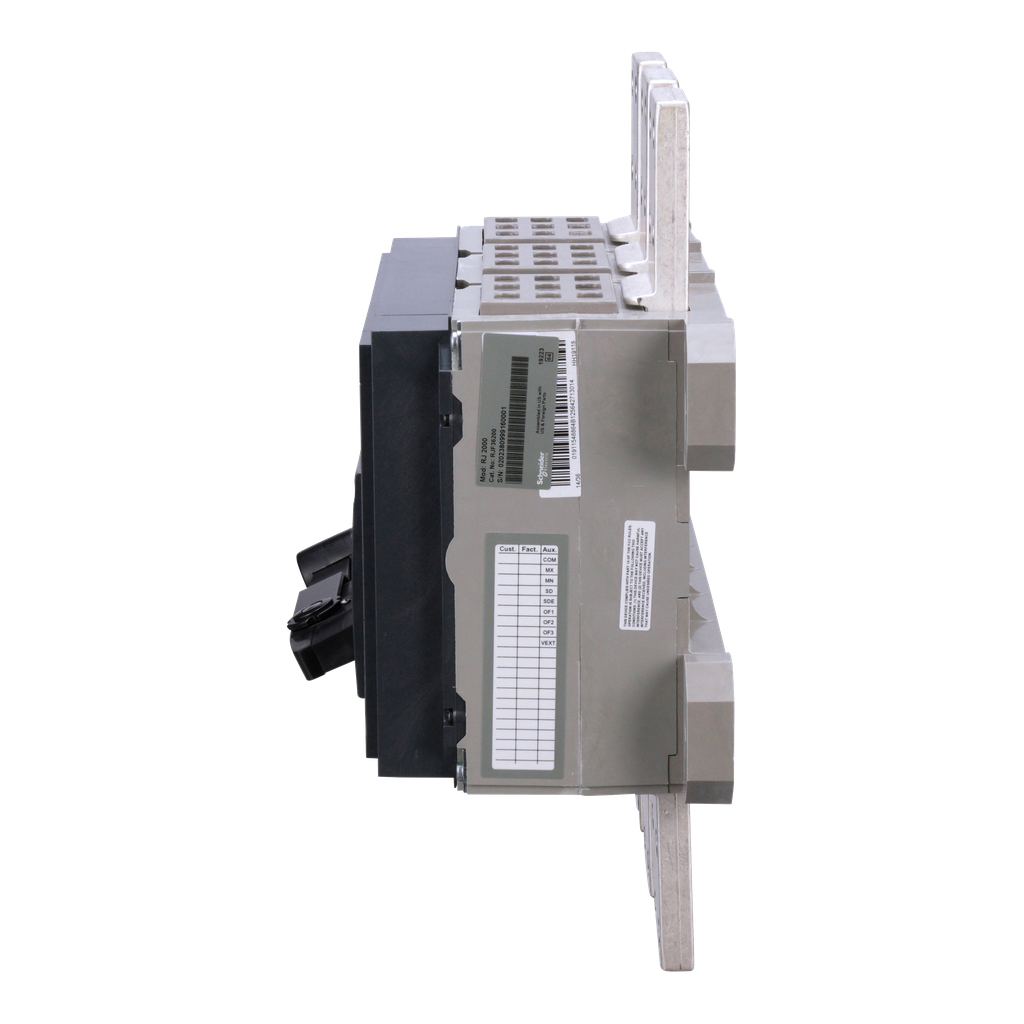

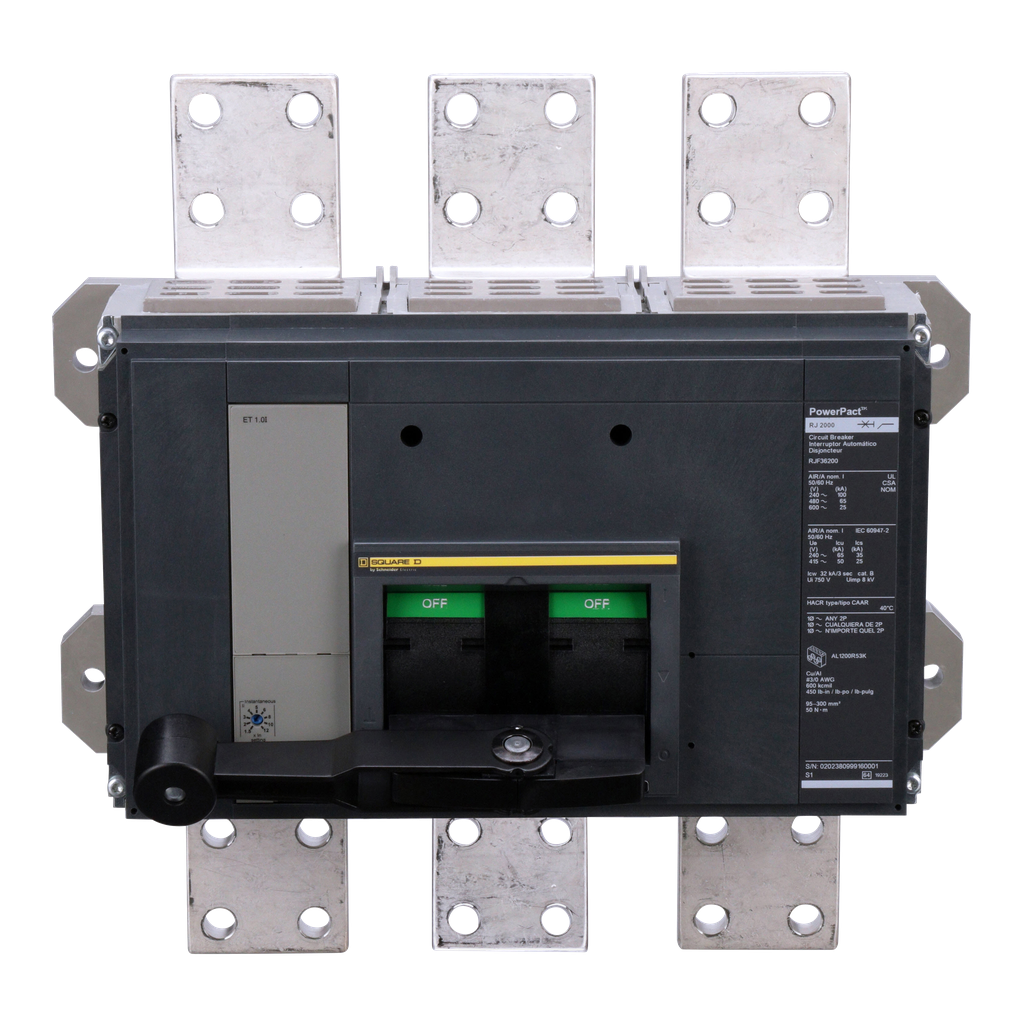

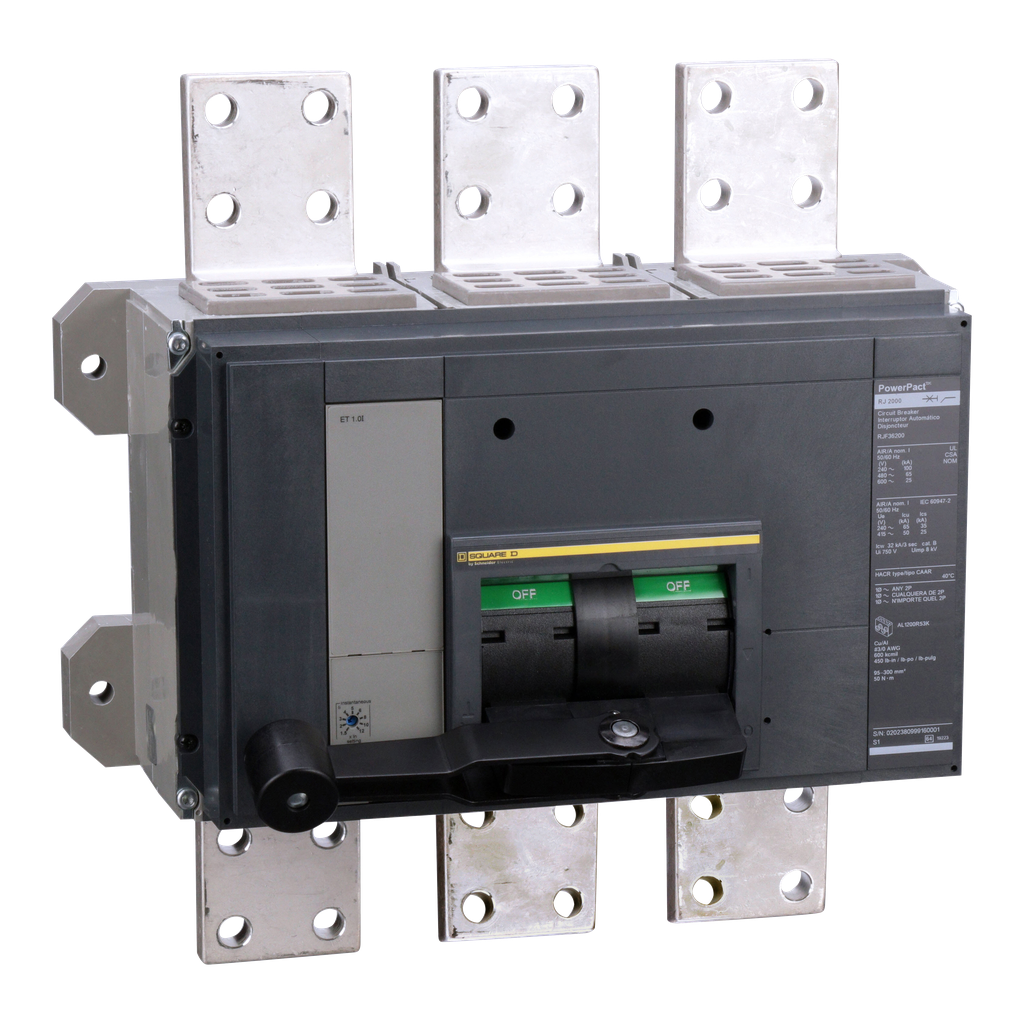

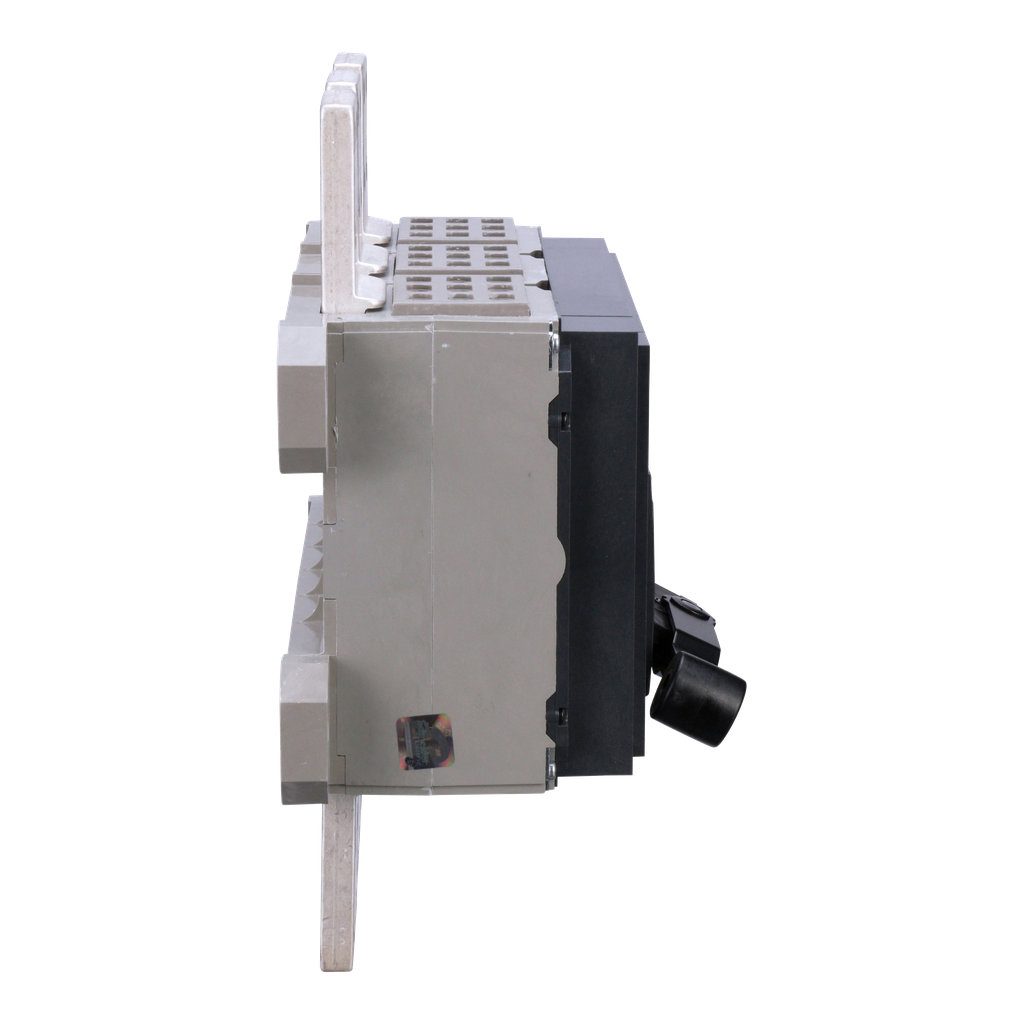

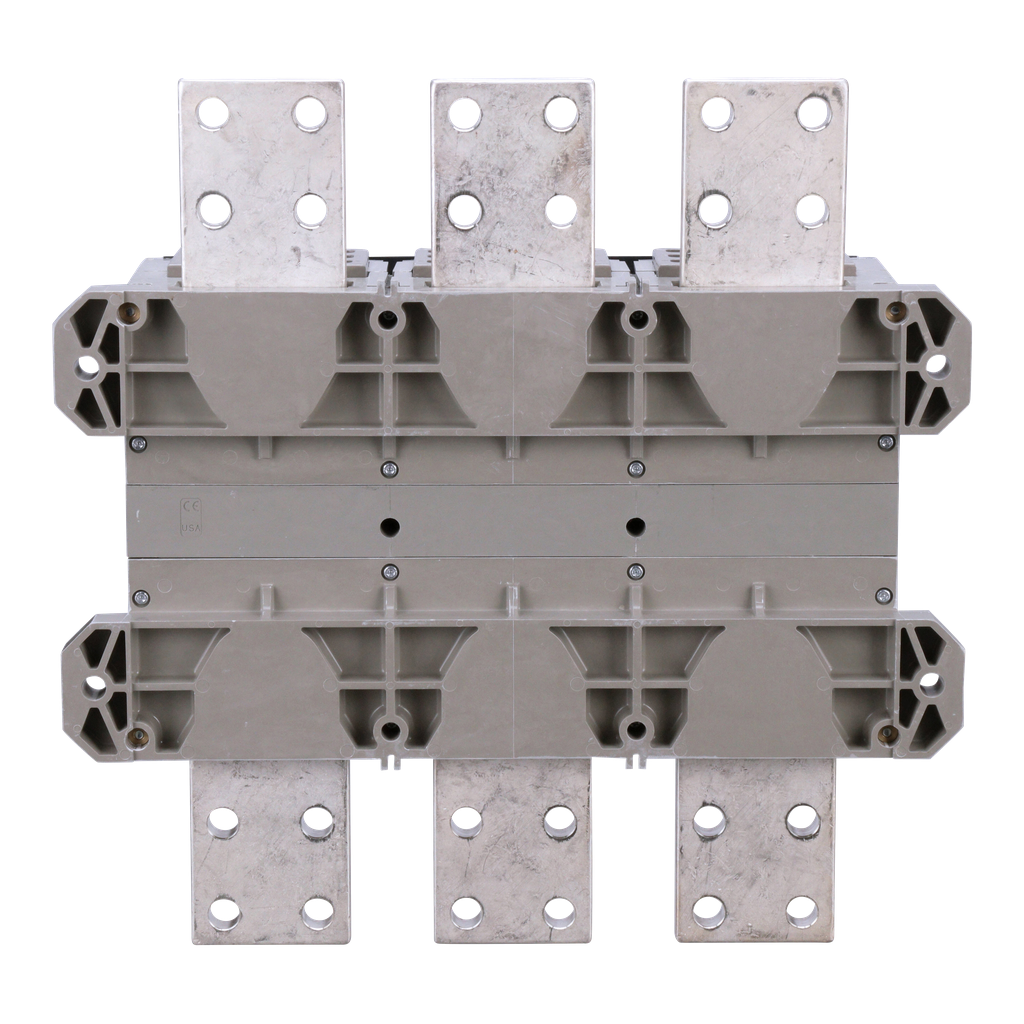

Circuit breaker, PowerPacT R, 2000A, 3 pole, 600VAC, 25kA, busbar, ET 1.0I, 80%

• Product Or Component Type: circuit breaker
• Product Name: PowerPact R
• Range: PowerPact
• Device Application: distribution

Contractual warranty

• Warranty: 18 months

Complementary

• Mounting Mode: unit mount busbar)
• Network Frequency: 50/60 Hz
• Terminal Identifier: AL2500RK
• [Ics] Rated Service Breaking Capacity: 35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
• Trip Unit Technology: electronic, basic, ET 1.0I, I
• Trip Unit Name: ET 1.0I
• Height: 16.24 in
• [Ue] Rated Operational Voltage: 600 V AC 50/60 Hz UL 489
• Tightening Torque: 62-62 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 62-62 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
• Mounting Support: busbar
• Breaking Capacity Code: J
• Magnetic Tripping Current: 3000-24000 A
• Local Signalling: trip indicator
• Number Of Slots: 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
• Electrical Connection: busbar connection line || busbar connection load
• Net Weight: 52 lb(US)
• [Uimp] Rated Impulse Withstand Voltage: 8 kV IEC 60947-2
• Control Type: operating handle
• Circuit Breaker Application: HACR rated
• Wire Stripping Length: 35 mm
• Utilisation Category: category A
• Line Rated Current: 2000-2000 A
• Continuous Current Rating: 80 %
• Breaking Capacity: AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
• [Ui] Rated Insulation Voltage: 750 V IEC 60947-2
• Suitability For Isolation: yes IEC 60947-2
• Poles Description: 3P
• Quantity Per Set: 1
• Awg Gauge: AWG 3/0...750 kcmil aluminium/copper
• Width: 16.53 in
• Depth: 14.49 in

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP2206034EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile: ENVEOLI2206034EN
• Eu Rohs Directive: Compliant
• Halogen Content Performance: Halogen free plastic parts product

Environment

• Ambient Air Temperature For Operation: -25-70 °C
• Standards: UL || CSA || NEMA || NMX J-266 || IEC 60947-2
• Product Certifications: UL || CSA || NOM
• Ip Degree Of Protection: IP40
• Pollution Degree: 3 IEC 60947-1
• Ambient Air Temperature For Storage: -50-85 °C
• Quality Labels: CE
• Operating Altitude: < 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
