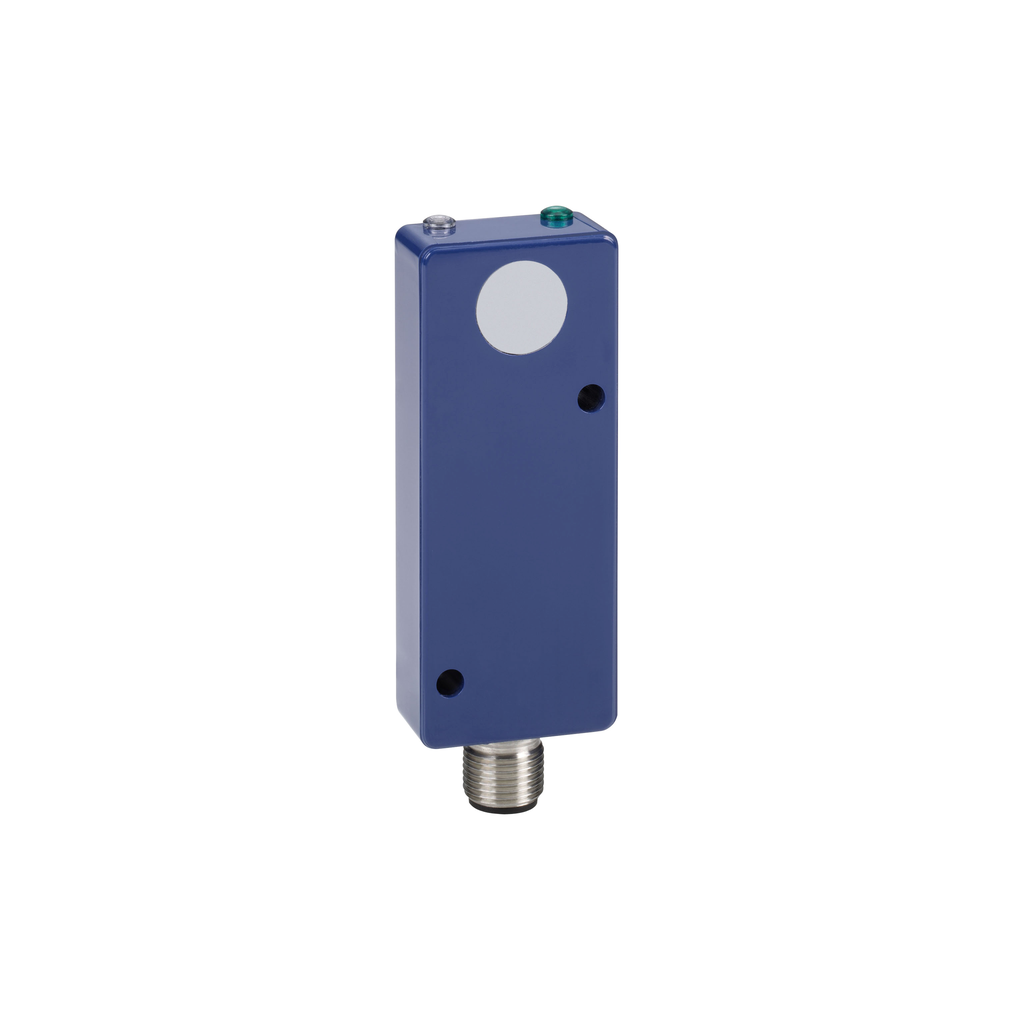

Hyde Park, Ultrasonic sensor, dual level, alarm, subcompact flat profile, 12 24 V DC

• Type Of Sensing Window: fixed
• Series Name: Superprox 600
• Discrete Output Type: PNP/NPN
• Discrete Output Function: 1 NC
• Type Of Output Signal: discrete
• Range Of Product: Hyde Park
• Supply Voltage Limits: 10-28 V DC
• Product Specific Application: dual-level - alarm
• Sensor Type: ultrasonic sensor
• Electrical Connection: male connector M12 4 pins
• Sensor Design: flat form subcompact
• Enclosure Material: ULTEM
• Front Material: silicone rubber
• Material: plastic
• Device Short Name: SM652
• [Us] Rated Supply Voltage: 12...24 V DC overload and short-circuit protection
• Wiring Technique: 4-wire

Contractual warranty

• Warranty: 18 months

Complementary

• Beam Angle: 7 °
• Height: 16.25 mm
• Minimum Size Of Detected Object: cylinder diameter 1.59 mm - up to 63.5 mm sensing distance
• Maximum Switching Current: 100 mA reverse polarity protection
• Transmission Frequency: 500 kHz
• Width: 30 mm
• Depth: 16.25 mm
• [Sn] Nominal Sensing Distance: 76.2-76.2 mm
• Blind Zone: 19-19 mm
• [Sd] Sensing Range: 50.8-76.2 mm
• Length: 84.32 mm
• Net Weight: 0.045 kg
• Current Consumption: 60 mA

Offer Sustainability

• Eu Rohs Directive: Not applicable, out of EU RoHS legal scope
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Product Certifications: UL
• Ambient Air Temperature For Operation: 0-60 °C
• Resistance To Electromagnetic Fields: 10 V/m level 3 IEC 61000-4-3
• Ambient Air Temperature For Storage: -40-100 °C
• Relative Humidity: 100-100 % without condensation
• Nema Degree Of Protection: NEMA 4X indoor use only)
• Vibration Resistance: +/-1 mm 10-55 Hz)IEC 60068-2-6
• Shock Resistance: 30 gn in all 3 axes 11 ms IEC 60068-2-27
• Marking: CE
• Resistance To Fast Transients: 1 kV level 3 IEC 61000-4-4
• Ip Degree Of Protection: IP67
