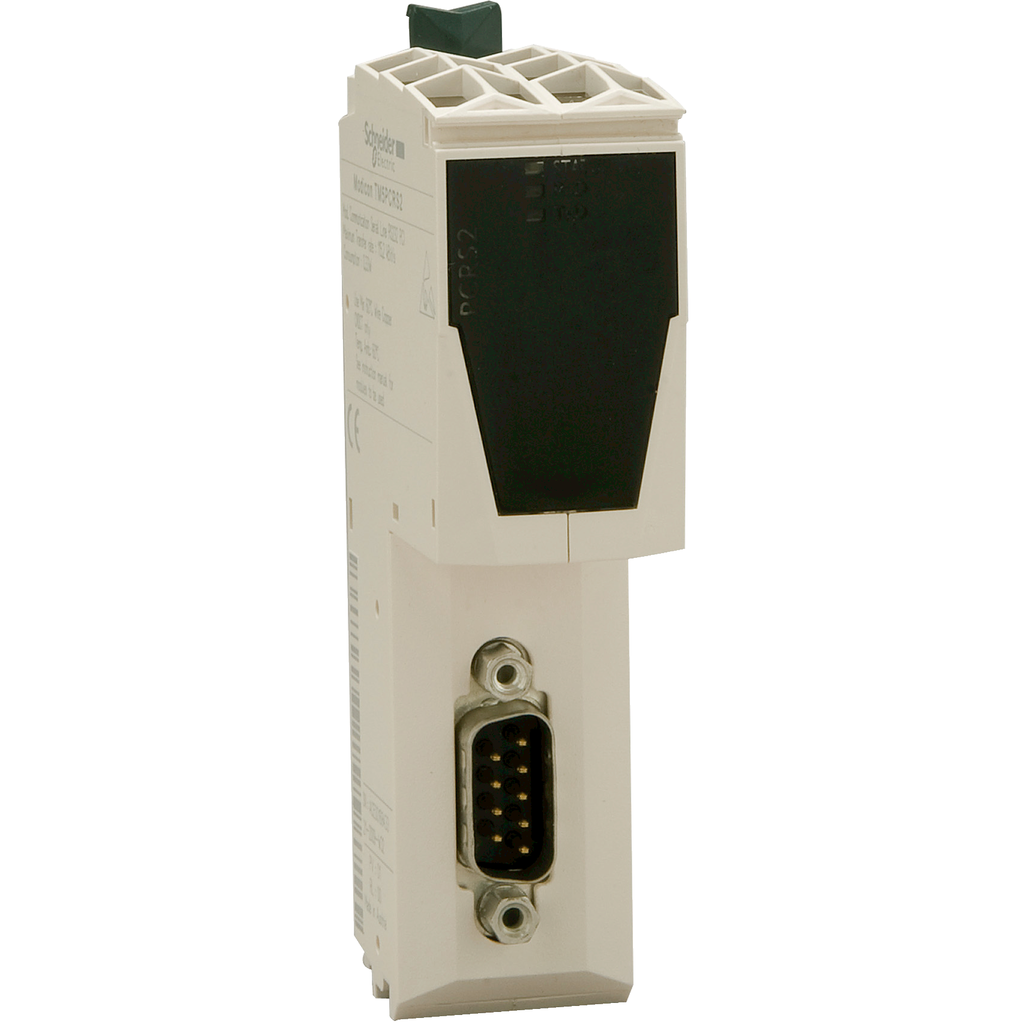

ASCII serial link communication module, Modicon TM5, modbus/ASCII PCI RS232

• Range Of Product: Modicon TM5
• Product Or Component Type: ASCII serial link communication module
• Physical Interface: RS232

Contractual warranty

• Warranty: 18 months

Complementary

• Marking: CE
• Net Weight: 0.05 kg
• Integrated Connection Type: 1 isolated serial link, male SUB-D 9 Modbus ASCII RS232), 115.2 kbit/s max
• Maximum Power Dissipation In W: 0.33 W
• Range Compatibility: Modicon LMC058 || Modicon M258
• Product Compatibility: motion controller || logic controller

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1511025EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1511025EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: C-tick || GOST-R || cULus || CSA
• Resistance To Electromagnetic Fields: 1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80 MHz...2 GHz EN/IEC 61000-4-3
• Standards: CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61131-2 || UL 508
• Storage Altitude: 0-3000 m
• Ambient Air Temperature For Operation: 0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
• Ip Degree Of Protection: IP20IEC 61131-2
• Vibration Resistance: 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
• Shock Resistance: 15 gn 11 ms
• Disturbance Radiated/Conducted: CISPR 11
• Electromagnetic Compatibility: EN/IEC 61000-4-6
• Pollution Degree: 2 IEC 60664
• Surge Withstand: 0.5 kV differential mode EN/IEC 61000-4-5 || 1 kV common mode EN/IEC 61000-4-5
• Ambient Air Temperature For Storage: -25-70 °C
• Relative Humidity: 5-95 % without condensation
• Resistance To Electrostatic Discharge: 4 kV on contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
• Resistance To Fast Transients: 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable) || 2 kV EN/IEC 61000-4-4 power lines)
• Operating Altitude: 0...6561.68 ft (0...2000 m)
