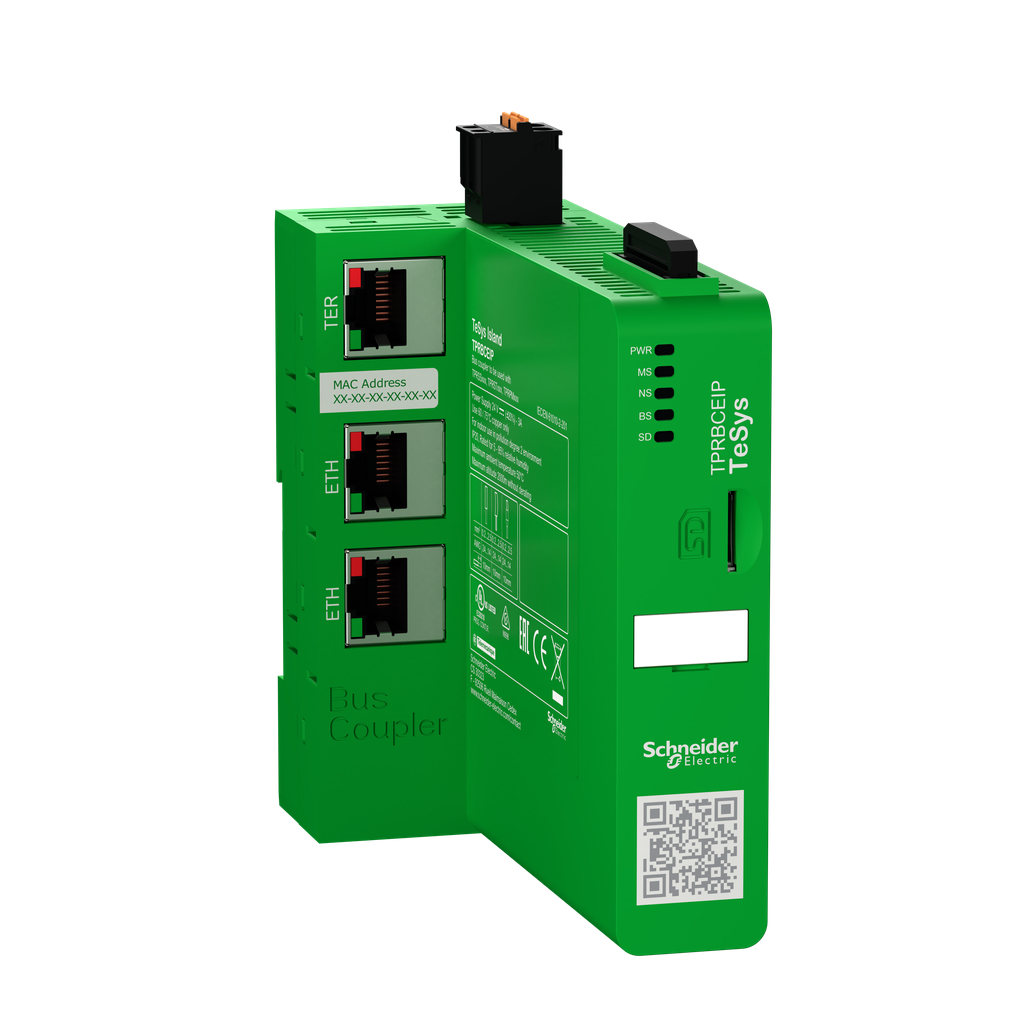

Bus coupler, TeSys island, 24VDC, Ethernet switch (EtherNet IP / Modbus TCP)

• Rated Current: 3 A maximum
• Exchange Mode: half duplex, full duplex, autonegotiation Ethernet
• Protection Type: external fuse, 3 A fast power supply || reverse polarity protection power supply
• Product Or Component Type: bus coupler
• Product Name: TeSys island
• Local Signalling: 1 LED green/yellow PWR power supply status || 1 LED green/red MS module status || 1 LED green/red NS network status || 1 LED green/red BS internal bus status || 1 LED green/red SD SD card access (SD)
• Power Dissipation In W: 7 W maximum
• Range: TeSys
• Device Presentation: point of connection between a group of starters and an automation controller || management of the complete island up to 20 modules
• Communication Service: Ethernet/IP adapter || Modbus TCP server || DHCP client || BOOTP client || SNMP client || SNTP client || auto MDI/MDX function
• Function Available: full integration with SoMove/MachineExpert for the programming of the island || one single 24V DC power supply for the complete island || two fieldbus ports for communication with an automation controller || one service port with an embedded webserver for maintenance
• Communication Port Protocol: EtherNet/IP || Modbus TCP
• Product Compatibility: TPRST motor starter || TPRSS SIL motor starter || TPRPM power module || TPRSM SIL interface module || TPRVM voltage interface module || TPRAN analog IO module || TPRDG digital IO module
• Supply Voltage Limits: 20.4-28.8 V DC
• Integrated Connection Type: 2 RJ45 female Ethernet IP/Modbus TCP 10/100BASE-T, fieldbus port || 1 RJ45 female Ethernet TCP/IP, service port || 1 micro SD card port
• [Us] Rated Supply Voltage: 24 V DC
• Device Short Name: TPRBC

Contractual warranty

• Warranty: 18 months

Complementary

• Mounting Mode: horizontal and vertical 35 mm symmetrical rail)
• Height: 118 mm
• Product Certifications: UL || CSA || EAC || Achilles level 2
• Standards: EN/IEC 60947-4-1 || CSA C22.2 No 61010-2-201 || UL 61010-2-201 || EN/IEC 61010-2-201
• Connections - Terminals: power supply removable spring terminal block 2 2.5-2.5 mm² AWG 14)rigid or flexible
• Net Weight: 0.204 kg
• Cybersecurity: Achilles certified
• Width: 50 mm
• Depth: 114 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1904009EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile: ENVEOLI1904009EN
• Eu Rohs Directive: Compliant
• Halogen Content Performance: Halogen free plastic parts product

Environment

• Ambient Air Temperature For Operation: -10-60 °C
• Shock Resistance: 15 gn 11 ms) IEC 60068-2-27
• Vibration Resistance: 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 || 1 gn 13-200 Hz) IEC 60068-2-6
• Electromagnetic Compatibility: electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || communication: fast transients immunity test, level 3, 1 kV, conforming to EN/IEC 61000-4-4 || power supply: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4 || communication: surge immunity test (common mode), level 3, 1 kV, conforming to EN/IEC 61000-4-5 || power supply: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
• Pollution Degree: 2
• Ambient Air Temperature For Storage: -25-70 °C
• Protective Treatment: TC
• Relative Humidity: 5-95 %
• Ip Degree Of Protection: IP20
• Operating Altitude: 0...6561.68 ft (0...2000 m) without derating
• Fire Resistance: 960 °C UL 94
