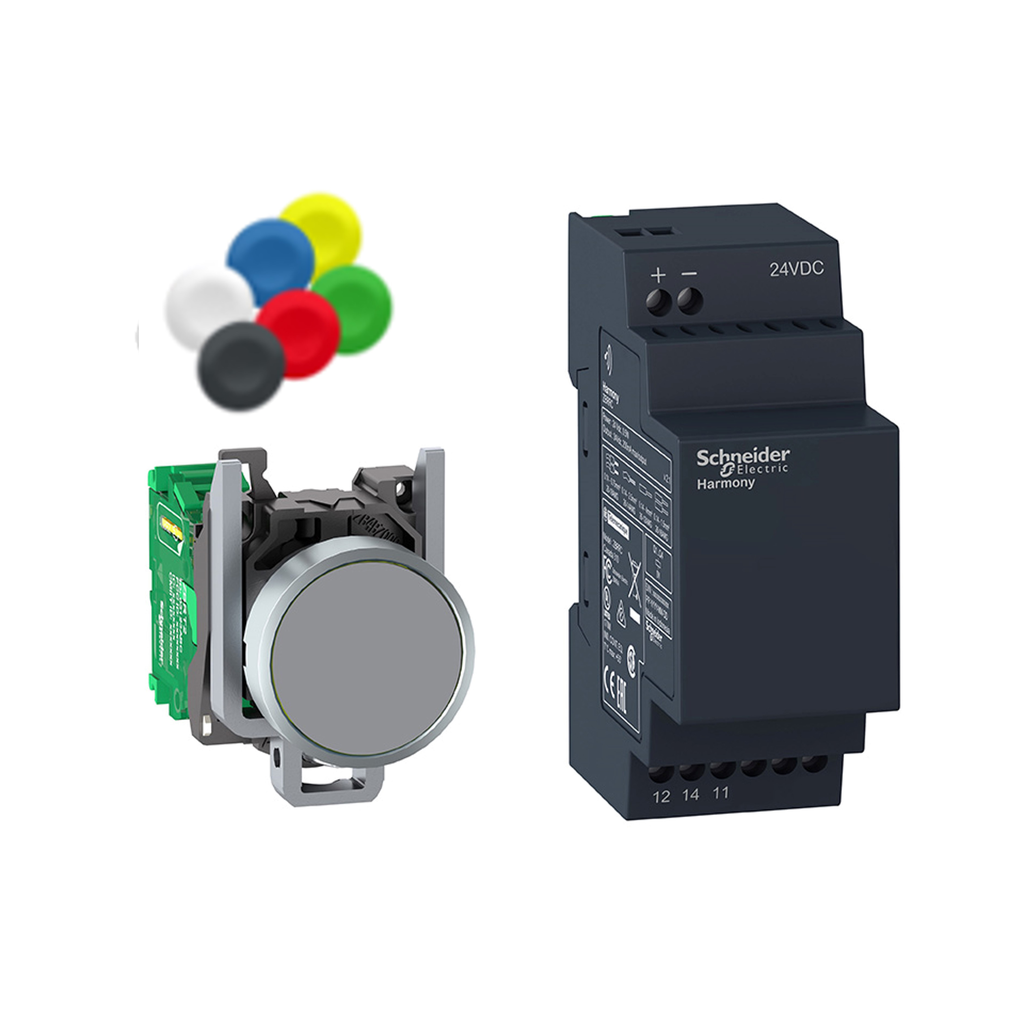

Wireless and batteryless package, Harmony XB5R, Wireless metal 22mm black pushbutton, non configurable receiver, 24V DC

• Antenna Type: omnidirectional
• Range Of Product: Harmony XB4R
• Level Or Class: 5M00G7W
• Product Or Component Type: wireless and batteryless package
• Head Material: metal
• Device Short Name: XB4R
• Transmission Frequency: 2405 MHz transmitter || 2405 MHz receiver

Contractual warranty

• Warranty: 18 months

Complementary

• [Us] Rated Supply Voltage: 24 V
• [Us] Rated Supply Voltage: 24 V DC
• Control Type: wireless and batteryless push-button Ø 22 mm assembled on fixing collar
• Modulation Technique: O-QPSK
• Max Power Consumption In W: 1 mW
• Number Of Channels: 1
• Type Of Receiver: non-programmable receiver 1 relay)
• Compatibility Code: XB4R
• Customizable: no
• Kit Composition: 1 22 mm || 1 fixing collars || 1 push-button head 22 mm || 1 transmitter || 1 receiver || 1 set of caps
• Communication Port Protocol: Zigbee IEEE 802.15.4
• Antenna Gain: 0 dBi
• Bandwidth: 5-5 MHz

Offer Sustainability

• China Rohs Regulation: X
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environment

• Product Certifications: CCC || C-tick || GOST || CSA || UL
• Standards: UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1
• Marking: CE
• Radio Agreement: ARIB T66 || RSS || ICASA || SRRC || FCC || ANATEL
