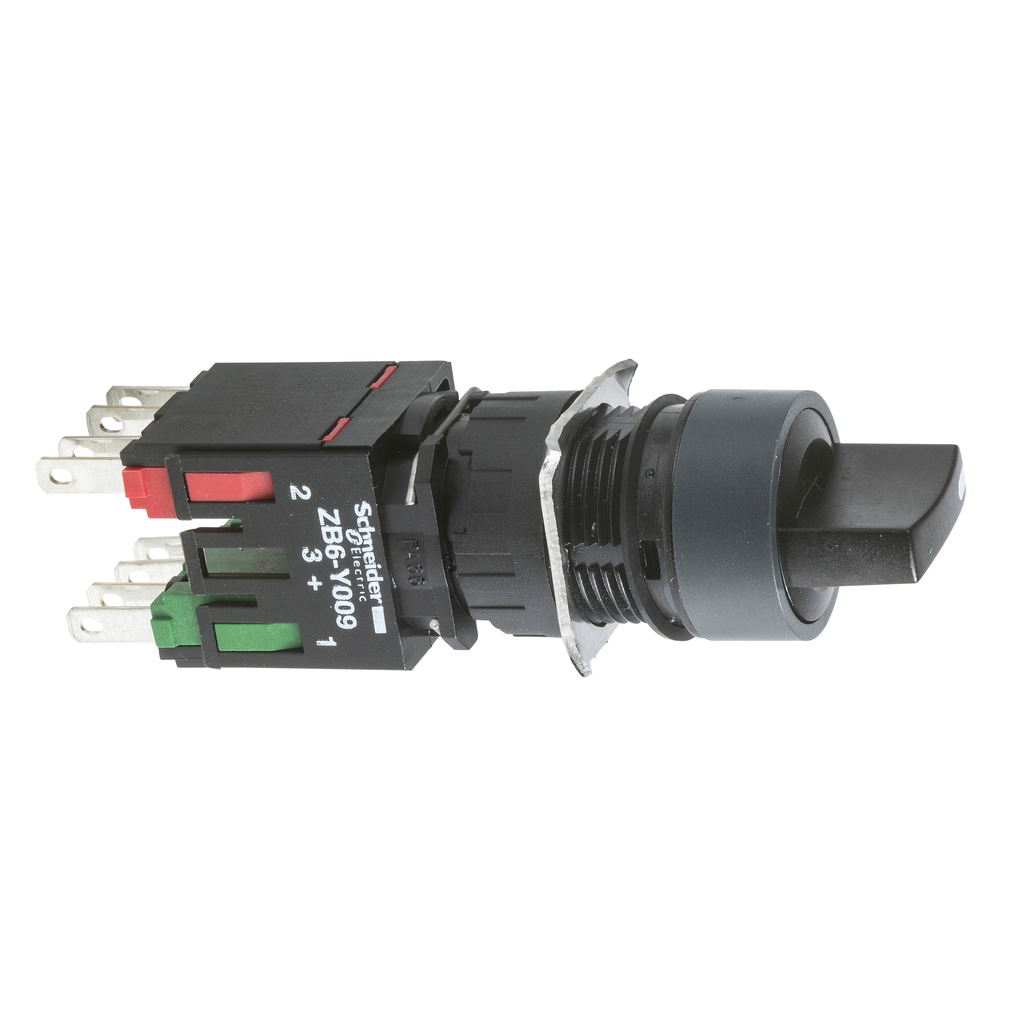

Selector switch, Harmony XB6, black round, 16mm, 3 positions, stay put, 1NO

• Range Of Product: Harmony XB6
• Mounting Diameter: 16 mm
• Type Of Operator: stay put
• Product Or Component Type: complete selector switch
• Shape Of Signaling Unit Head: round
• Contacts Type And Composition: 1 NO + 1 NC
• Sale Per Indivisible Quantity: 1
• Bezel Material: plastic
• Contact Operation: slow-break
• Operator Profile: black standard handle
• Operator Position Information: 3 positions 60°
• Operating Position: any position
• Device Short Name: XB6

Contractual warranty

• Warranty: 18 months

Complementary

• Height: 18 mm
• Terminals Description Iso N°1: (13-14)NO
• Short-Circuit Protection: 6 A cartridge fuse gG
• Contacts Material: silver alloy (Ag/Ni)
• Positive Opening: with EN/IEC 60947-5-1 appendix K
• Net Weight: 0.021 kg
• [Uimp] Rated Impulse Withstand Voltage: 4 kV EN/IEC 60947-1
• Electrical Durability: 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
• Connections - Terminals: Faston connectors 2.8 x 0.5 mm
• [Ui] Rated Insulation Voltage: 250 V 3)EN/IEC 60947-1
• [Ie] Rated Operational Current: 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
• Mechanical Durability: 500000 cycles
• Electrical Reliability: λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN 60947-5-4
• Width: 18 mm
• Depth: 68 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1710010EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1710010EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: UL || CSA || CCC || GOST
• Ambient Air Temperature For Operation: -25-70 °C
• Standards: EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || JIS C 852 || CSA C22.2 No 14 || JIS C8201-1
• Shock Resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance: +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
• Ip Degree Of Protection: IP65 IEC 60529
• Ambient Air Temperature For Storage: -40-70 °C
• Nema Degree Of Protection: NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
• Electrical Shock Protection Class: class II IEC 61140
• Protective Treatment: TC
