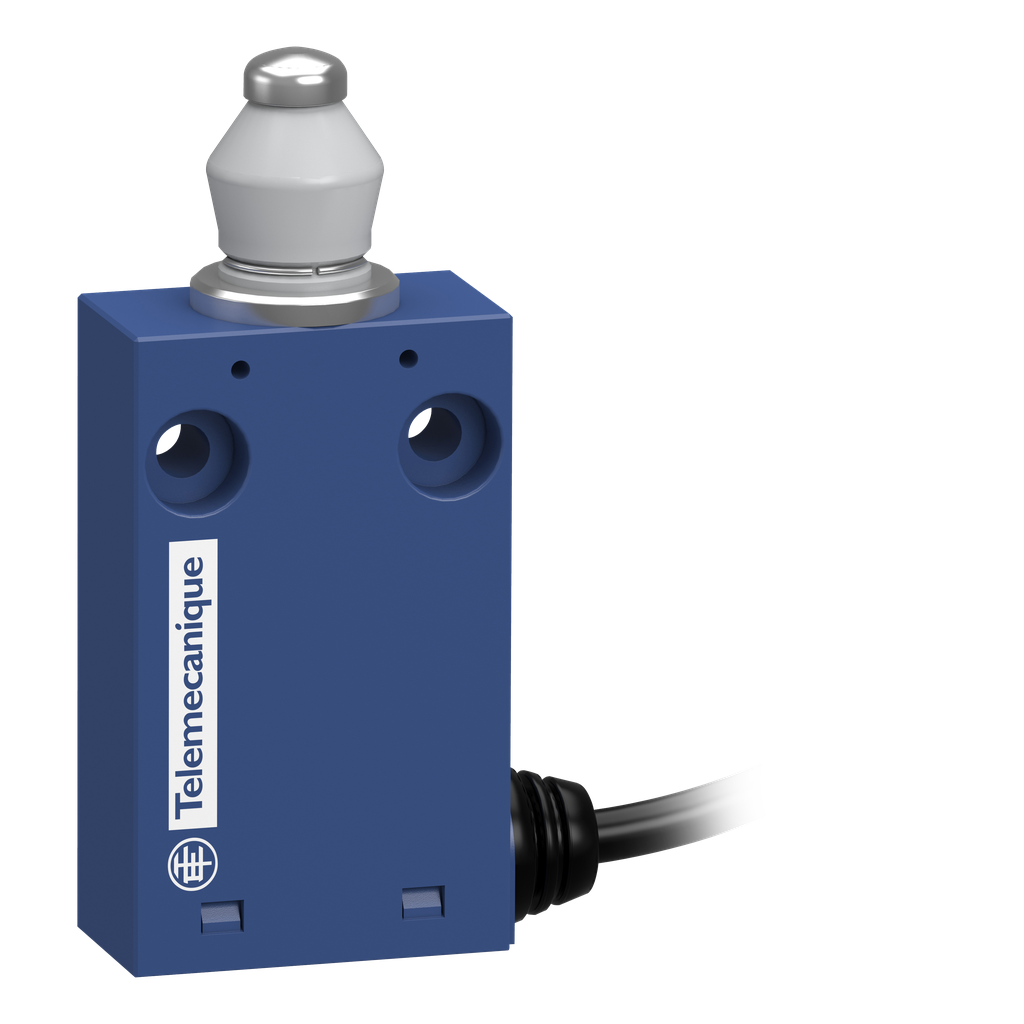

Product Description
- Movement Of Operating Head: rotary
- Range Of Product: Telemecanique Limit switches XC Standard
- Fixing Mode: by the body
- Type Of Operator: spring return roller lever thermoplastic
- Sensor Design: miniature
- Product Or Component Type: limit switch
- Head Material: zamak
- Material: plastic
- Head Type: plunger head
- Type Of Approach: lateral approach, 2 directions
- Series Name: standard format
- Contacts Type And Composition: 1 NC + 1 NO
- Body Type: fixed
- Contact Operation: snap action
- Body Material: plastic
- Device Short Name: XCMH
- Number Of Poles: 2
Contractual warranty
- Warranty: 18 months
Complementary
- Height: 94-94 mm
- Short-Circuit Protection: 6 A cartridge fuse gG
- Electrical Connection: fixed cable
- Cable Length: 1 m
- Net Weight: 0.1 kg
- [Uimp] Rated Impulse Withstand Voltage: 4 kV IEC 60664 || 4 kV IEC 60947-1
- Switch Actuation: by 30° cam
- [Ui] Rated Insulation Voltage: 300 V 3)UL 508 || 300 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
- Electrical Durability: 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening Minimum Force: 0.5 N
- Positive Opening: with
- Contacts Insulation Form: Zb
- Mechanical Durability: 5000000 cycles
- Maximum Actuation Speed: 1.5 m/s
- Wire Insulation Material: PvR
- Minimum Force For Tripping: 0.1 N
- Cable Composition: 4 x 0.34 mm²
- Tracks: 24/31 mm
- Contact Code Designation: C300, AC-15 (Ue = 240 V), Ie = 0.75 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
- Width: 30 mm
- Depth: 16 mm
- Maximum Resistance Across Terminals: 25 MOhm IEC 60255-7 category 3
Offer Sustainability
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Reach Regulation: Reference contains Substances of Very High Concern above the threshold
- California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications: CSA || CCC || UL
- Ik Degree Of Protection: IK04 EN 50102
- Ambient Air Temperature For Operation: -25-70 °C
- Standards: UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60204-1
- Shock Resistance: 25 gn 18 ms IEC 60068-2-27
- Vibration Resistance: 5 gn 10-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection: IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529
- Ambient Air Temperature For Storage: -40-70 °C
- Electrical Shock Protection Class: class II IEC 61140 || class II NF C 20-030
- Protective Treatment: TC
