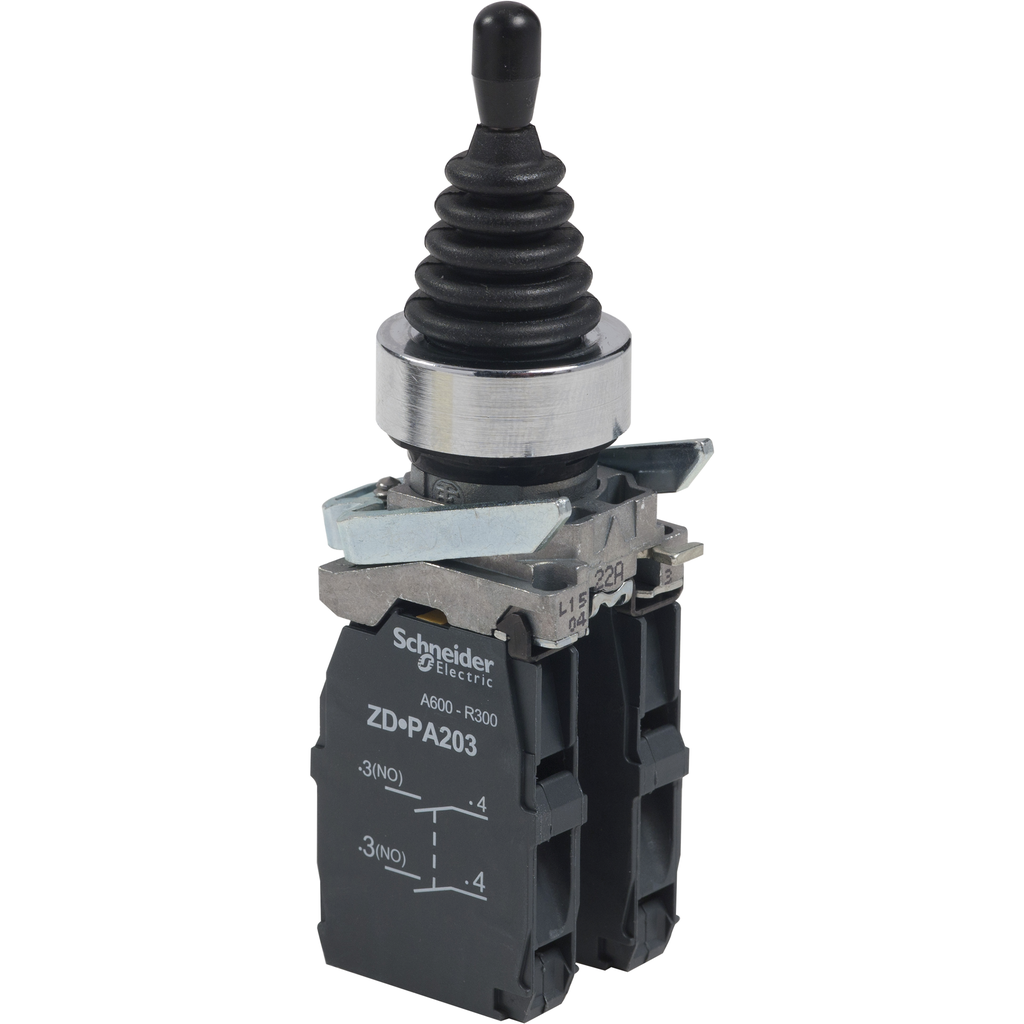

XD4 joystick controller with 50mm shaft

• Sale Per Indivisible Quantity: 1
• Bezel Material: chromium plated metal
• Mounting Diameter: 30 mm
• Product Or Component Type: joystick controller
• Device Short Name: XD4
• Fixing Collar Material: zamak

Contractual warranty

• Warranty: 18 months

Complementary

• Contacts Usage: standard
• Shape Of Signaling Unit Head: round
• Device Presentation: complete product
• Resistance To High Pressure Washer: 7000000 Pa 55 °C 0.1 m

Offer Sustainability

• China Rohs Regulation: X
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP110718EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environment

• Product Certifications: BV
• Ik Degree Of Protection: IK03 IEC 50102
• Ambient Air Temperature For Operation: -25-70 °C
• Ambient Air Temperature For Storage: -40-70 °C
• Standards: CSA C22.2 No 14
• Nema Degree Of Protection: NEMA 13 || NEMA 4X
• Electrical Shock Protection Class: class I IEC 60536
• Shock Resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
