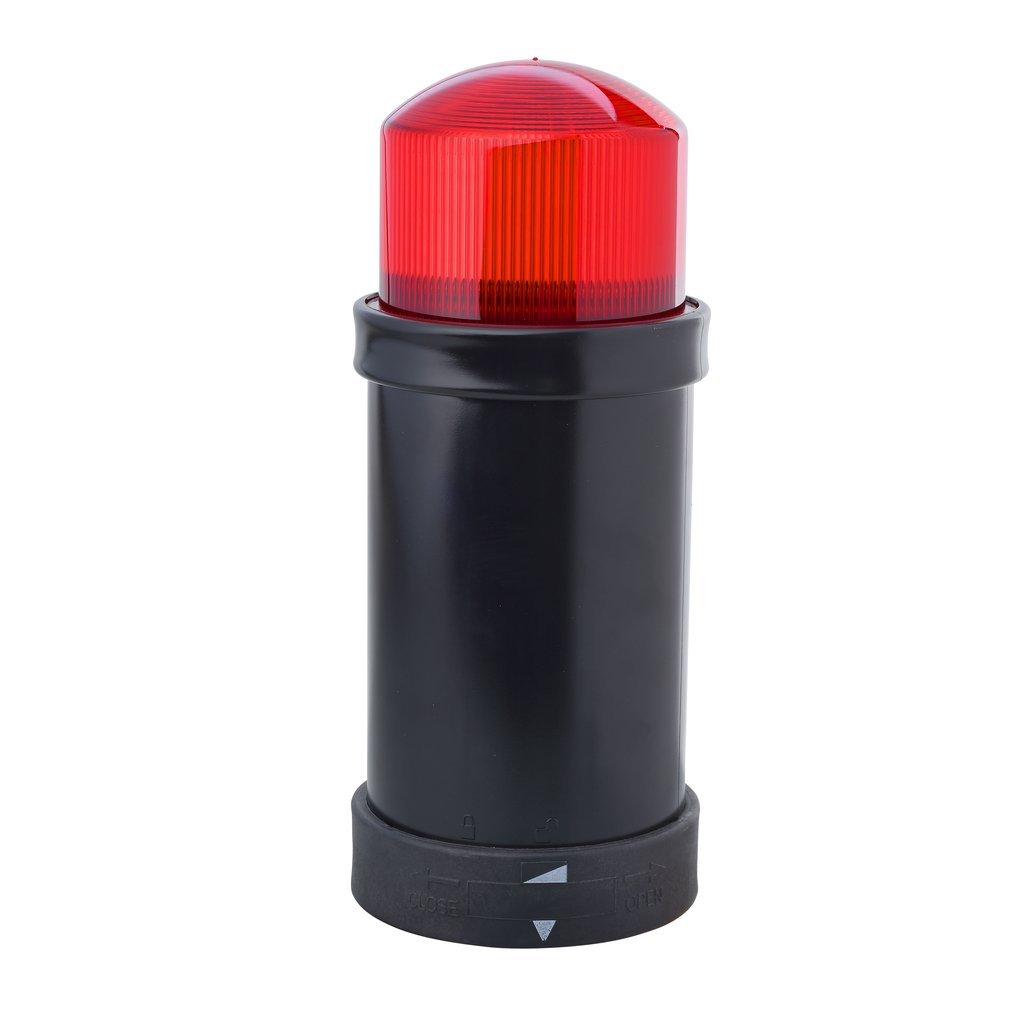

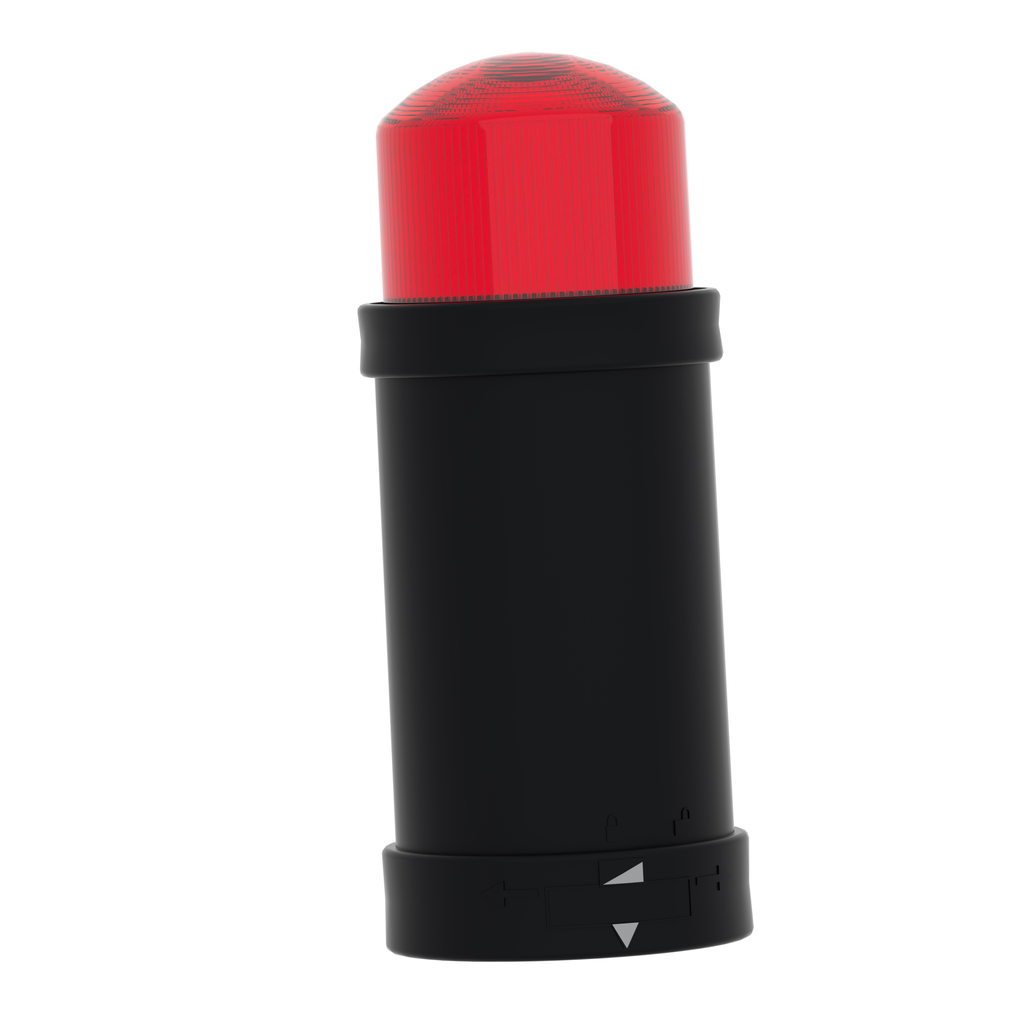

Indicator bank, Harmony XVB, illuminated unit, plastic, red, 70mm, integral flash discharge tube, 5joule, 24V AC/DC

• Flash Energy: 5 J
• Range Of Product: Harmony XVB Universal
• Mounting Diameter: 70 mm
• Light Source: integral flash discharge tube, red
• Product Or Component Type: indicator bank
• Component Name: XVBC
• Material: polycarbonate
• Signalling Type: flashing
• Bulb Type: flash discharge tube
• Beacon Or Indicator Bank Unit Type: illuminated unit
• [Us] Rated Supply Voltage: 24 V AC/DC

Contractual warranty

• Warranty: 18 months

Complementary

• Current Consumption: < 350 mA DC || < 550 mA AC
• Net Weight: 0.295 kg
• [Uimp] Rated Impulse Withstand Voltage: 4 kV IEC 60947-1
• Cad Overall Height: 157 mm
• Connections - Terminals: screw clamp terminals, <= 1 x 1.5 mm² with cable end
• [Ui] Rated Insulation Voltage: 250 V IEC 60947-1
• Nominal Voltage Limit: 0.85...1.1 Un IEC 60947-5-1
• Flashing Frequency: 1-1 Hz
• Assembly Style: customer assembly, up to 5 units
• Cad Overall Width: 70 mm
• Cad Overall Depth: 70 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP070907EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: CCC || EAC || CSA C22-2 No 14 || UL 508
• Standards: EN/IEC 60947-5-1
• Ip Degree Of Protection: IP65 on fixing base XVBZ0. IEC 60529 || IP66 on base unit IEC 60529
• Ambient Air Temperature For Storage: -40-70 °C
• Nema Degree Of Protection: Type 4X UL indoor)
• Electrical Shock Protection Class: class I on support tube IEC 61140 || class II on base unit IEC 61140
• Protective Treatment: TC
