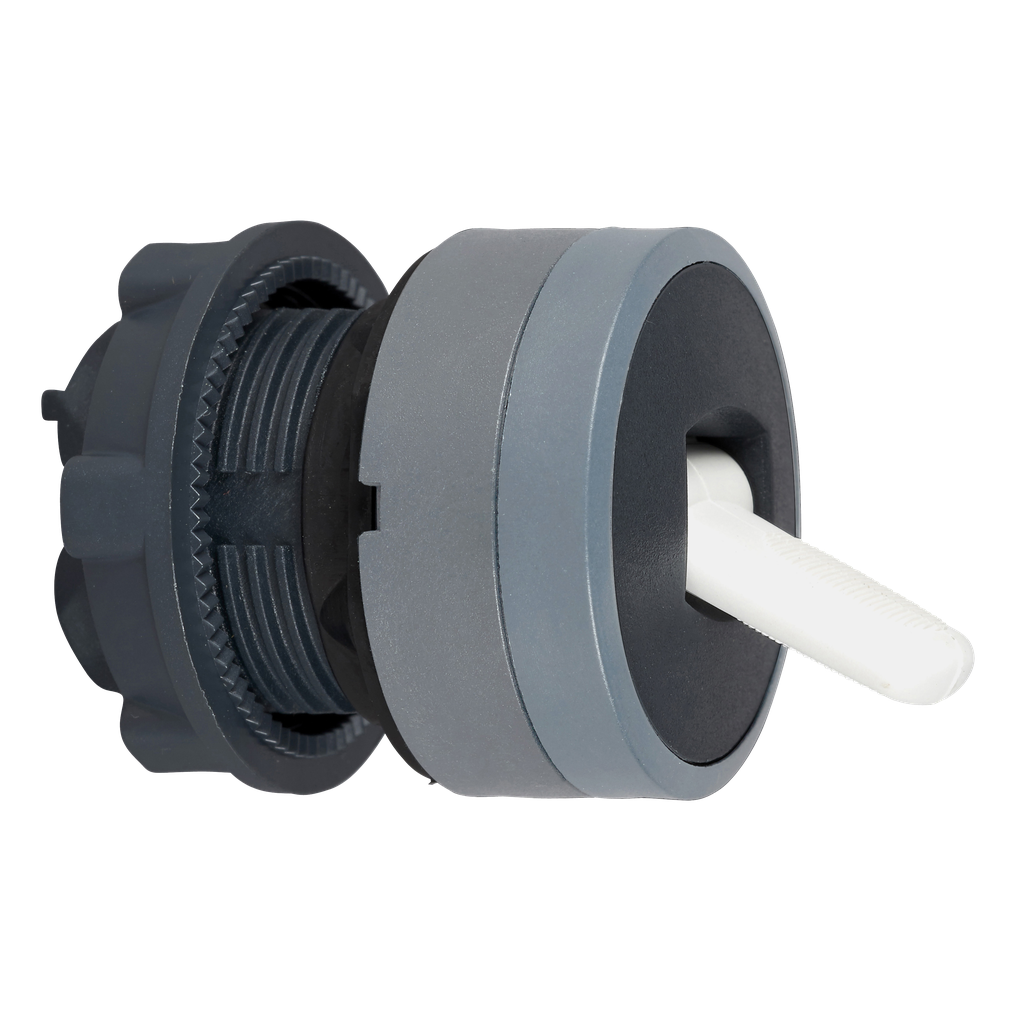

Toggle switch head, Harmony XB5, plastic, black, 22mm, 2 positions, spring return, grey bezel

• Sale Per Indivisible Quantity: 1
• Operator Additional Information: black lever
• Range Of Product: Harmony XB5
• Bezel Material: plastic colour plated grey
• Operator Profile: black toggle switch
• Operator Position Information: 2 positions 90°
• Mounting Diameter: 22 mm
• Type Of Operator: spring return
• Product Or Component Type: head for selector switch
• Shape Of Signaling Unit Head: round
• Device Short Name: ZB5
• Head Type: standard

Complementary

• Mechanical Durability: 500000 cycles
• Electrical Composition Code: C11 3 single front mounting || C12 6 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C13 6 single and double front mounting
• Station Name: XALD 1...5 cut-outs || XALK 2...5 cut-outs
• Cad Overall Width: 29 mm
• Cad Overall Depth: 45 mm
• Net Weight: 0.023 kg
• Cad Overall Height: 29 mm
• Device Presentation: basic element

Offer Sustainability

• China Rohs Regulation: X
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes

Environment

• Product Certifications: UL Listed || BV || GL || LROS (Lloyds register of shipping) || DNV || CSA
• Ik Degree Of Protection: IK06
• Ambient Air Temperature For Operation: -40-70 °C
• Ambient Air Temperature For Storage: -40-70 °C
• Overvoltage Category: class II IEC 60536
• Standards: UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-1
• Nema Degree Of Protection: NEMA 13 || NEMA 4X
• Shock Resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
• Protective Treatment: TH
• Ip Degree Of Protection: IP66 IEC 60529
• Resistance To High Pressure Washer: 7000000 Pa 55 °C 0.1 m
