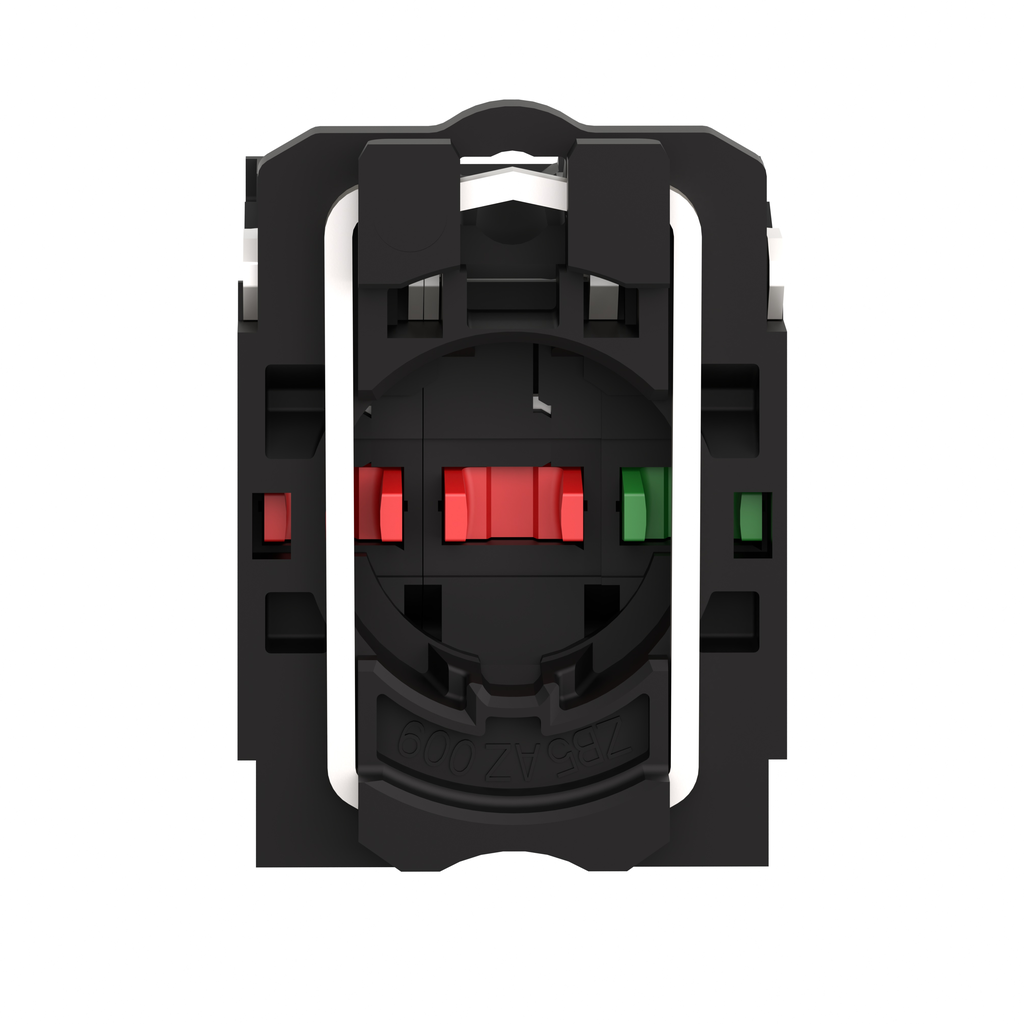

Single contact block with body fixing collar, Harmony XB5, plastic, screw clamp terminal, 1NO+2NC

• Range Of Product: Harmony XB5
• Contact Block Type: single
• Product Or Component Type: complete body/contact assembly
• Fixing Collar Material: plastic
• Head Type: standard
• Connections - Terminals: screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
• Contacts Type And Composition: 1 NO + 2 NC
• Sale Per Indivisible Quantity: 1
• Contact Operation: slow-break
• Device Short Name: ZB5

Contractual warranty

• Warranty: 18 months

Complementary

• Contacts Usage: standard contacts
• Terminals Description Iso N°1: (11-12)NC || (3-4)NO
• Short-Circuit Protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
• Operating Travel: 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
• Contacts Material: silver alloy (Ag/Ni)
• Positive Opening: with EN/IEC 60947-5-1 appendix K
• [Ith] Conventional Free Air Thermal Current: 10 A EN/IEC 60947-5-1
• Net Weight: 0.04 kg
• [Uimp] Rated Impulse Withstand Voltage: 6 kV EN 60947-1
• Cad Overall Height: 42 mm
• Device Presentation: basic sub-assemblies
• Electrical Durability: 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
• [Ui] Rated Insulation Voltage: 600 V 3)EN 60947-1
• [Ie] Rated Operational Current: 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
• Mechanical Durability: 10000000 cycles
• Electrical Reliability: λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
• Tightening Torque: 0.8-1.2 N.m EN 60947-1
• Cad Overall Width: 30 mm
• Device Composition: fixing collar || body
• Cad Overall Depth: 32 mm
• Shape Of Screw Head: cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1710010EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1710010EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: BV || GL || UL || LROS (Lloyds register of shipping) || DNV || CSA
• Ambient Air Temperature For Operation: -40-70 °C
• Standards: EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
• Shock Resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
• Ip Degree Of Protection: IP20 IEC 60529
• Ambient Air Temperature For Storage: -40-70 °C
• Protective Treatment: TH
